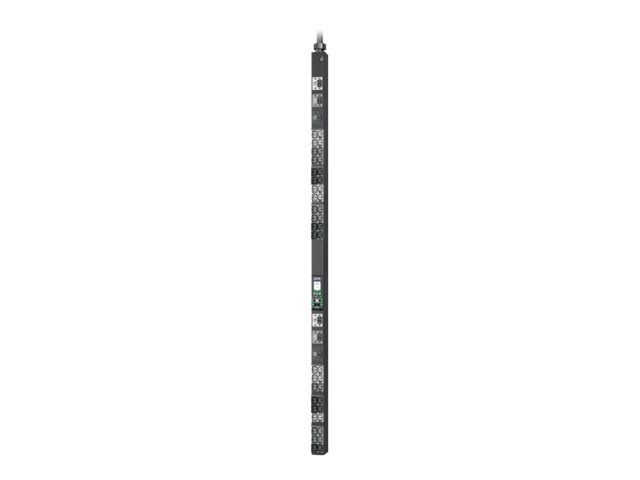

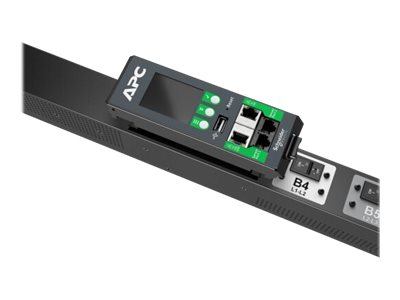

APC NetShelter Rack PDU Advanced
MSRP$5,560.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
APC NetShelter Rack PDU Advanced
- Power distribution unit (rack-mountable)
- switched metered outlet
- AC 208 V
- 14.4 kW
- 14400 VA
- 3-phase
- Ethernet 10/100/1000
- input: CS8365C
- output connectors: 42 (21 x IEC 60320 C13/C15, 21 x IEC 60320 C13/C15/C19/C21)
- 0U
- 1.8 m cord
- black
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $5,560.00 |
| Mfr Part #: | APDU10451SM |
| SHI Part #: | 44449666 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | APC NetShelter Rack PDU Advanced - Power distribution unit (rack-mountable) - switched metered outlet - AC 208 V - 14.4 kW - 14400 VA - 3-phase - Ethernet 10/100/1000 - input: CS8365C - output connectors: 42 (21 x IEC 60320 C13/C15, 21 x IEC 60320 C13/C15/C19/C21) - 0U - 1.8 m cord - black |
| Manufacturer | APC by Schneider Electric |
| MSRP | $5,560.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.5 cm |
| Dimensions & Weight / Height | 178 cm |
| Dimensions & Weight / Weight | 11.1 kg |
| Dimensions & Weight / Width | 5.6 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface | Ethernet 10/100/1000 |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 42 |
| Power Device / Power Capacity (VA) | 14400 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 7.5 cm |
| Height | 178 cm |
| Weight | 11.1 kg |
| Width | 5.6 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 13.2 cm |
| Shipping Height | 198 cm |
| Shipping Weight | 14.1 kg |
| Shipping Width | 26.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -5 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 1.8 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 3 years |
| Miscellaneous | |
| Cables Included | Power cable 1.8 m |
| Compliant Standards | EN 62368-1, UL 62368-1, UKCA, FCC Part 15 Subpart B, CSA C22.2 No. 62368-1 |
| Features | Vertical orientation, LCD display, overload protection |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power CS8365C |
| Input Voltage | AC 208 V |
| Input Wiring | 3-phase |
| Max Electric Current | 50 A |
| Output Voltage | AC 208 V |
| Power Capacity | 14.4 kW / 14400 VA |
| Power Output Connectors Details |
|
