Hanwha Vision WiseNet X XNO-9083R
MSRP$1,950.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

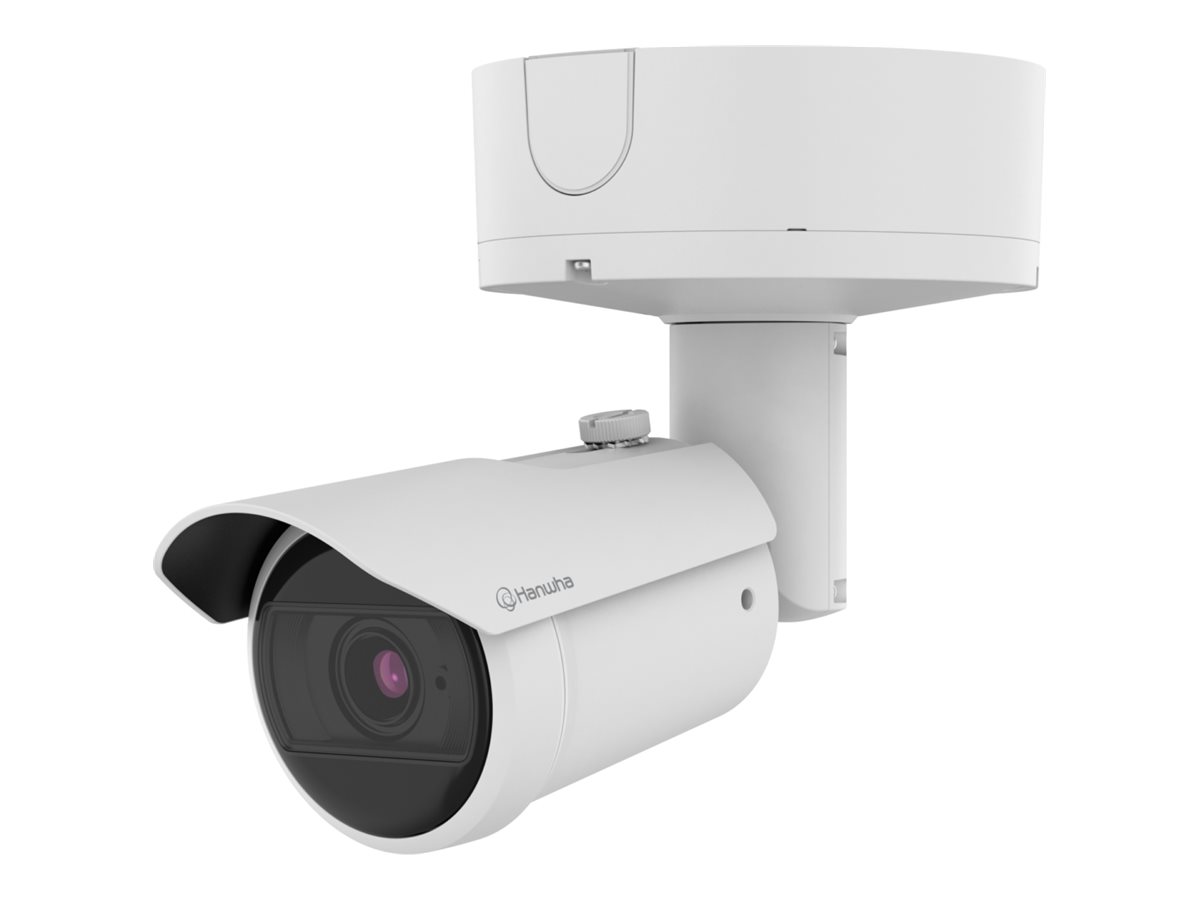

Hanwha Vision WiseNet X XNO-9083R
- Network surveillance camera
- bullet
- color (Day&Night)
- 8 MP
- 3840 x 2160
- auto iris
- vari-focal
- audio
- GbE
- USB
- H.264, H.265, MJPEG
- DC 12 V / PoE Plus Class 4
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,950.00 |
| Mfr Part #: | XNO-9083R |
| SHI Part #: | 44401255 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet X XNO-9083R - Network surveillance camera - bullet - color (Day&Night) - 8 MP - 3840 x 2160 - auto iris - vari-focal - audio - GbE - USB - H.264, H.265, MJPEG - DC 12 V / PoE Plus Class 4 |
| Manufacturer | HANWHA VISION |
| MSRP | $1,950.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 29.84 cm |
| Dimensions & Weight / Height | 9.34 cm |
| Dimensions & Weight / Weight | 2.2 kg |
| Dimensions & Weight / Width | 9.34 cm |
| Header / Brand |
|
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 3840 x 2160, 3328 x 1872, 3072 x 1728, 2592 x 1944, 2688 x 1520, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Digital Video Format | H.264, H.265, MJPEG |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | Extreme Wide Dynamic Range (E-WDR), built-in gyroscope, AI Analytics, Object Detection, Person Detection, vehicle type classification, license plate detection, Face Recognition, Virtual Line detection, appearing / disappearing detection, Audio Detection, Defocus Detection, direction detection, entrance / exit detection, intrusion detection, loitering detection, shock detection, sound classification, tamper-detection, 360° rotation, Backlight Compensation (BLC), Highlight Compensation (HLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), WiseNR II, Defog, Privacy Mask Function, auto gain control, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Lens Distortion Compensation (LDC), Hallway View, reverse function (flip and mirror), people counting, vehicle counting, queue management, Heat Map, Event Notification, network disconnection trigger, notification picture to E-mail, notification picture to FTP, Handover, WiseStream III support, 802.1x authentication, Constant Bitrate (CBR), digest authentication, firmware encryption, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, signed firmware, Unicast Streaming, Variable Bitrate (VBR), TPM module, 2 microSD card slots, aluminum enclosure |
| Flash Memory | 512 MB |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 50 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 3840 x 2160 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 4 GB |
| Type | Color - Day&Night - fixed |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -50 °C |
| Relative Humidity (operating) | 0 - 100% (condensing) |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.711 u-law, G.726, ADPCM, AAC-LC |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 29.84 cm |
| Device Type | Network surveillance camera |
| Form Factor | Bullet |
| Height | 9.34 cm |
| Weight | 2.2 kg |
| Width | 9.34 cm |
| Image Sensor | |
| Type | 8 MP CMOS 1/1.8" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Computer Interface | USB |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, SRTP, EAP |
| Lens Construction | |
| Diagonal Field of View (degree) | 54 - 138 |
| Focal Length | 4.4 mm - 9.3 mm |
| Focus Adjustment | Manual, motorized |
| Horizontal Field of View (degree) | 47 - 113 |
| Lens Iris | F/1.3-2.15 auto iris (P-Iris) |
| Min Focus Distance | 50 cm |
| Optical Zoom | 2.1 x |
| Type | Vari-focal |
| Vertical Field of View (degree) | 26 - 58 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | IP66, IP67, NEMA Type 4X, IK10, FIPS 140-2 Level 2, IEEE 802.1x, IEEE 802.3at, FCC 47 CFR Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA, EN 50130-4, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, VCCI-CISPR 32 Class A, AS/NZS CISPR 32 Class A, KS C 9832 Class A, UL 62368-1, CAN/CSA 62368-1, IEC/EN 63000, NEMA 250 Type 4X |
| Included Accessories | Mounting kit, sunshield |
| Panning | |
| Range (degree) | 0 to 360 |
| Power | |
| Power Device | 22.5 Watt |
| Power Requirements | DC 12 V / PoE Plus Class 4 |
| Tilting | |
| Range (degree) | 0 to 90 |
