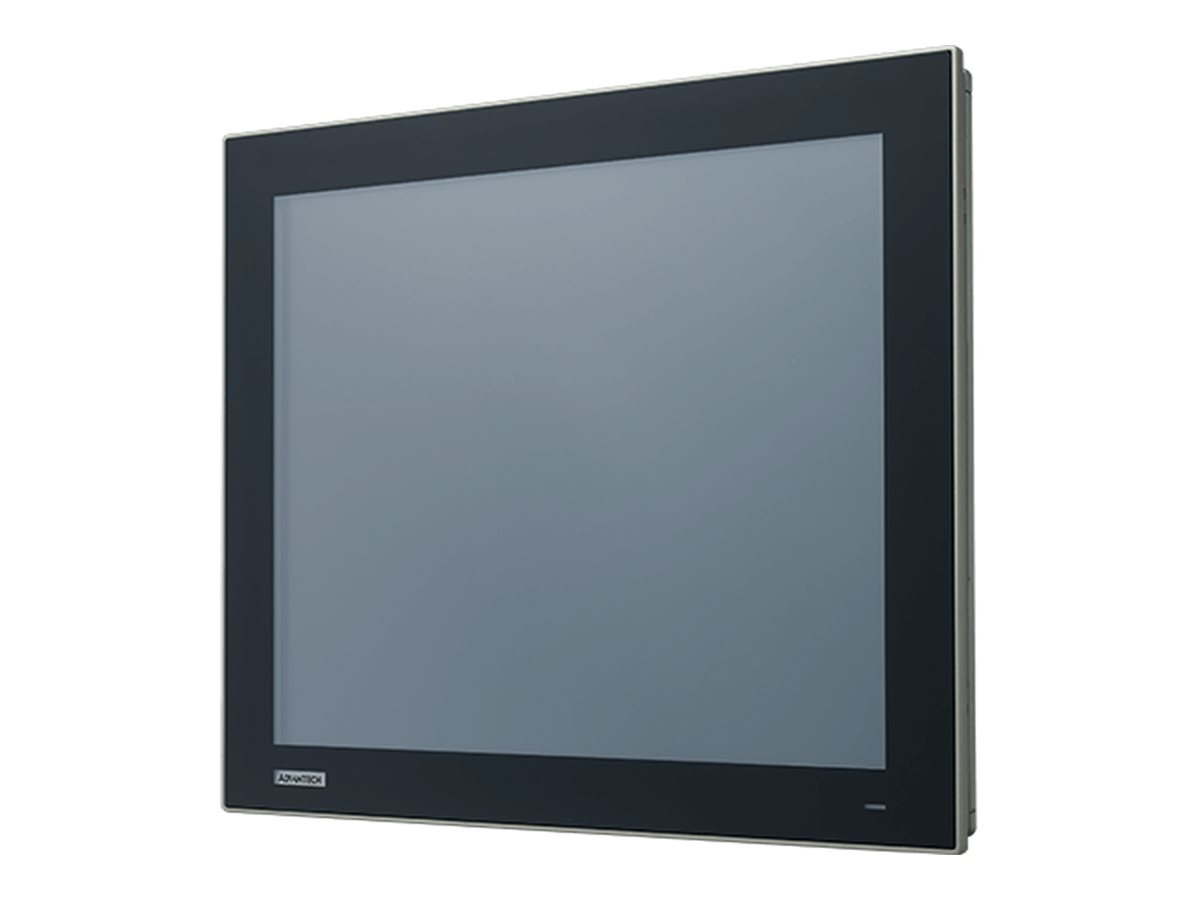

19 SXGA IND. MONITOR, W/RESISTIVE TS(24 VDC
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
19 SXGA IND. MONITOR, W/RESISTIVE TS(24 VDC
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | FPM-219-R9AE |
| SHI Part #: | 44259044 |
| Category: | Touch screen monitors |
| UNSPSC: | 43211903 |
| Manufacturer: | B+B SmartWorx |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Touch screen monitors |
| Description | 19 SXGA IND. MONITOR, W/RESISTIVE TS(24 VDC |
| Manufacturer | B+B SmartWorx |
| MSRP | $1,135.00 |
| UNSPSC | 43211903 |
| Main Specifications | |
| ABC Code | B |
| Height | 22.00 |
| Length | 23.00 |
| One Source Flag | NNN |
| Serialized Flag | Y |
| SKU Created Date | 211215 |
| Width | 7.00 |
| Connectivity | |
| Interfaces |
|
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Backlight Technology | LED backlight |
| Brightness | 350 cd/m² |
| Color Support | 16.7 million colors |
| Contrast Ratio | 1000:1 |
| Diagonal Size | 19" |
| Dimensions (WxDxH) | 45.4 cm x 5.15 cm x 37.98 cm |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Features | Anti-glare, tempered glass, 5-Wire Resistive Touch Screen Technology, die-cast aluminum frame, IP66 front bezel, die-cast magnesium alloy enclosure, 75% light transmission |
| Horizontal Viewing Angle | 170 |
| Native Resolution | 1280 x 1024 |
| Vertical Viewing Angle | 160 |
| Weight | 6.2 kg |
| Input | |
| Movement Detection Technology | Resistive |
| Type | Touchscreen - touchscreen |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Mechanical | |
| VESA Mounting Interface | 75 x 75 mm |
| Miscellaneous | |
| Backlight Life | 70,000 hours |
| Compliant Standards | FCC Class A certified, UL, BSMI, CB, CCC, IP66 front |
| Features | Wall mountable, lockable, stand, panel mount |
| Power | |
| Input Voltage | AC 100-240 V |
| Power Consumption (Max) | 15.53 Watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows CE, Linux, Microsoft Windows XP Embedded, Microsoft Windows XP / Vista / 7 / 8 / 10 |
