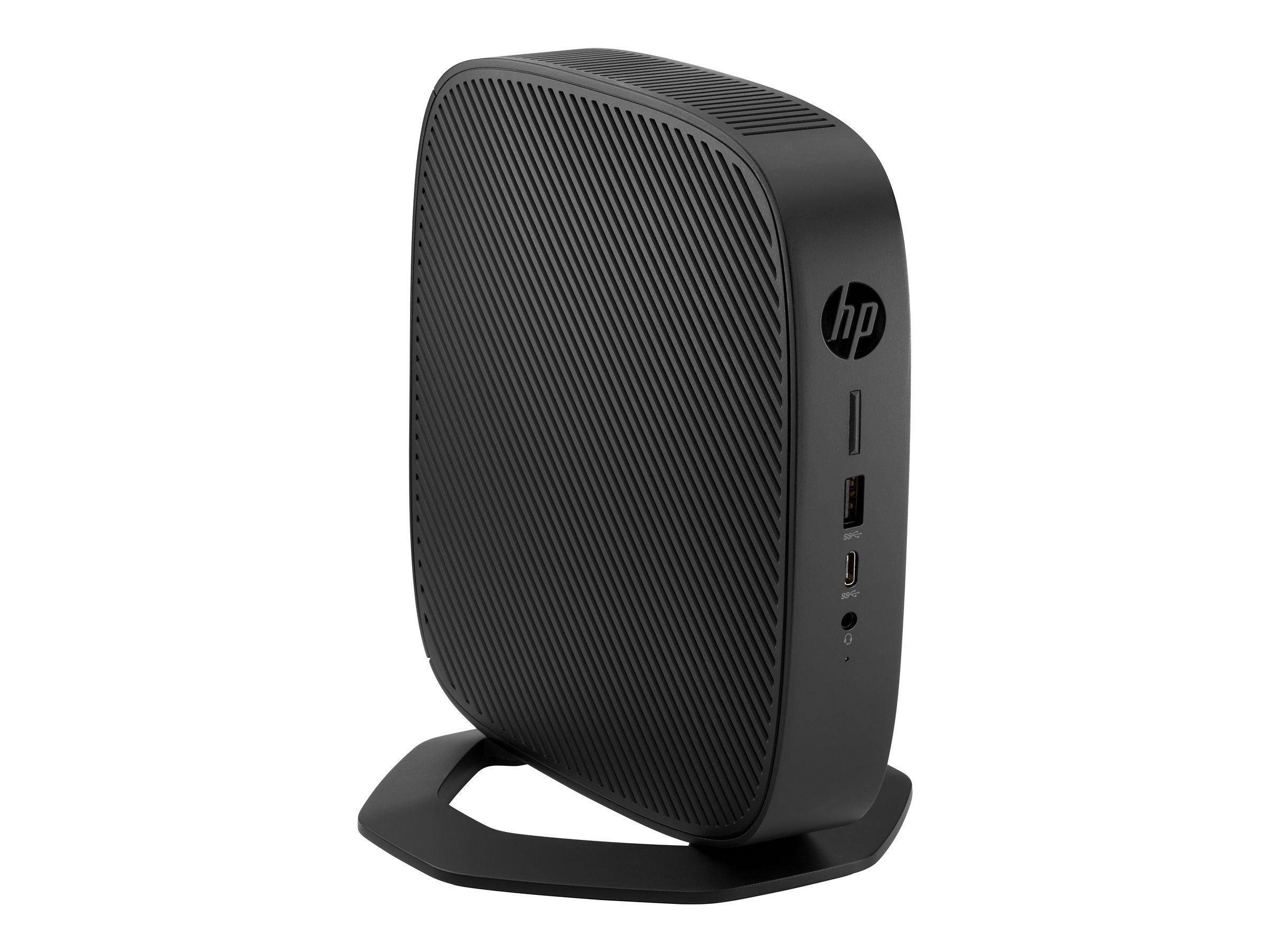

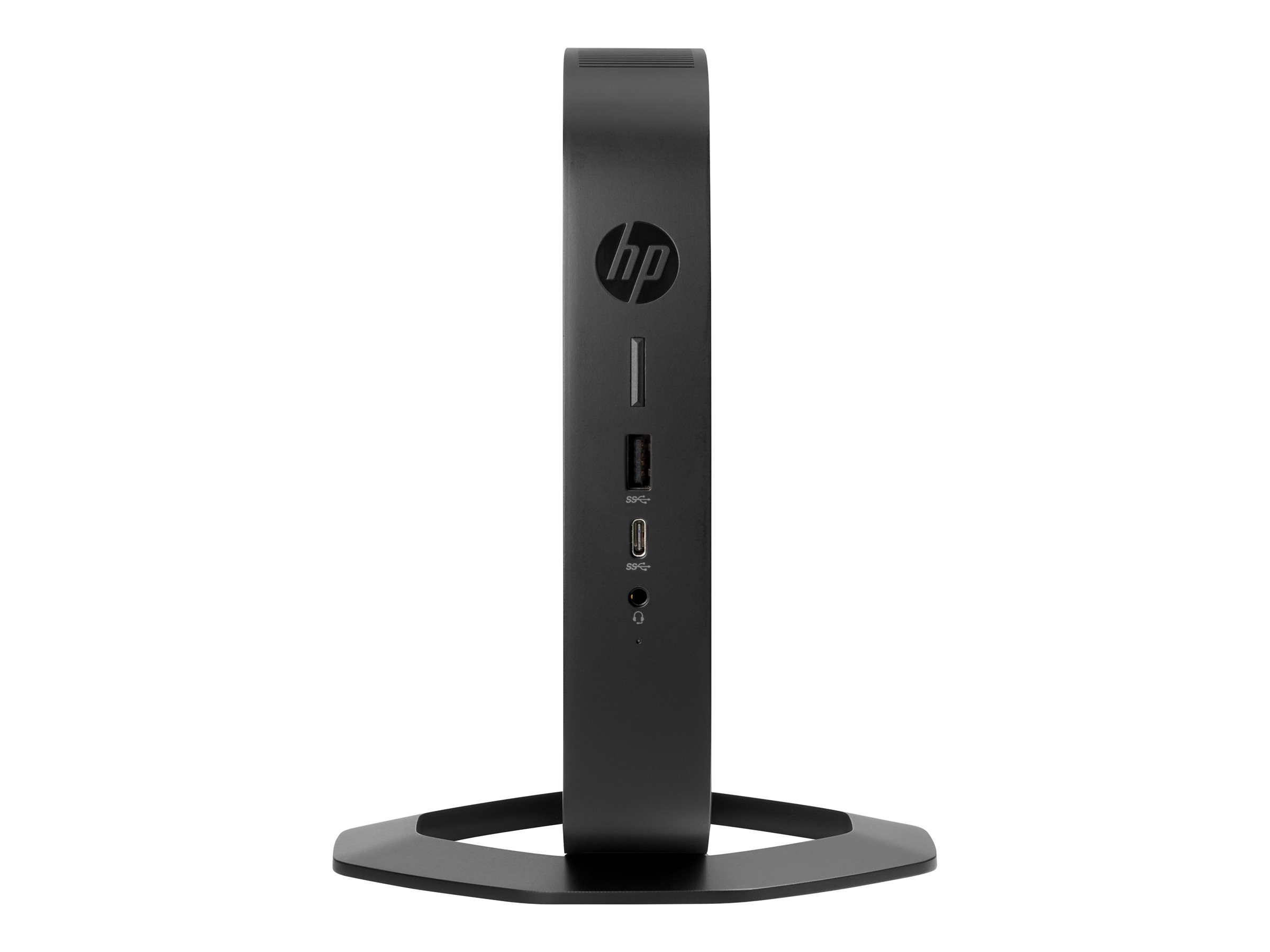

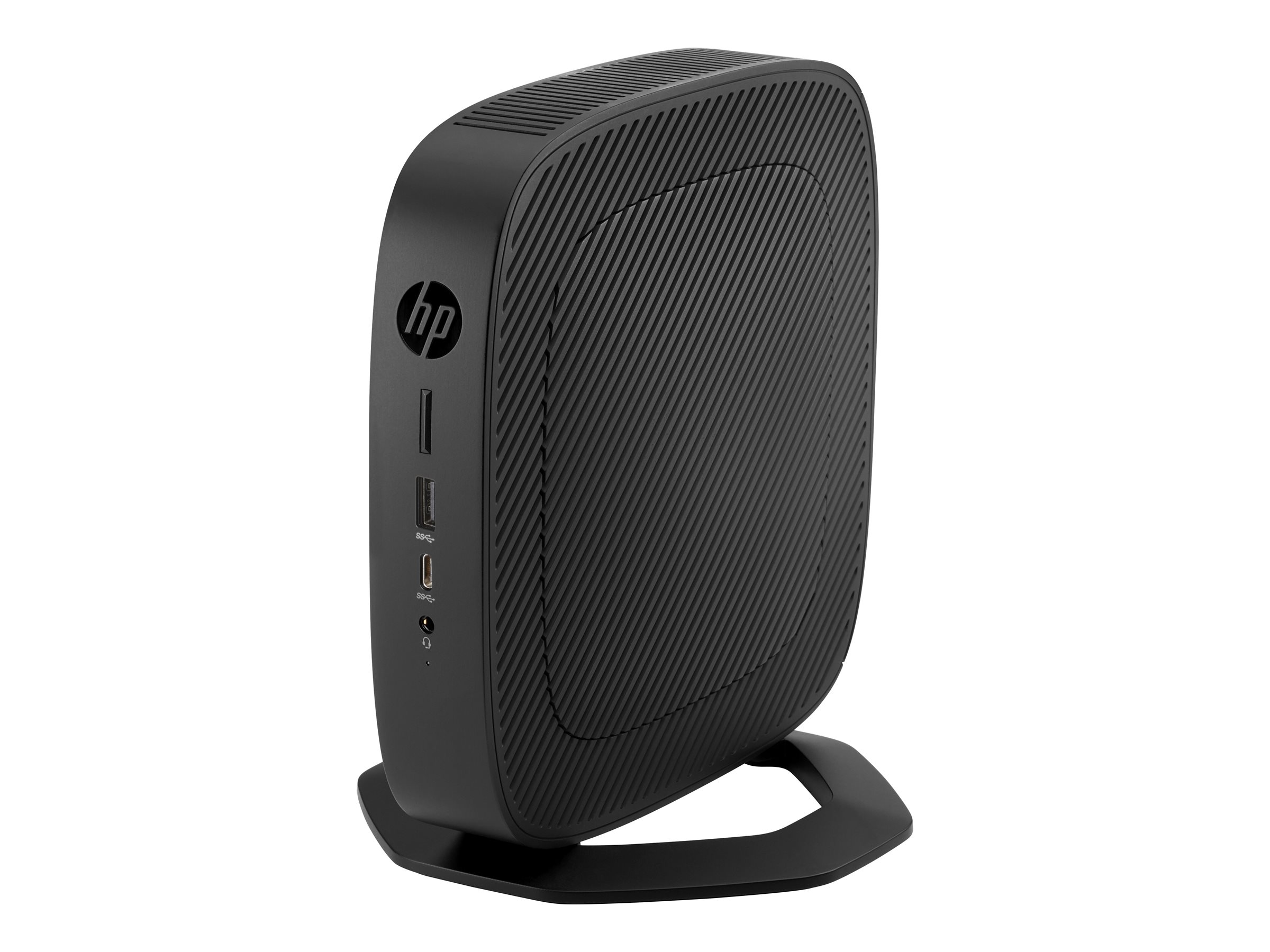

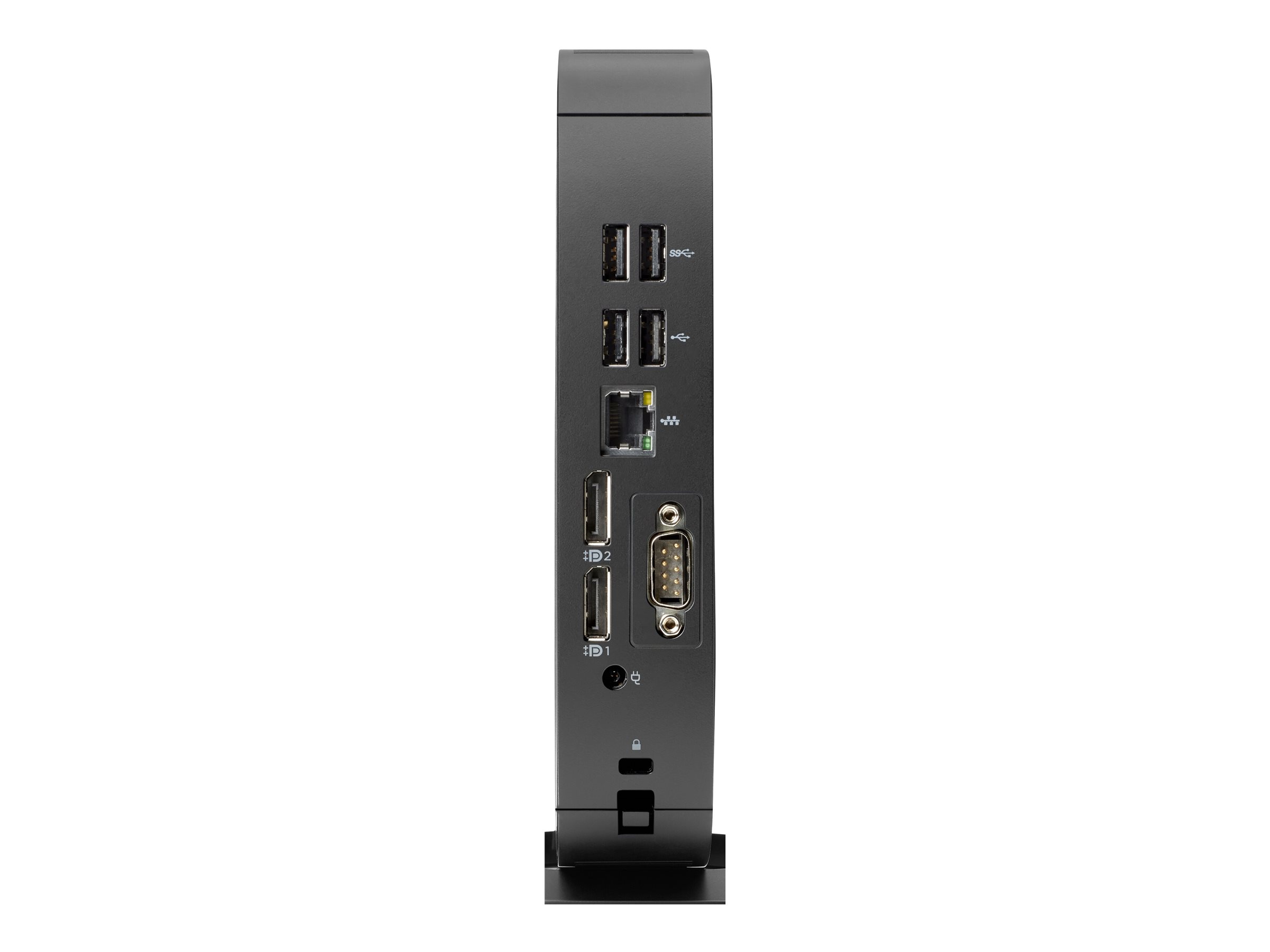

HP t540 - Thin client
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HP t540 - Thin client
- USFF
- 1 x Ryzen Embedded R1305G / up to 2.8 GHz
- RAM 4 GB
- flash 32 GB
- eMMC
- Radeon Vega 3
- Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6)
- HP Smart Zero Core
- monitor: none
- keyboard: US
- Smart Buy
- TAA Compliant
| Additional Details | |
|---|---|
| Mfr Part #: | 4Y1E0UT#ABA |
| SHI Part #: | 43809969 |
| Category: | Thin client or diskless workstations |
| UNSPSC: | 43211506 |
| Manufacturer: | HP, Inc. |
| Product Type: | Hardware |
Audio/Video Cables
- DisplayPort (M) to DisplayPort (M)
- 2 m
- for Elite t655; Presence Small Space Solution with Zoom Rooms; Pro t550
- 19 cm
- for Elite 600 G9, 800 G9, t655; EliteDesk 80X G8; Pro t550; ProOne 440 G9; Workstation Z2 G9
Headsets
- headset
- on-ear
- wired
- USB-A
- black
- Certified for Microsoft Teams
| General Information | |
|---|---|
| Category | Thin client or diskless workstations |
| Description | HP t540 - Thin client - USFF - 1 x Ryzen Embedded R1305G / up to 2.8 GHz - RAM 4 GB - flash 32 GB - eMMC - Radeon Vega 3 - Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) - HP Smart Zero Core - monitor: none - keyboard: US - Smart Buy - TAA Compliant |
| Manufacturer | HP, Inc. |
| UNSPSC | 43211506 |
| Main Specifications | |
| Chassis / Form Factor | Ultra small form factor |
| Dimensions & Weight / Depth | 20 cm |
| Dimensions & Weight / Height | 20 cm |
| Dimensions & Weight / Weight | 1.4 kg |
| Dimensions & Weight / Width | 3.5 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 32 GB |
| Header / Brand | HP |
| Header / Country Kits | United States |
| Header / Localization | English |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | HP Smart Zero Core |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 1.5 GHz |
| Processor / Manufacturer | AMD |
| Processor / Number of Cores | Dual-Core |
| Processor / Processor Number | R1305G |
| Processor / Type | Ryzen Embedded |
| RAM / Data Integrity Check | Non-ECC |
| RAM / Form Factor | SO-DIMM 260-pin |
| RAM / Memory Speed | 2400 MHz |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 32 GB |
| System / Type | Thin client |
| Video Output / Graphics Processor | AMD Radeon Vega 3 |
| Cache Memory | |
| Cache Per Processor | 4 MB |
| Installed Size | L3 cache - 4 MB |
| Dimensions & Weight | |
| Depth | 20 cm |
| Height | 20 cm |
| Weight | 1.4 kg |
| Width | 3.5 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 2.879 kg |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| Slots | 1 (total) / 0 (free) x M.2 Card (for internal storage) |
| General | |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Product Form Factor | USFF |
| Type | Thin client |
| Graphics Controller | |
| Graphics Processor | AMD Radeon Vega 3 |
| Max Monitors Supported | 2 |
| Video Interfaces | VGA, DisplayPort |
| Hard Drive | |
| Capacity | 1 x 32 GB |
| Features | eMMC |
| Type | Flash - M.2 |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Interface | USB |
| Keyboard Name | HP USB Business Slim Keyboard |
| Localization & Layout | US |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, UL, BSMI, GS, CB, CCC, ICES Class B, WEEE, KCC Class B, AS/NZS, ERP, CECP, RoHS2, VCCI Class B, CP65, CISPR Class B, SEPA, low halogen, HP GSE, EN, CNS, IEEE 1680.1 |
| Manufacturer Selling Program | HP Smart Buy |
| Security Slot Type | Kensington security slot |
| TAA Compliant | Yes |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Interface | USB |
| Technology | Optical |
| Networking | |
| Compliant Standards | IEEE 802.1x |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) |
| Ethernet Controller | Realtek RTL8111HSH |
| Features | Dual stream (2x2) |
| Wireless LAN Supported | Yes |
| Wireless NIC | Realtek RTL8852AE |
| Operating System / Software | |
| OS Provided | HP Smart Zero Core English |
| Software | Microsoft Internet Explorer, Citrix ICA, Microsoft RDP, Microsoft Windows Media Player, HP Device Manager, LogOn Manager, Windows Defender, VMware Horizon View, Citrix HDX, Microsoft RemoteFX, HP ThinUpdate, HP Easy Shell, Microsoft SCCM/EDM-agent, HP USB Port Manager, HP Write Manager, Microsoft Bitlocker Encryption, Microsoft Unified Write Filter |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Power Device Name | HP Smart AC Adapter |
| Power Provided | 45 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Processor / Chipset | |
| Clock Speed | 1.5 GHz |
| CPU | AMD Ryzen Embedded R1305G |
| CPU Qty | 1 |
| CPU Upgradability | Not upgradable |
| Max CPU Qty | 1 |
| Max Turbo Speed | 2.8 GHz |
| Number of Cores | Dual-Core |
| RAM | |
| Configuration Features | 1 x 4 GB |
| Effective Memory Speed | 2400 MHz |
| Form Factor | SO-DIMM 260-pin |
| Installed Size | 4 GB (installed) / 16 GB (max) |
| Rated Memory Speed | 2400 MHz |
| Slots | 1 (total) / 0 (empty) |
| Technology | DDR4 SDRAM - non-ECC |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| EPEAT Compliant | EPEAT Silver |
| TCO Certified | TCO Certified Desktops 9 |
