Hanwha Vision WiseNet WAVE WRN-810S
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

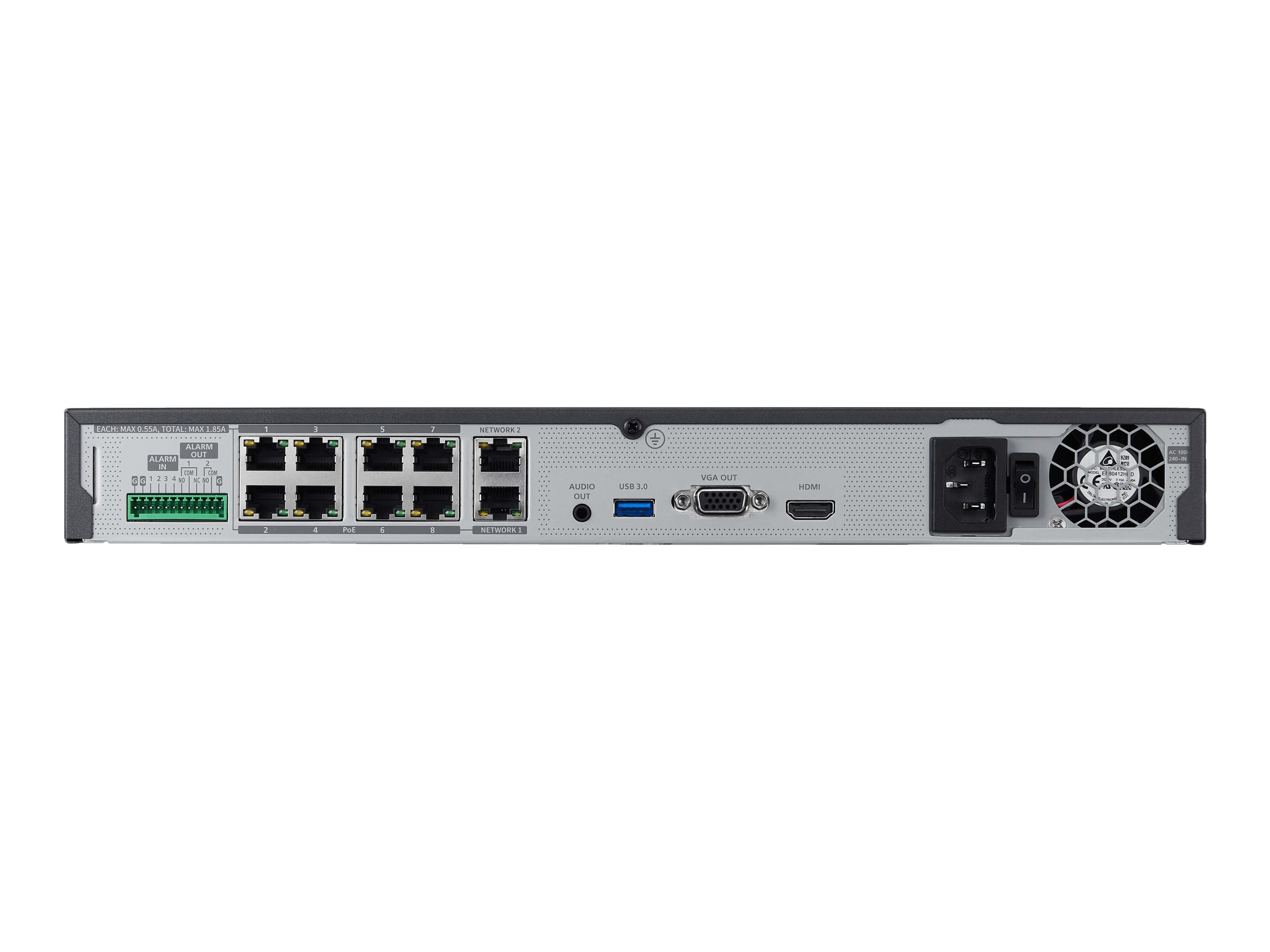

Hanwha Vision WiseNet WAVE WRN-810S
- NVR 4 TB
- networked
- 1U
- rack-mountable
| Additional Details | |
|---|---|
| Mfr Part #: | WRN-810S-4TB |
| SHI Part #: | 43074963 |
| Category: | Surveillance video or audio recorders |
| UNSPSC: | 46171621 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Surveillance video or audio recorders |
| Description | Hanwha Vision WiseNet WAVE WRN-810S - NVR 4 TB - networked - 1U - rack-mountable |
| Manufacturer | HANWHA VISION |
| UNSPSC | 46171621 |
| Main Specifications | |
| Dimensions & Weight / Depth | 32.43 cm |
| Dimensions & Weight / Height | 5.07 cm |
| Dimensions & Weight / Width | 37 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Connections | |
| Alarm Ports | Alarm input x 4, alarm output x 2 |
| Audio Output Ports | Mini-phone 3.5 mm x 1 |
| Network Port | 10/100Base-TX x 8 (PoE+) / 1000Base-T x 2 |
| Other Ports | USB 2.0 x 2, USB 3.0 x 1 |
| Video Output Ports | HDMI x 1, VGA x 1 |
| Dimensions & Weight | |
| Depth | 32.43 cm |
| Height | 5.07 cm |
| Width | 37 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 85% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Color | Black |
| Compliant Standards | UL, cUL, FCC, IEEE 802.3at |
| Device Type | NVR - rack-mountable - 1U |
| OS Provided | Ubuntu Linux 18.04 |
| Package Content | Mouse, rack mount brackets |
| Software Included (Y) | 4x Wisenet WAVE Professional license |
| Hard Drive | |
| Capacity | 4 TB |
| Interface | Serial ATA |
| Quantity Supported | 2 |
| Supported Max Total Capacity | 12 TB |
| Networking | |
| Features | ONVIF support |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Power | |
| Voltage | 120 / 230 V |
| Security DVR | |
| Features | eMMC SSD OS system drive |
| Networked | Yes |
