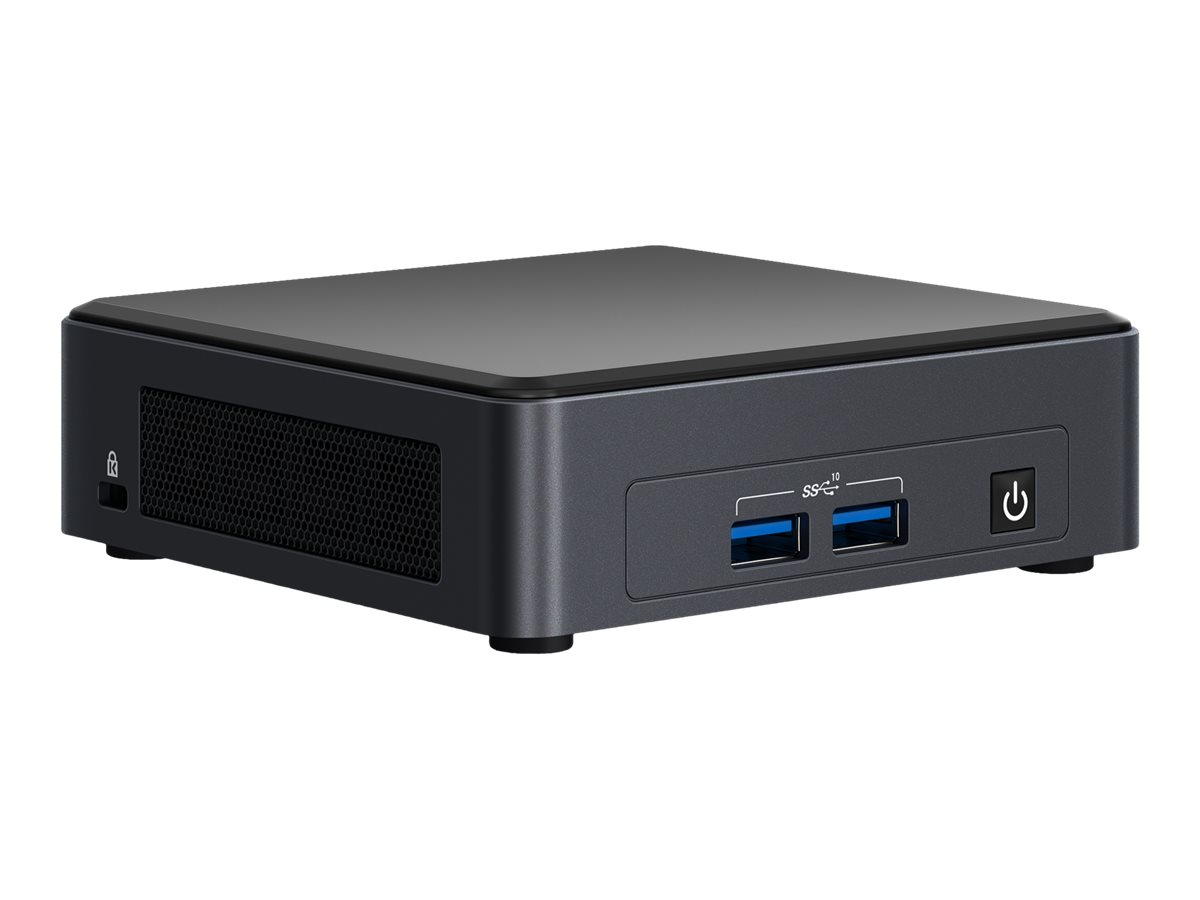

Intel Next Unit of Computing Kit 11 Pro
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Intel Next Unit of Computing Kit 11 Pro
- NUC11TNKv7
- Mini PC
- Core i7 1185G7 / 3 GHz
- RAM 0 GB
- no HDD
- Iris Xe Graphics
- GigE, 2.5 GigE
- WLAN: 802.11a/b/g/n/ac/ax, Bluetooth 5.1
- monitor: none
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | BNUC11TNKV70001 |
| SHI Part #: | 41821077 |
| Category: | Personal computers |
| UNSPSC: | 43211508 |
| Manufacturer: | Intel |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Personal computers |
| Description | Intel Next Unit of Computing Kit 11 Pro - NUC11TNKv7 - Mini PC - Core i7 1185G7 / 3 GHz - RAM 0 GB - no HDD - Iris Xe Graphics - GigE, 2.5 GigE - WLAN: 802.11a/b/g/n/ac/ax, Bluetooth 5.1 - monitor: none |
| Manufacturer | Intel |
| MSRP | $0.00 |
| UNSPSC | 43211508 |
| Main Specifications | |
| Chassis / Form Factor | Ultra small form factor |
| Dimensions & Weight / Depth | 11.2 cm |
| Dimensions & Weight / Height | 3.7 cm |
| Dimensions & Weight / Width | 11.7 cm |
| Display / Type | None. |
| Header / Brand | Intel |
| Header / Country Kits | United States |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 3 GHz |
| Processor / Generation | 11 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | Quad-Core |
| Processor / Processor Number | I7-1185G7 |
| Processor / Type | Core i7 |
| RAM / Form Factor | SO-DIMM 260-pin |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 0 GB |
| System / Type | Personal computer |
| Video Output / Graphics Processor | Intel Iris Xe Graphics |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Sound Output Mode | 7.1 channel surround |
| Cache Memory | |
| Cache Per Processor | 12 MB |
| Installed Size | 12 MB |
| Dimensions & Weight | |
| Depth | 11.2 cm |
| Height | 3.7 cm |
| Width | 11.7 cm |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| Slots |
|
| General | |
| Localization | Region: United States |
| Product Form Factor | Mini PC |
| Type | Personal computer |
| Graphics Controller | |
| Graphics Processor | Intel Iris Xe Graphics |
| Max Monitors Supported | 4 |
| Video Interfaces | HDMI, USB-C |
| Hard Drive | |
| Type | No HDD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | BSMI, ICES-003, EN55024, FCC Part 15 B, FCC Part 15 C, RoHS, FCC Part 15 E, BSMI CNS 13438, REACH, EN 300.440, EN 300 328, EN 301 489-1, KN32, KN35, EN 301 893, IEC/EN/UL 60950-1, EN 55032, EN 301 489-3, IEC/EN/UL 62368-1, EN 301 489-17, ARPANSA, AS/NZS CISPR 32, VCCI 32 |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1as, IEEE 802.11n, IEEE 802.11ac, IEEE 802.1BR, IEEE 802.1Qav, IEEE 802.3bz, IEEE 802.11ax, Bluetooth 5.1, IEEE 802.1Qbv, IEEE 802.1Qbu |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, Bluetooth 5.0, 802.11ax, Bluetooth 5.1 |
| Ethernet Controller | Intel I225-LM |
| Ethernet Ports | 2.5 Gigabit Ethernet |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6 AX 201 |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Voltage Required | DC 19 V |
| Processor / Chipset | |
| Clock Speed | 3 GHz |
| CPU | Intel Core i7 (11th Gen) 1185G7 |
| CPU Qty | 1 |
| CPU Upgradability | Not upgradable |
| Max CPU Qty | 1 |
| Max Turbo Speed | 4.8 GHz |
| Number of Cores | Quad-Core |
| Processor Main Features | Hyper-Threading Technology, Intel Virtualization Technology, Intel Turbo Boost Technology 2, Intel 64 Technology, Intel AES New Instructions, Intel Virtualization Technology for Directed I/O, Intel Virtualization Technology with Extended Page Tables |
| RAM | |
| Features | Dual channel memory architecture |
| Form Factor | SO-DIMM 260-pin |
| Installed Size | 0 GB / 64 GB (max) |
| Rated Memory Speed | 3200 MHz |
| Slots | 2 (total) / 2 (empty) |
| Technology | DDR4 SDRAM |
| Storage Controller | |
| Controller Interface Type | SATA 6Gb/s / PCIe 3.0 x4 (NVMe) |
| Type | 1 x SATA/NVMe |
