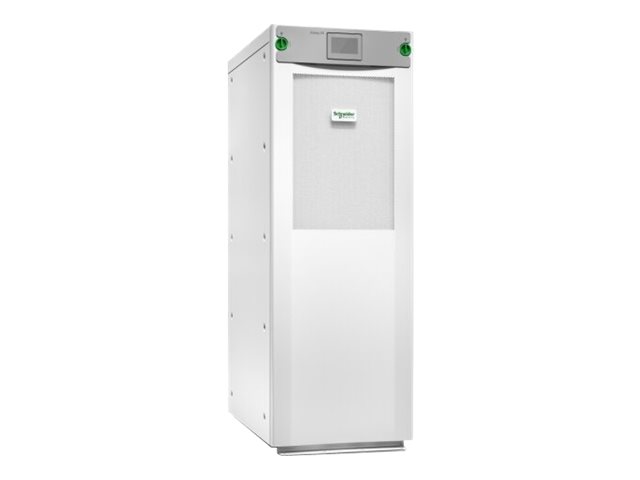

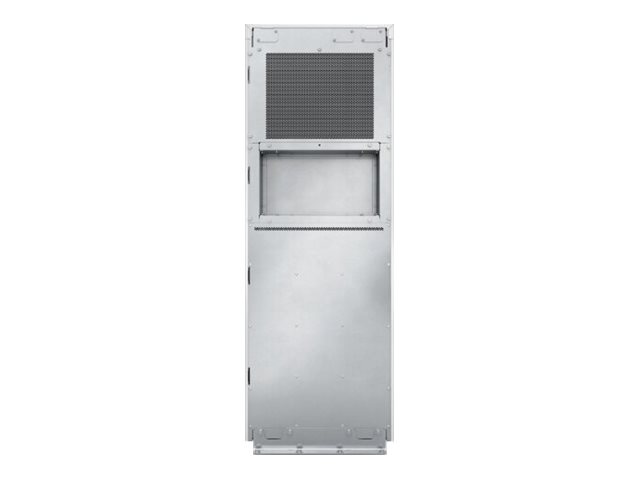

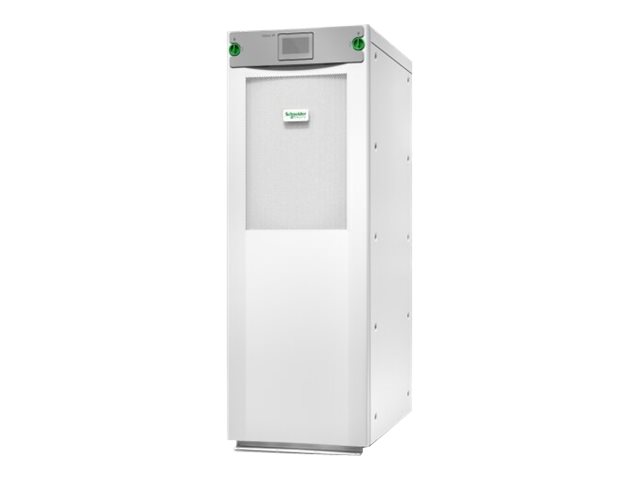

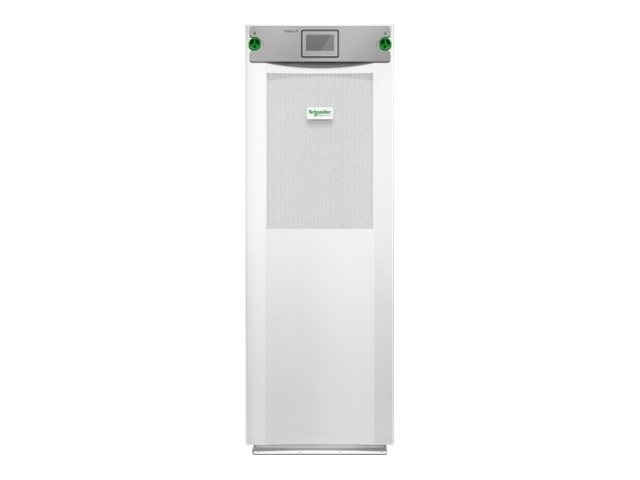

GALAXY VS UPS 25KW 208V WITH N+1 POWER MODULE FOR EXTERNAL BATTERIES, START-UP 5
MSRP$40,885.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
GALAXY VS UPS 25KW 208V WITH N+1 POWER MODULE FOR EXTERNAL BATTERIES, START-UP 5
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $40,885.00 |
| Mfr Part #: | GVSUPS25KRFS |
| SHI Part #: | 41795944 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | GALAXY VS UPS 25KW 208V WITH N+1 POWER MODULE FOR EXTERNAL BATTERIES, START-UP 5 |
| Manufacturer | APC by Schneider Electric |
| MSRP | $40,885.00 |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 84.7 cm |
| Dimensions & Weight / Height | 148.5 cm |
| Dimensions & Weight / Weight | 250 kg |
| Dimensions & Weight / Width | 52.1 cm |
| General / Subcategory | UPS |
| Header / Brand | Schneider |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 208 V |
| Product Type | UPS |
| Service & Support / Type | 1-year warranty |
| Battery | |
| Type | No battery |
| Dimensions & Weight | |
| Depth | 84.7 cm |
| Height | 148.5 cm |
| Weight | 250 kg |
| Width | 52.1 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 68 dBA |
| General | |
| Bundled Services | Start-Up Service 5X8 |
| Color | RAL 9003 |
| Device Type | UPS - external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year - on-site |
| Miscellaneous | |
| Compliant Standards | IEC 62040-1-1, IEC 62040-2, FCC Part 15 A, UL 924, IP21, UL 1778 5th edition, IEC 60721-4-2 level 2M2 |
| Features | Audible alarm, built-in static bypass, touch screen LCD display, visible alarm |
| Included Accessories | Dust filter |
| Power Device | |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 177 - 239 V |
| Input Wiring | 3-phase |
| Output Voltage | AC 208 V 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 25 kW |
| UPS Technology | On-line |
