HP Workstation Z2 Mini G5

Login for Price
HP Workstation Z2 Mini G5
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Mini
  • 1 x Core i5 10500 / up to 4.5 GHz
  • vPro
  • RAM 8 GB
  • SSD 256 GB
HP Workstation Z2 Mini G5
  • Mini
  • 1 x Core i5 10500 / up to 4.5 GHz
  • vPro
  • RAM 8 GB
  • SSD 256 GB
  • TLC
  • UHD Graphics 630
  • Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6)
  • Win 10 Pro 64-bit
  • monitor: none
  • keyboard: US
  • Smart Buy
  Additional Details
Mfr Part #: 329N2UT#ABA
SHI Part #: 41721985
Category: Workstation
UNSPSC: 43211515
Manufacturer: HP, Inc.
Product Type: Hardware

Audio/Video Cables

Z2 Power Cord Kit
Z2 Power Cord Kit
Login for Price
HP - DVI cable - DisplayPort (M) to DVI-D (F)
HP - DVI cable - DisplayPort (M) to DVI-D (F)
  • 19 cm
  • for Elite 600 G9, 800 G9, t655; EliteDesk 80X G8; Pro t550; ProOne 440 G9; Workstation Z2 G9
Login for Price

Control/Interface Boards

HP DisplayPort to VGA Adapter
HP DisplayPort to VGA Adapter
  • Video converter
  • DisplayPort
  • VGA
  • for Desktop Pro 300 G6, Pro A G3; Elite Slice G2; ENVY Curved 34; ProDesk 405 G6
Login for Price
HP Flex IO Card - 1GbE fiber LC single port
HP Flex IO Card - 1GbE fiber LC single port
  • for Workstation Z2 G9
Login for Price
General Information
CategoryWorkstation
DescriptionHP Workstation Z2 Mini G5 - Mini - 1 x Core i5 10500 / up to 4.5 GHz - vPro - RAM 8 GB - SSD 256 GB - TLC - UHD Graphics 630 - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6) - Win 10 Pro 64-bit - monitor: none - keyboard: US - Smart Buy
ManufacturerHP, Inc.
UNSPSC43211515
Main Specifications
Chassis / Form FactorUltra small form factor
Dimensions & Weight / Depth21.6 cm
Dimensions & Weight / Height5.8 cm
Dimensions & Weight / Weight2.1 kg
Dimensions & Weight / Width21.6 cm
Display / TypeNone.
Hard Drive / Capacity256 GB
Header / BrandHP
Header / Country KitsUnited States
Header / LocalizationEnglish
Mainboard / Chipset TypeIntel W480
Mainboard / Processor SocketLGA1200 Socket
Miscellaneous / Product Color
  • Black
  • Gray
Networking / Data Link Protocol
  • 802.11ax
  • Bluetooth 5.0
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Networking / Wireless LAN SupportedYes
Networking / Wireless Protocol
  • 802.11a/b/g/n/ac/ax
  • Bluetooth 5.0
Optical Storage / Drive TypeNo optical drive
Optical Storage / TypeNone
OS Provided / TypeWindows 10 Pro 64-bit Edition
Packaged Quantity1
Processor / Clock Speed3.1 GHz
Processor / Generation10
Processor / ManufacturerIntel
Processor / Number of Cores6-core
Processor / Processor NumberI5-10500
Processor / TypeCore i5
RAM / Data Integrity CheckNon-ECC
RAM / Form FactorSO-DIMM 260-pin
RAM / Memory Speed2666 MHz
RAM / TechnologyDDR4 SDRAM
Service & Support / Type3-year warranty
System / Hard Drive Capacity256 GB
System / Platform TechnologyIntel vPro Platform
System / TypeWorkstation
Video Output / Graphics ProcessorIntel UHD Graphics 630
Audio Output
Compliant StandardsHigh Definition Audio
Cache Memory
Cache Per Processor12 MB
Installed Size12 MB
Dimensions & Weight
Depth21.6 cm
Height5.8 cm
Weight2.1 kg
Width21.6 cm
Dimensions & Weight (Shipping)
Shipping Depth49.9 cm
Shipping Height29.8 cm
Shipping Width17 cm
Environmental Parameters
Humidity Range Operating10 - 85% (non-condensing)
Max Operating Temperature35 °C
Min Operating Temperature5 °C
Expansion / Connectivity
Interfaces

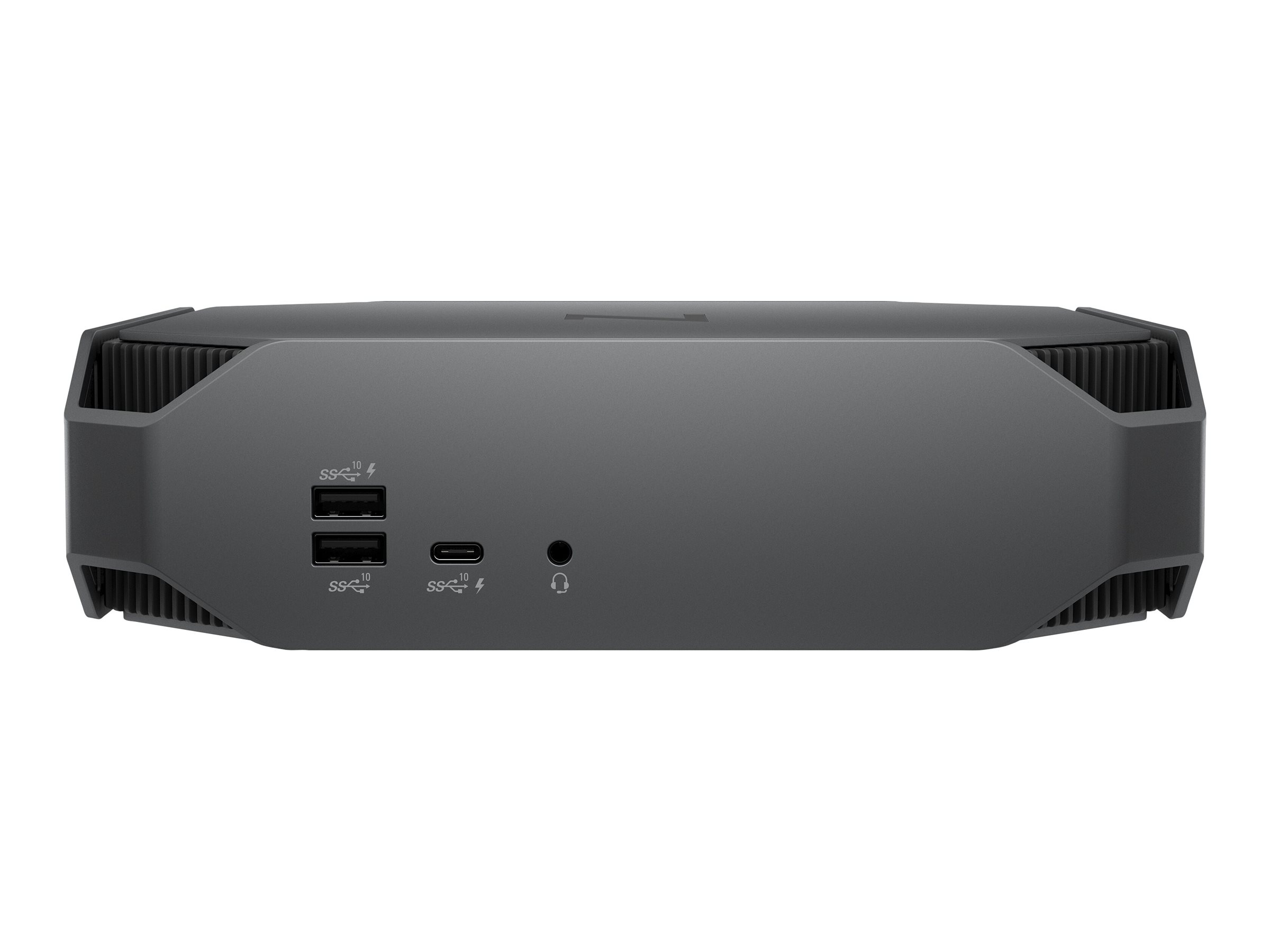

  • 4 x USB 3.1 Gen 2 (2 rear, 2 side) (one of them is charging)
  • 1 x headphones/microphone (1 side)
  • 1 x LAN (Gigabit Ethernet)
  • 2 x DisplayPort
  • 1 x USB-C 3.1 Gen 2 (1 side) (charging)
Slots
  • 1 (total) / 0 (free) x M.2 Card - 2230 (x1 mode)
  • 2 M.2 Card - 2280 (x4 mode)
  • 1 (total) / 1 (free) x MXM (x16 mode)
General
Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip
LocalizationLanguage: English / region: United States
Platform TechnologyIntel vPro Platform
Product Form FactorMini
TypeWorkstation
Graphics Controller
Graphics ProcessorIntel UHD Graphics 630
Video InterfacesDisplayPort
Hard Drive
Capacity1 x 256 GB
FeaturesTriple-level cell (TLC)
TypeSSD
Input Device
TypeMouse, keyboard
Keyboard
InterfaceUSB
Keyboard NameHP 320K
Localization & LayoutUS
Manufacturer Warranty
Service & SupportLimited warranty - parts and labor - 3 years - on-site
Miscellaneous
Compliant StandardsACPI, RoHS, WEEE, Common Criteria EAL4+, CECP, low halogen
Manufacturer Selling ProgramHP Smart Buy
Security Slot TypeKensington security slot
Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately)
Monitor
Monitor TypeNone.
Mouse
Mouse NameHP 320M
Networking
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1as, IEEE 802.3az
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
Ethernet ControllerIntel I219-LM
FeaturesWake on LAN (WoL), PXE support, auto-uplink (auto MDI/MDI-X), dual stream (2x2)
Wireless LAN SupportedYes
Wireless NICIntel Wi-Fi 6 AX 201
Operating System / Software
OS ProvidedWindows 10 Pro 64-bit Edition English
SoftwareHP ZCentral Remote Boost 2020
Optical Storage
TypeNo optical drive
Power
Device TypePower adapter
Efficiency88%
Power Provided180 Watt
Voltage RequiredAC 120/230 V (50/60 Hz)
Processor / Chipset
Chipset TypeIntel W480
Clock Speed3.1 GHz
CPUIntel Core i5 (10th Gen) 10500
CPU Qty1
CPU SocketLGA1200 Socket
CPU UpgradabilityUpgradable
Max CPU Qty1
Max Turbo Speed4.5 GHz
Number of Cores6-core
Processor Main FeaturesHyper-Threading Technology, Intel Turbo Boost Technology 2
RAM
Configuration Features1 x 8 GB
Effective Memory Speed2666 MHz
FeaturesDual channel memory architecture
Form FactorSO-DIMM 260-pin
Installed Size8 GB (installed) / 64 GB (max)
Rated Memory Speed3200 MHz
Slots2 (total) / 1 (empty)
TechnologyDDR4 SDRAM - non-ECC
Storage Controller
RAID LevelRAID 0, RAID 1
Type1 x SATA
Sustainability Information
EPEAT CompliantEPEAT Gold
