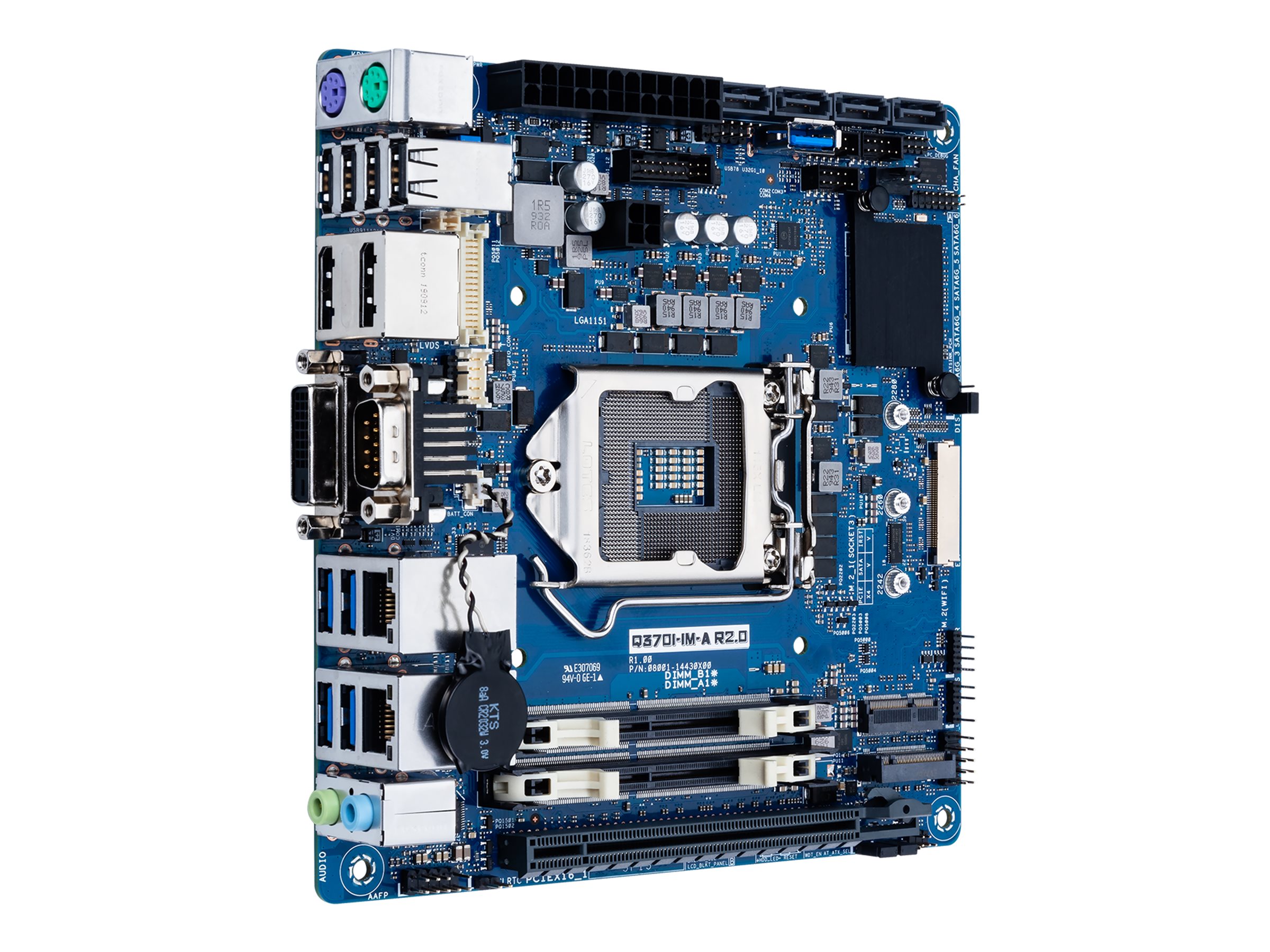

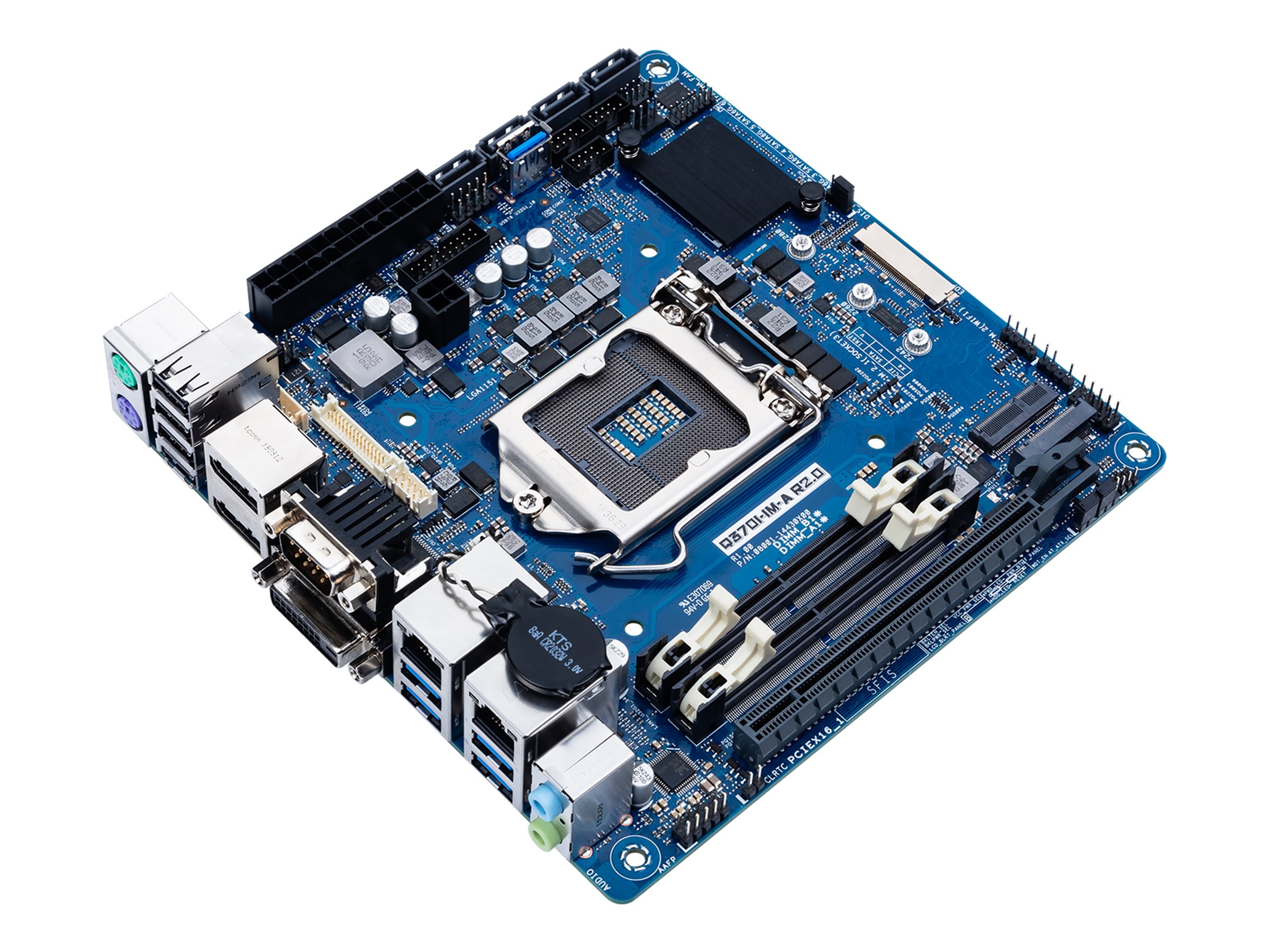

ASUS Q370I-IM-A R2.0
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ASUS Q370I-IM-A R2.0
- Motherboard
- mini ITX
- LGA1151 Socket
- Q370 Chipset
- USB 3.2 Gen 1
- 2 x Gigabit LAN
- onboard graphics (CPU required)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | Q370I-IM-A R2.0 |
| SHI Part #: | 41674134 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASUS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASUS Q370I-IM-A R2.0 - Motherboard - mini ITX - LGA1151 Socket - Q370 Chipset - USB 3.2 Gen 1 - 2 x Gigabit LAN - onboard graphics (CPU required) |
| Manufacturer | ASUS |
| MSRP | $266.00 |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 17 cm |
| Dimensions & Weight / Width | 17 cm |
| Header / Brand | ASUS |
| Mainboard / Chipset Type | Intel Q370 |
| Mainboard / Compatible Processors |
|
| Mainboard / Processor Socket | LGA1151 Socket |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Audio Codec | Realtek ALC887-VD2 |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, DC-in power connector |
| Storage Interfaces |
|
| Features | |
| Hardware Features | WatchDog Timer |
| General | |
| Chipset Type | Intel Q370 |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 (supports 9th and 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron, Maximum TDP 65 Watt) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1151 Socket |
| Product Type | Motherboard - mini ITX |
| LAN | |
| Network Controller | Intel I219LM / I211-AT |
| Network Interfaces | 2 x Gigabit Ethernet |
| Miscellaneous | |
| Compliant Standards | FCC |
| Depth | 17 cm |
| Width | 17 cm |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz |
| Max Size | 64 GB |
| Technology | DDR4 |
