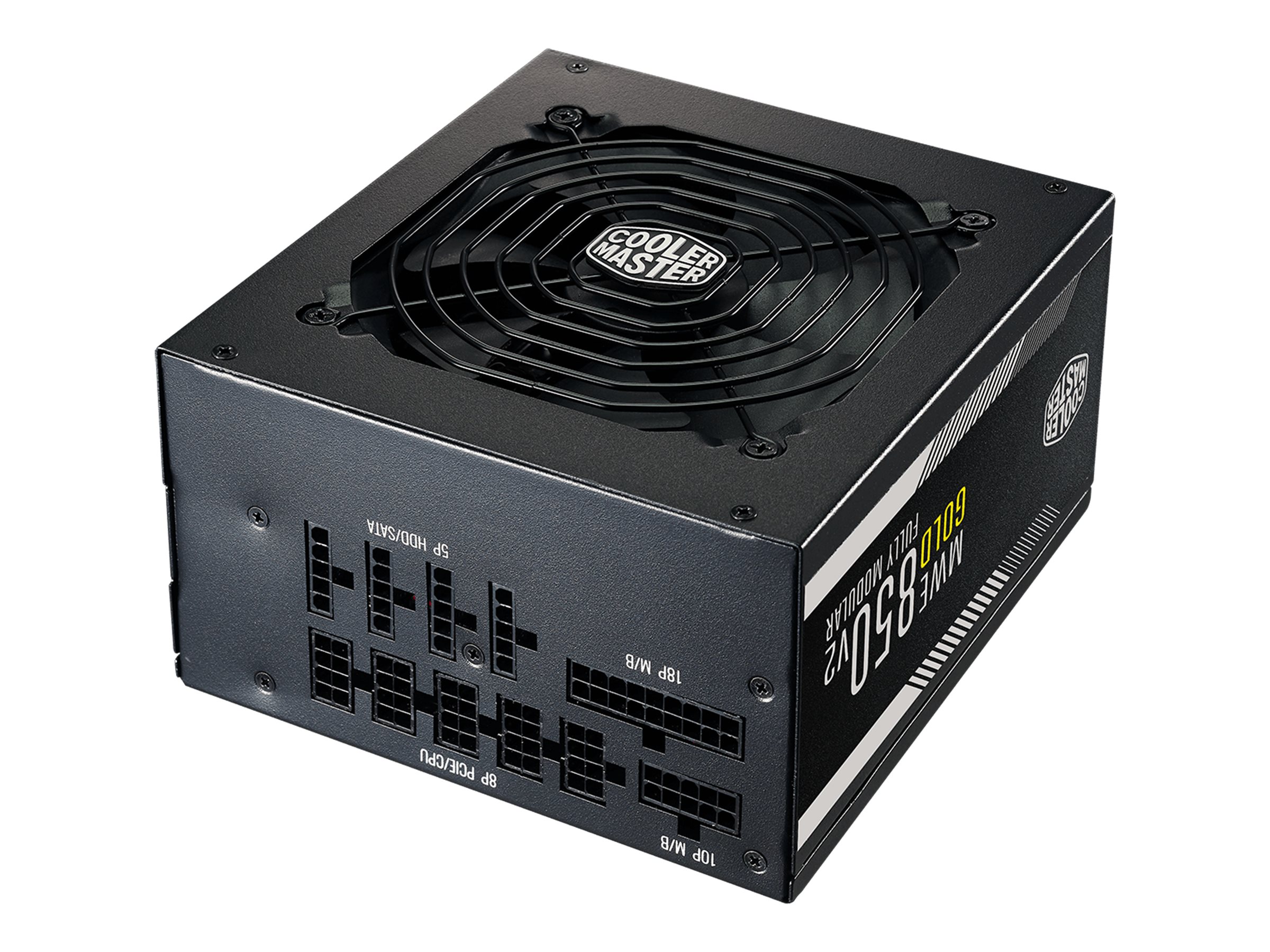

Cooler Master MWE Gold V2 850
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Cooler Master MWE Gold V2 850
- Power supply (internal)
- ATX12V
- 80 PLUS Gold
- AC 90-264 V
- 850 Watt
- active PFC
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | MPE-8501-AFAAG-US |
| SHI Part #: | 41429142 |
| Category: | Power supply units |
| UNSPSC: | 39121004 |
| Manufacturer: | Cooler Master |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power supply units |
| Description | Cooler Master MWE Gold V2 850 - Power supply (internal) - ATX12V - 80 PLUS Gold - AC 90-264 V - 850 Watt - active PFC |
| Manufacturer | Cooler Master |
| MSRP | $99.99 |
| UNSPSC | 39121004 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16 cm |
| Dimensions & Weight / Height | 8.6 cm |
| Dimensions & Weight / Width | 15 cm |
| General / Subcategory | Power supplies |
| Header / Brand | Cooler Master |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Internal |
| Power Device / Power Supply Compatibility | PC/Server |
| Power Device / Voltage Required | AC 90-264 V |
| Product Type | Power supply |
| Service & Support / Type | 5-year warranty |
| Dimensions & Weight | |
| Depth | 16 cm |
| Height | 8.6 cm |
| Width | 15 cm |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| PSU Form Factor | ATX |
| Specification Compliance | ATX12V |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | TUV, BSMI, CCC, FCC, cTUVus, EAC, RCM, ErP Lot 3 2014 Ready |

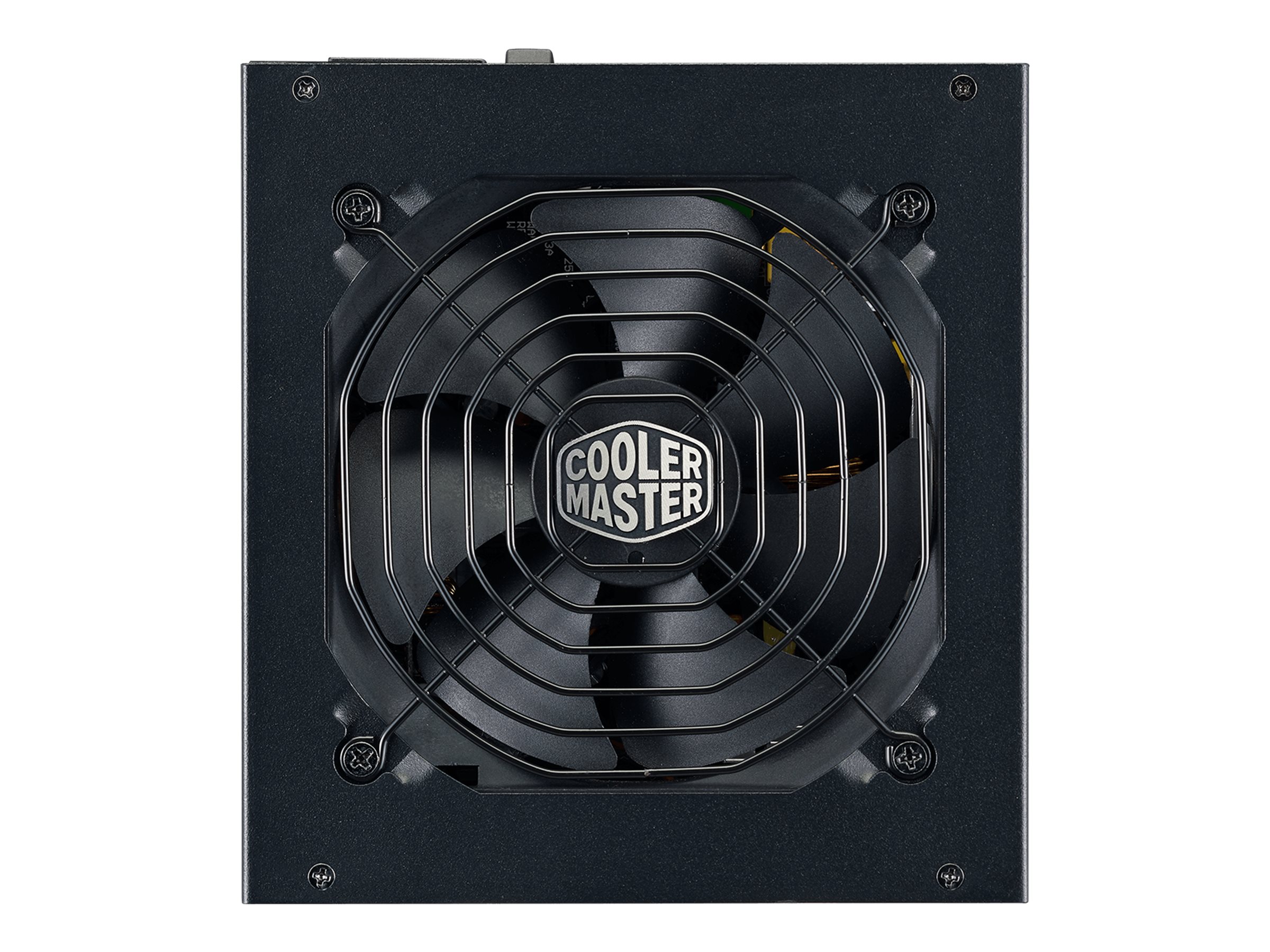

| Cooling System | 120 mm fan |
| Features | Overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, hydrodynamic bearing cooling fan, fully modular |
| MTBF | 100,000 hours |
| Power Device | |
| 80 PLUS Certification | 80 PLUS Gold |
| Efficiency | 90% |
| Frequency Required | 47 - 63 Hz |
| Input Voltage | AC 90-264 V |
| Modular Cable Management | Yes |
| Output Current |
|
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 850 Watt |

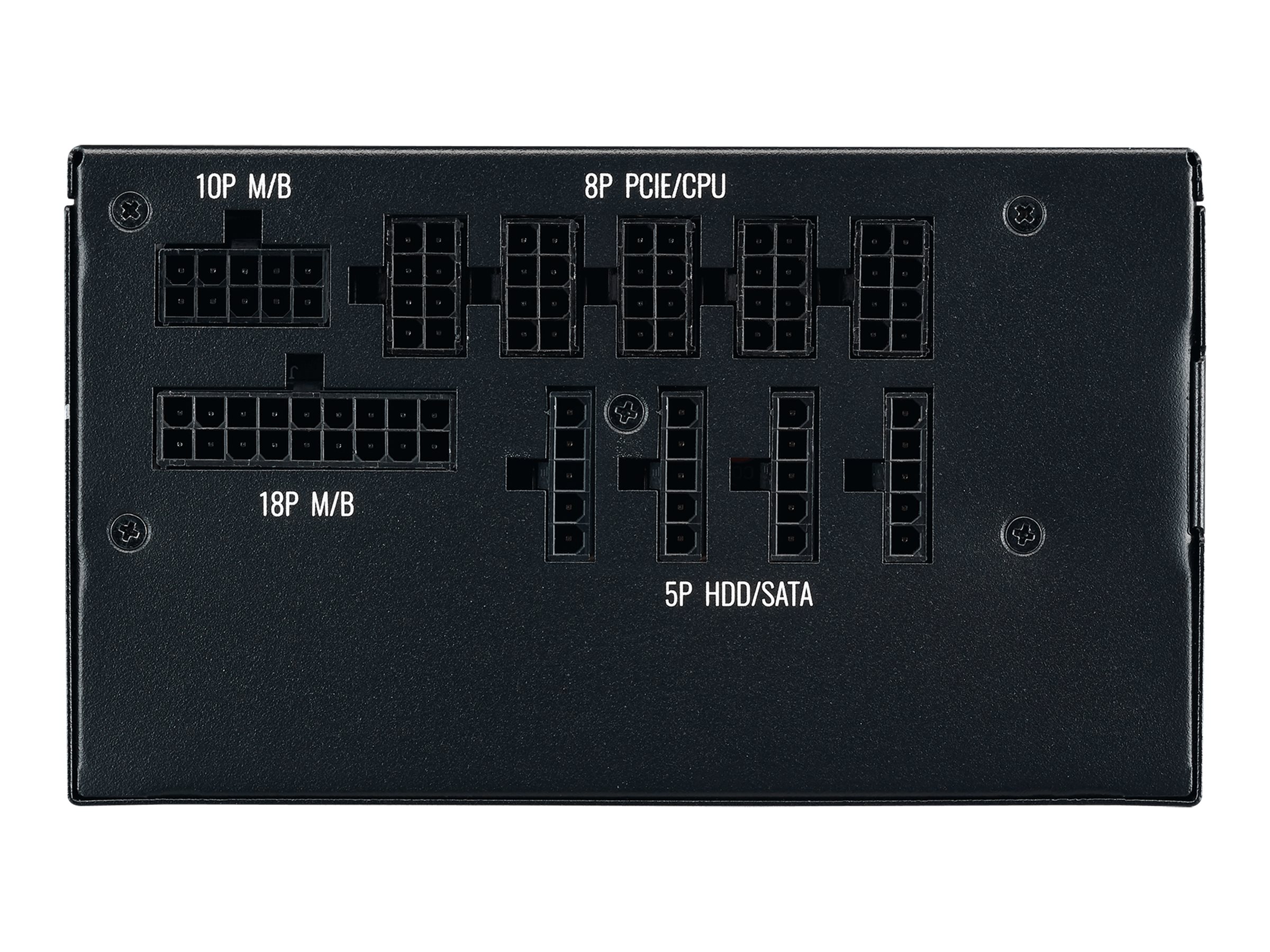

| Power Output Connectors Details |
|
