Server Technology PRO3X Switched PDU C3W36RL-DQJE2MT2
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

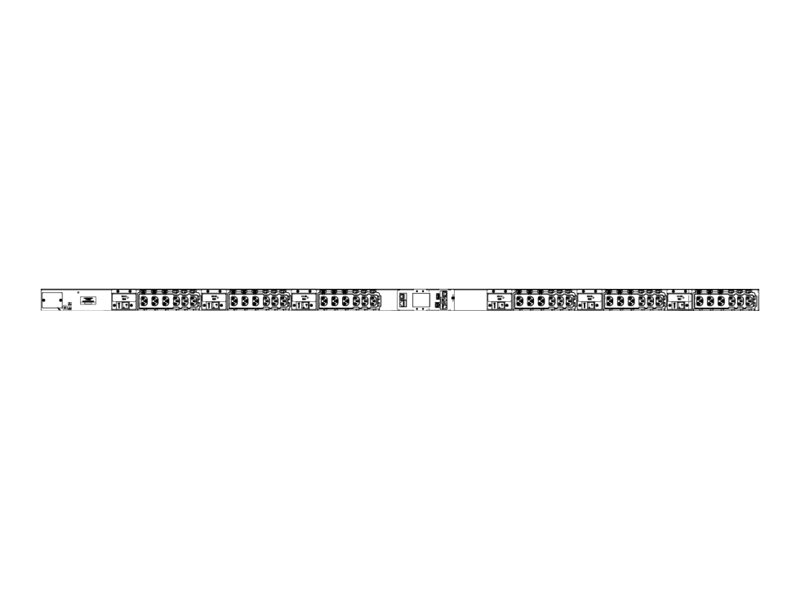

Server Technology PRO3X Switched PDU C3W36RL-DQJE2MT2
- Power distribution unit (rack-mountable)
- AC 208 V
- 17.3 kW
- 3-phase
- USB, Ethernet 10/100/1000
- input: IEC 60309 3P+N+G
- output connectors: 36 (18 x IEC 60320 C13, 18 x IEC 60320 Cx)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | C3W36RL-DQJE2MT2 |
| SHI Part #: | 40985949 |
| Category: | Power distribution units PDUs |
| UNSPSC: | 39121017 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power distribution units PDUs |
| Description | Server Technology PRO3X Switched PDU C3W36RL-DQJE2MT2 - Power distribution unit (rack-mountable) - AC 208 V - 17.3 kW - 3-phase - USB, Ethernet 10/100/1000 - input: IEC 60309 3P+N+G - output connectors: 36 (18 x IEC 60320 C13, 18 x IEC 60320 Cx) |
| Manufacturer | Legrand |
| MSRP | $3,124.00 |
| UNSPSC | 39121017 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.4 cm |
| Dimensions & Weight / Height | 177.8 cm |
| Dimensions & Weight / Width | 5.6 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Server Technology |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 36 |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.4 cm |
| Height | 177.8 cm |
| Width | 5.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | TUV, IEC 60950-1, WEEE, FCC Part 15 A, UL 489, cTUVus, RoHS 2011/65/EU, UL 60950-1:2007, EN 55024:2010, TLS v1.2, EN 55032:2012, CAN/CSA-C22.2 No. 60950-1-07+A1:2011+A2:2014, FCC Subpart B 15.107, FCC Subpart B 15.109, ANSI C12.1, EN 60950-1:2006+A11+A1+A12+A2 |
| Features | LCD display |
| Networking | |
| Remote Management Interface | USB, Ethernet 10/100/1000 |
| Remote Management Protocol | Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2, CLI, SFTP, SMTP, IPv4, IPv6, TACACS+, LDAP, RADIUS |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Input Connectors | 1 x power IEC 60309 3P+N+G |
| Input Voltage | AC 208 V |
| Input Wiring | 3-phase |
| Output Voltage | AC 208 V |
| Power Capacity | 17.3 kW |
| Power Output Connectors Details |
|
