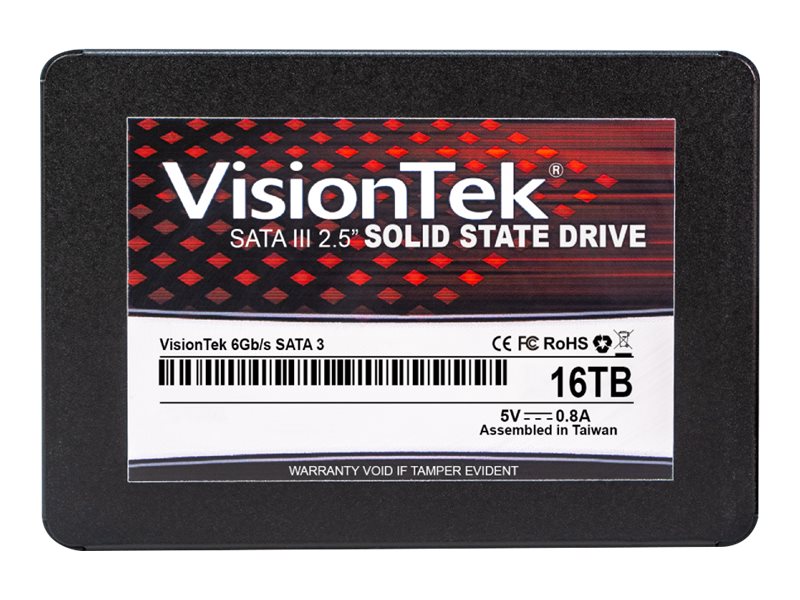

VisionTek PRO - SSD - 16 TB
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
VisionTek PRO - SSD - 16 TB
- internal
- 2.5"
- SATA 6Gb/s
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 901407 |
| SHI Part #: | 40960008 |
| Category: | Solid state drive SSD |
| UNSPSC: | 43201830 |
| Manufacturer: | VisionTek |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Solid state drive SSD |
| Description | VisionTek PRO - SSD - 16 TB - internal - 2.5" - SATA 6Gb/s |
| Manufacturer | VisionTek |
| MSRP | $3,999.99 |
| UNSPSC | 43201830 |
| Main Specifications | |
| Dimensions & Weight / Depth | 69.85 mm |
| Dimensions & Weight / Height | 7 mm |
| Dimensions & Weight / Weight | 60 g |
| Dimensions & Weight / Width | 100 mm |
| Hard Drive / Capacity | 16 TB |
| Hard Drive / Form Factor | 2.5" |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface | Serial ATA-600 |
| Header / Brand | VisionTek |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (operating) | 20 g @ 80-2000 Hz |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x SATA 6 Gb/s |
| General | |
| Bytes per Sector | 512 |
| Capacity | 16 TB |
| Depth | 69.85 mm |
| Device Type | Solid state drive - internal |
| Features | Temperature sensor, static wear leveling, Secure Erase function, End-to-end data protection, Device Sleep support, ECC Recovery LDPC, Dynamic Wear Leveling, S.M.A.R.T. |
| Form Factor | 2.5" |
| Height | 7 mm |
| Interface | SATA 6Gb/s |
| NAND Flash Memory Type | 3D quad-level cell (QLC) |
| Weight | 60 g |
| Width | 100 mm |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS, WEEE |
| Performance | |
| Drive Transfer Rate | 600 MBps (external) |
| Drive Writes Per Day (DWPD) | 0.1 |
| Internal Data Rate | 520 MBps (read) / 220 MBps (write) |
| Maximum 4KB Random Read | 90000 IOPS |
| Maximum 4KB Random Write | 10000 IOPS |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 1,500,000 hours |
| Recoverable Errors | 1 per 10^17 |
