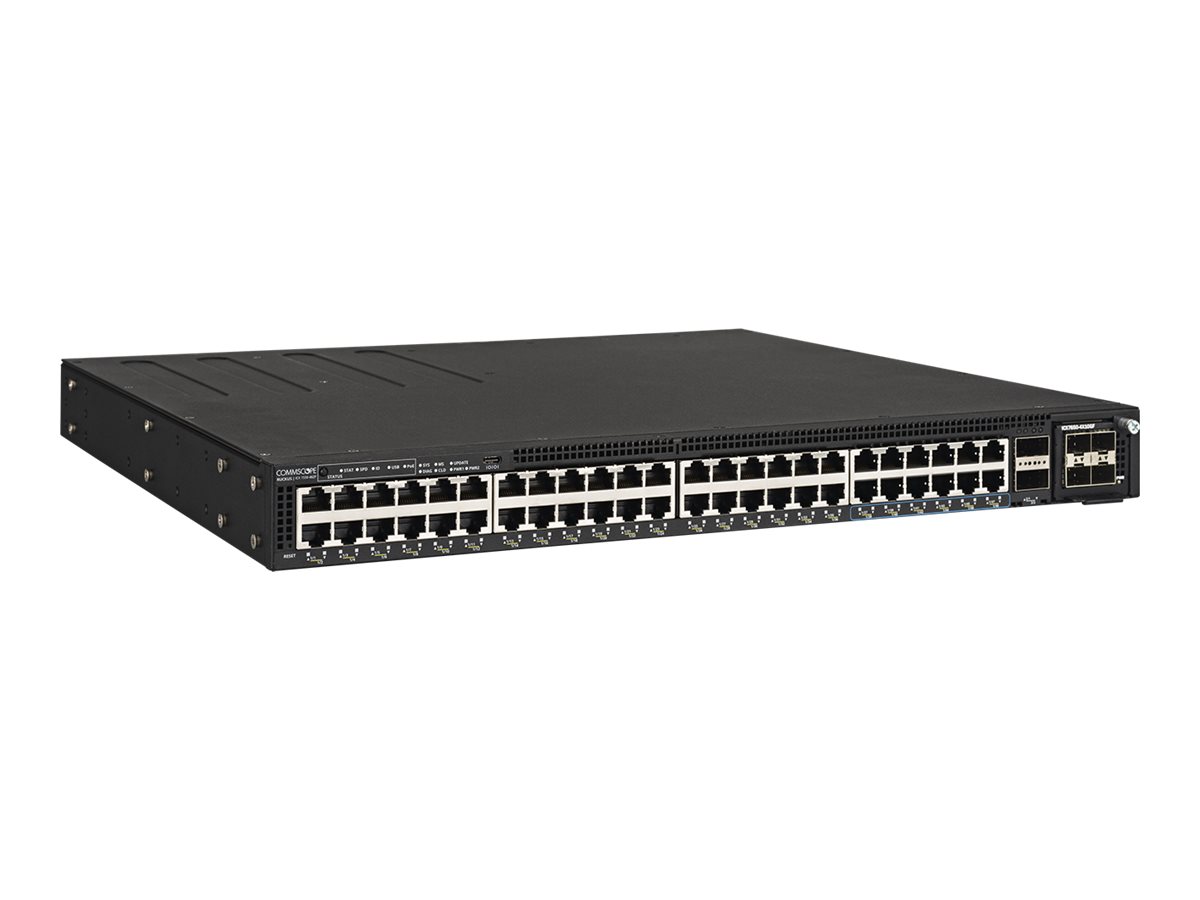

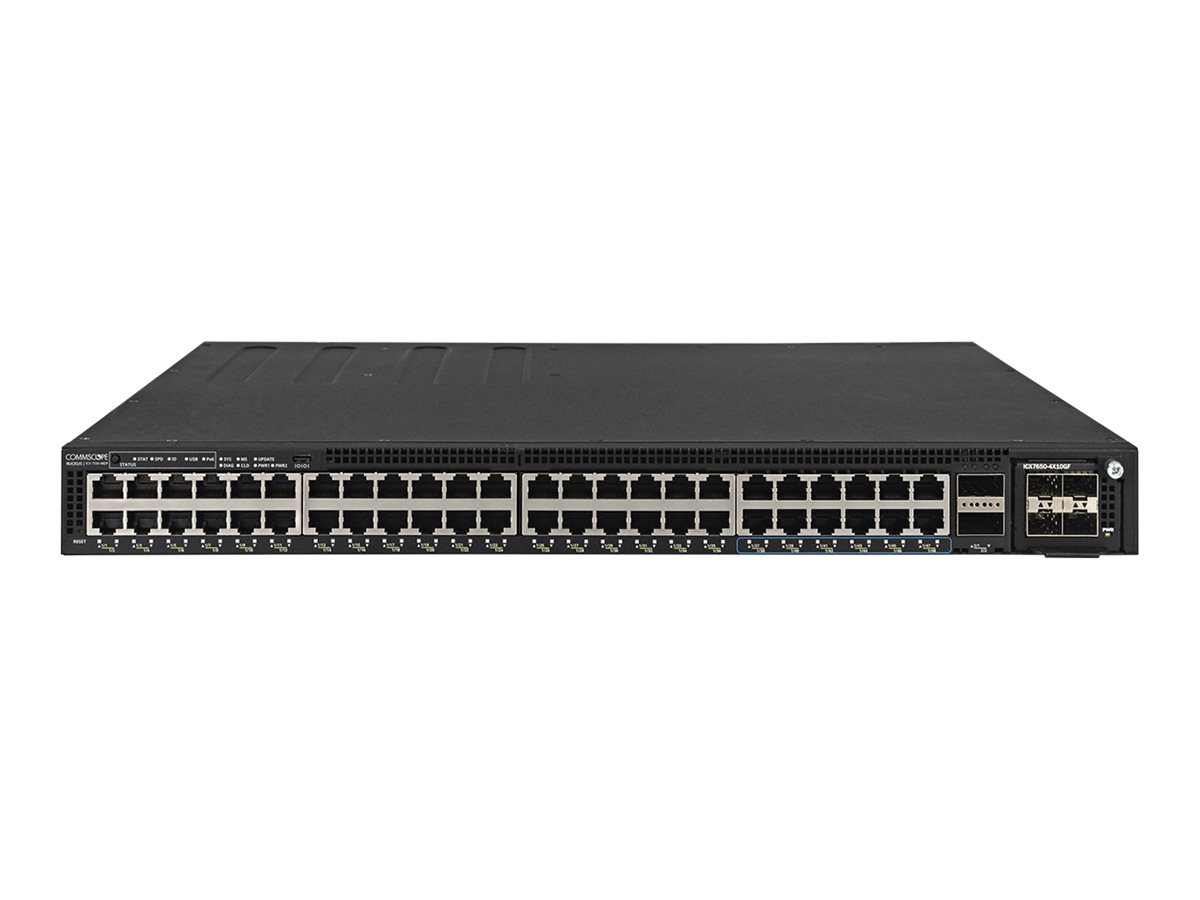

ICX 7550 36-PORT 10/100/1000/2500 MBPS 802.3BT POE, 12-PORT 100/1000/2500/50000/
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ICX 7550 36-PORT 10/100/1000/2500 MBPS 802.3BT POE, 12-PORT 100/1000/2500/50000/
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | ICX7550-48ZP |
| SHI Part #: | 40853617 |
| Category: | Switch matrixes |
| UNSPSC: | 43222612 |
| Manufacturer: | Ruckus Wireless |
| Product Type: | Hardware |
Business Software
Hardware
| General Information | |
|---|---|
| Category | Switch matrixes |
| Description | ICX 7550 36-PORT 10/100/1000/2500 MBPS 802.3BT POE, 12-PORT 100/1000/2500/50000/ |
| Manufacturer | Ruckus Wireless |
| MSRP | $12,205.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Weight | 19.4 |
| Height | 6.535 |
| Lead Time | 14 |
| Lead Time Effective Date | 10/08/22 |
| Length | 25.59 |
| List Price | 7933.25 |
| Quantity Measurement | EA |
| Unit of Measure | IN |
| UNSPSC Code | 43222612 |
| Width | 21.653 |
| Dimensions & Weight | |
| Depth | 40.64 cm |
| Height | 4.4 cm |
| Weight | 7.36 kg |
| Width | 44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.3bz, IEEE 802.2af |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Encryption Algorithm | AES |
| Features | Flow control, full duplex capability, BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, MAC address filtering, LFS, MRP support, sFlow, PVST, PIM-SM snooping, RFN, VSRP support, VCT technology, MSTP support, DHCP snooping, ACL support, QoS, DOM support, DHCP server, MLD snooping, PVST+, UDLD, RSPAN, PVRST, GVRP, MVRP, NDP, CoS, SP, DoS, 802.1x authentication, PTP, MACsec support, 3 fans, OpenFlow support, SCP, VXLAN, MAC address authentication, NTP, AAA, Root Guard, Voice VLAN, Private VLAN, protected ports, ERSPAN, WRR, MAC based VLAN, Telnet server, Telnet client, BPDU Guard, Q-in-Q tunneling, SmartZone, IPG adjustment, MAC Learning Disable, Port Loop Detection, Flexible authentication, Web authentication, CoA |
| Flash Memory | 4 GB |
| Jumbo Frame Support | 12288 bytes |
| Max Units In A Stack | 12 |
| Performance |
|
| PoE Budget | 2000 W |
| Ports | 36 x 10/100/1000/2.5G (PoE++) + 12 x 100/1000/2.5/5/10G (PoE++) + 2 x 40/100 Gigabit QSFP+ (uplink / stacking) |
| Power Over Ethernet (PoE) | PoE++ |
| RAM | 4 GB |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2, CLI |
| Routing Protocol | BGP-4, RIP-1, IGMPv2, IGMP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, MSDP, VRRPE, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), RIPng, MLDv2, MLD, BGP-4+, VRRPv3 |
| Subtype | 10 Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, WEEE, RoHS, EN 61000-6-3, FCC Part 15 A, EN 60825-1, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, EN 60950-1:2006, IEC 68-2-6, AS/NZS 55022, IEC 68-2-36, EN 55022/CISPR 22 Class A, IEC 68-2-32, IEC 68-2-27 |
| MTBF | 213,665 hours |
| Power | |
| Max Supported Qty | 2 |
| Power Consumption Operational | 1183.7 Watt |
| Power Device | Internal power supply (not installed) - hot-plug |
| Power Provided | 1200 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
