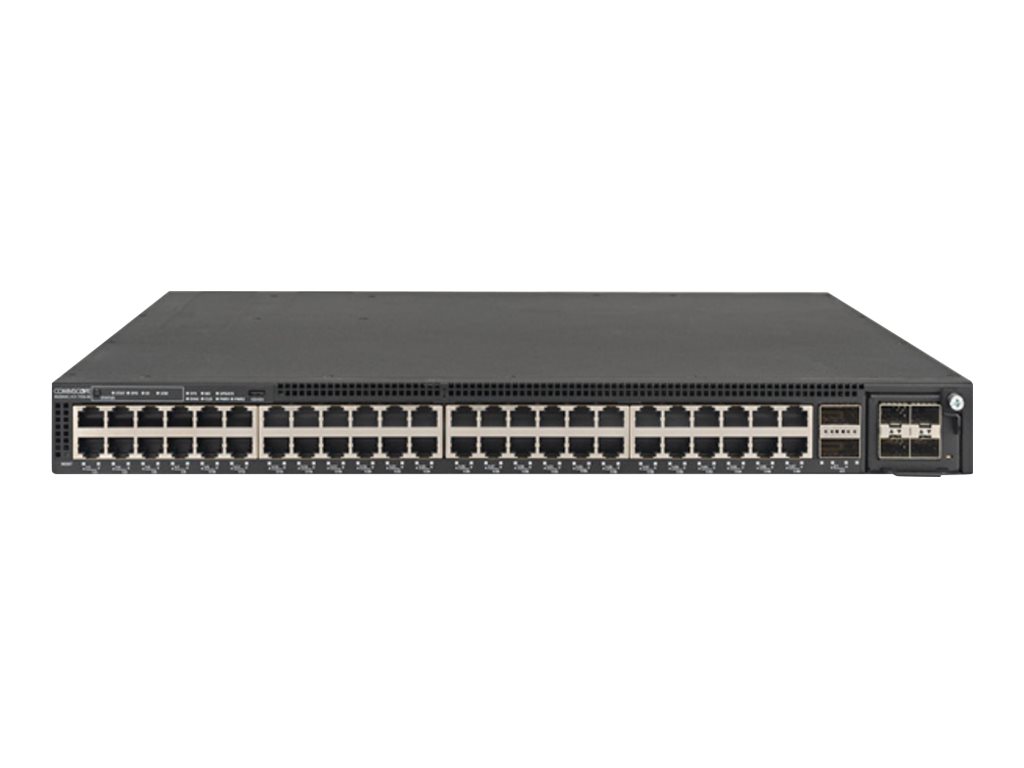

ICX 7550 48-PORT 10/100/1000 MBPS 802.3AT POE+ WITH 2-PORTS 40 GBPS UPLINK/STACK
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ICX 7550 48-PORT 10/100/1000 MBPS 802.3AT POE+ WITH 2-PORTS 40 GBPS UPLINK/STACK
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | ICX7550-48P-E2 |
| SHI Part #: | 40853615 |
| Category: | Switch matrixes |
| UNSPSC: | 43222612 |
| Manufacturer: | Ruckus Wireless |
| Product Type: | Hardware |
Hardware
| General Information | |
|---|---|
| Category | Switch matrixes |
| Description | ICX 7550 48-PORT 10/100/1000 MBPS 802.3AT POE+ WITH 2-PORTS 40 GBPS UPLINK/STACK |
| Manufacturer | Ruckus Wireless |
| MSRP | $12,415.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Weight | 25.8 |
| Height | 6.535 |
| Lead Time | 200 |
| Lead Time Effective Date | 10/08/22 |
| Length | 25.748 |
| List Price | 8069.75 |
| Quantity Measurement | EA |
| Unit of Measure | IN |
| UNSPSC Code | 43222612 |
| Width | 21.653 |
| Dimensions & Weight | |
| Depth | 40.64 cm |
| Height | 4.4 cm |
| Weight | 7.1 kg |
| Width | 44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Expansion Slots | 1 expansion slot |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.3bz, IEEE 802.3bt |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Encryption Algorithm | AES |
| Features | Flow control, full duplex capability, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, MAC address filtering, IPv6 support, LFS, MRP support, sFlow, PVST, PIM-SM snooping, RFN, VSRP support, VCT technology, MSTP support, DHCP snooping, ACL support, QoS, DOM support, DHCP server, MLD snooping, PVST+, UDLD, IPv4 support, LLDP support, RSPAN, PVRST, GVRP, MVRP, NDP, CoS, SP, DoS, 802.1x authentication, PTP, MACsec support, 3 fans, OpenFlow support, ISSU, LD-VCStack, SCP, VXLAN, MAC address authentication, NTP, AAA, Root Guard, Voice VLAN, LLDP-MED, Private VLAN, protected ports, ERSPAN, WRR, MAC based VLAN, Telnet server, Telnet client, BPDU Guard, Q-in-Q tunneling, SmartZone, MACsec, IPG adjustment, MAC Learning Disable, Port Loop Detection, Flexible authentication, Web authentication, CoA |
| Flash Memory | 4 GB |
| Jumbo Frame Support | 12288 bytes |
| Max Units In A Stack | 12 |
| Performance |
|
| PoE Budget | 2000 W |
| Ports | 48 x 10/100/1000 (PoE+) + 2 x 40 Gigabit QSFP+ (uplink/stacking) |
| Power Over Ethernet (PoE) | PoE+ |
| RAM | 4 GB |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2, CLI, SCP |
| Routing Protocol | OSPF, RIP, RIP-1, RIP-2, BGP, VRRP, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), RIPng |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, WEEE, RoHS, EN 61000-6-3, FCC Part 15 A, EN 60825-1, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, EN 60950-1:2006, IEC 68-2-6, AS/NZS 55022, IEC 68-2-36, EN 55022/CISPR 22 Class A, IEC 68-2-32, IEC 68-2-27 |
| MTBF | 304,125 hours |
| Power | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Consumption Operational | 1131.6 Watt |
| Power Device | Internal power supply - hot-plug |
| Power Provided | 1200 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
