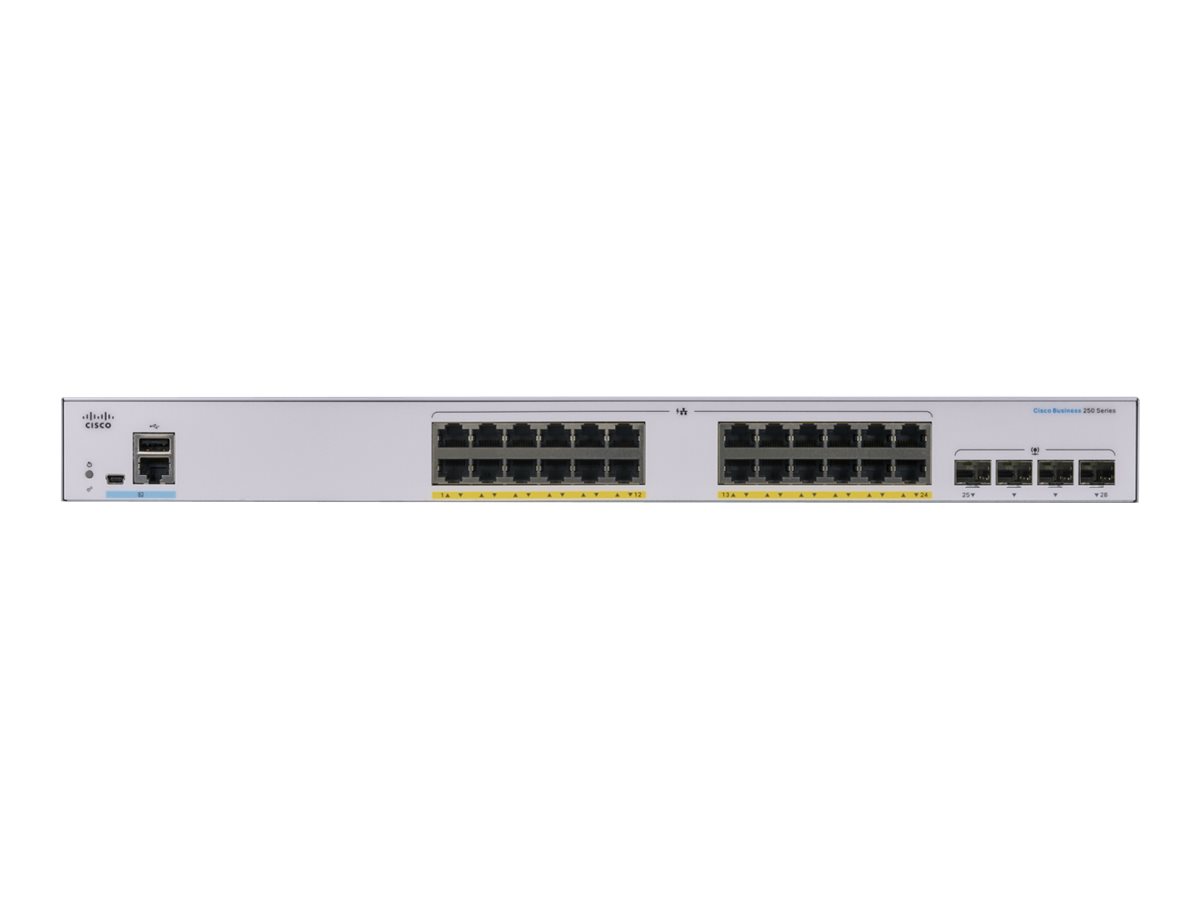

Cisco Business 250 Series 250-24P-4G

Cisco Business 250 Series 250-24P-4G

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • L3
  • smart
  • 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
  • rack-mountable
Cisco Business 250 Series 250-24P-4G
  • Switch
  • L3
  • smart
  • 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
  • rack-mountable
  • PoE+ (195 W)
  Additional Details
Price: $578.00
MSRP: $616.87
Mfr Part #: CBS250-24P-4G-NA
SHI Part #: 40716093
Category: Network switches
UNSPSC: 43222612
Manufacturer: Cisco Systems
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionCisco Business 250 Series 250-24P-4G - Switch - L3 - smart - 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - rack-mountable - PoE+ (195 W)
ManufacturerCisco Systems
Main Specifications
Dimensions & Weight / Depth29.9 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight3.53 kg
Dimensions & Weight / Width44.5 cm
Header / BrandCisco
Header / Country Kits
  • Canada
  • Chile
  • Colombia
  • Latin America
  • Mexico
  • United States
Miscellaneous / Product ColorWhite
Networking / Form FactorRack-mountable
Networking / Ports Qty28
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Depth29.9 cm
Height4.4 cm
Weight3.53 kg
Width44.5 cm
Environmental Parameters
Humidity Range Operating10 - 90% (non-condensing)
Humidity Range Storage10 - 90% (non-condensing)
Max Operating Temperature50 °C
Max Storage Temperature70 °C
Min Operating Temperature-5 °C
Min Storage Temperature-25 °C
Expansion / Connectivity
  • 24 x 10/100/1000 Base-T RJ-45 PoE+
  • 4 x 1000Base-X SFP
  • 1 x console (mini-USB) Type B
  • 1 x USB Type A
  • 1 x console RJ-45
Authentication MethodSecure Shell (SSH), RADIUS, Secure Shell v.2 (SSH2)
  • RPVST+ instances: 126
  • MSTP instances: 8
  • VLANs supported: 255
  • ACL rules: 512
  • Buffer capacity (MB): 1.5 MB
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Device TypeSwitch - 28 ports - L3 - smart
Enclosure TypeRack-mountable
Encryption AlgorithmSSL
FeaturesFlow control, BOOTP support, VLAN support, Syslog support, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DDos attack prevention, Quality of Service (QoS), DHCP server, Per-VLAN Spanning Tree Plus (PVST+), reset button, fanless, LACP support, LLDP support, DHCP relay, Port Security, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Neighbor Discovery Protocol (NDP), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Duplicated Address Detection, Type of Service (ToS), DiffServ Code Point (DSCP) support, SmartPort technology, dual image support, VLAN mirroring, DNS client, Secure Core Technology (SCT), LLDP-MED, Head-of-line (HOL) blocking, Secure Sensitive Data (SSD), ISATAP tunnel support, User Datagram Protocol (UDP), STP loop guard, Denial of Service (DoS) protection, Weighted Round Robin (WRR), loopback detection, Unknown Storm Control, Link Aggregation Group (LAG), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+)
Flash Memory256 MB
Jumbo Frame Support2KB
MAC Address Table Size8K entries
  • Forwarding performance (64-byte packet size): 41.66 Mpps
  • Switching capacity: 56 Gbps
PoE Budget195 W
Ports24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE)PoE+
ProcessorX ARM: 800 MHz
Remote Management ProtocolSNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, RADIUS
Routing ProtocolIGMPv2, IGMP, IGMPv3, MLDv2, MLD, CIDR, MSTP, RSTP, STP
Status IndicatorsStatus, PoE, link/activity/speed
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & Support
  • Limited warranty - replacement - lifetime - response time: next business day
  • Technical support - web support - 1 year
  • Technical support - phone consulting - 1 year
Compliant StandardsUL 60950, CSA 22.2, FCC CFR47 Part 15 A, USGv6
LocalizationColombia, Canada, Chile, Mexico, Latin America, United States
MTBF698,220 hours
Rack Mounting KitIncluded
Power Consumption Operational239.7 Watt
Power DeviceInternal power supply
Voltage RequiredAC 120/230 V (50/60 Hz)
