Datalogic - Barcode scanner
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

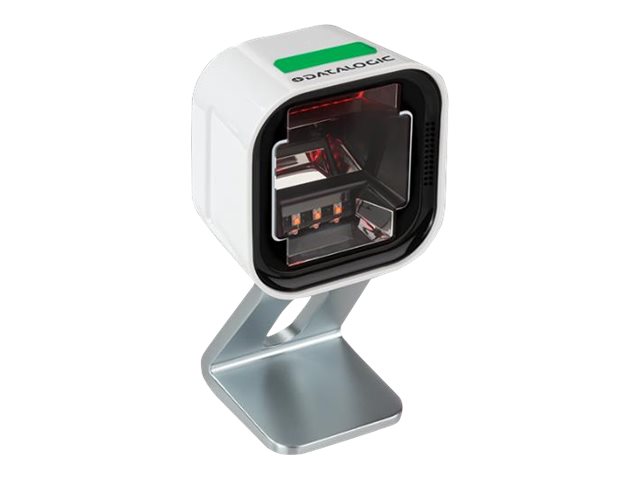

Datalogic - Barcode scanner
- decoded
| Additional Details | |
|---|---|
| Mfr Part #: | 3F568AA |
| SHI Part #: | 40334399 |
| Category: | Light pen or barcode scanner |
| UNSPSC: | 43211707 |
| Manufacturer: | HP, Inc. |
| Product Type: | Hardware |
| Product Line: | HPI - Desktops |
| General Information | |
|---|---|
| Category | Light pen or barcode scanner |
| Description | Datalogic - Barcode scanner - decoded |
| Manufacturer | HP, Inc. |
| UNSPSC | 43211707 |
| Main Specifications | |
| Height | 0.00 |
| Length | 0.00 |
| UPC | 0194850671456 |
| Width | 0.00 |
| Barcode | |
| Connectivity Technology | Wired |
| Decode Capability | GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, UPC, Postnet, PDF417, Data Matrix, PLANET, Australian Post, British Post, Canadian Post, China Post, Japanese Post, Kix (Netherlands) Post, Royal Mail, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, Swedish Post, GS1 DataBar Composites, GS1 DataBar Stacked, Portuguese Post, Intelligent Mail Barcode |
| Features | Green Spot technology |
| Interface Type | USB |
| Max Working Distance | 30 cm |
| Minimum Bar Width | 5 mil |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 25% |
| Scan Mode | Fixed projection |
| Sensor Resolution | 1280 x 800 |
| Skew (Degrees) | 75 |
| TTL Decoding | Decoded |
| Dimensions & Weight | |
| Depth | 7.5 cm |
| Height | 15 cm |
| Weight | 240 g |
| Width | 6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x USB - Type A |
| General | |
| Color | White |
| Localization | English / United States |
| Type | Barcode scanner - desktop - stationary |
| Miscellaneous | |
| Cables Included | 1 x USB cable - 2 m |
| Compliant Standards | IEC 62471 |
| Included Accessories | Tall tilting stand |
| Pricing Type | OEM |
| Power | |
| Electric Current Required | 300 mA (standby), 500 mA (operating) |
| System Requirements | |
| OS Required | Red Hat Linux, Microsoft Windows Embedded POSReady 2009, Microsoft Windows 7 Professional (32/64 bits), CentOS 6.0, Microsoft Windows Embedded POSReady 7 32-bit, Windows 8.1 Pro 64-bit Edition, Microsoft Windows Embedded POSReady 7 64-bit, Windows Embedded 8.1 Industry Pro 64-bit Edition, Ubuntu 14.04 LTS, Ubuntu 14.04 LTS (64-bit), Windows 10 Pro 64-bit Edition, CentOS 7.0, Windows 10 IoT Enterprise 64-bit Edition Retail, CentOS 6.0 (64-bit), CentOS 7.0 (64-bit) |
