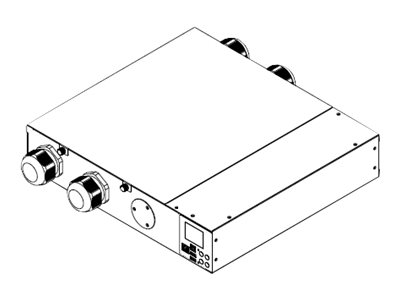

Raritan PX3-3288 - Power distribution unit (rack-mountable)
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Raritan PX3-3288 - Power distribution unit (rack-mountable)
- AC 208 V
- 3-phase
- Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
- input: 2 x CS8365C
- output connectors: 2 (2 x Hubbell CS8364C)
- 2U
- 3 m cord
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX3-3288 |
| SHI Part #: | 40316566 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan PX3-3288 - Power distribution unit (rack-mountable) - AC 208 V - 3-phase - Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 - input: 2 x CS8365C - output connectors: 2 (2 x Hubbell CS8364C) - 2U - 3 m cord |
| Manufacturer | Legrand |
| MSRP | $2,967.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 40 cm |
| Dimensions & Weight / Height | 8.8 cm |
| Dimensions & Weight / Weight | 18.8 kg |
| Dimensions & Weight / Width | 44 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 2 |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 40 cm |
| Height | 8.8 cm |
| Weight | 18.8 kg |
| Width | 44 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 54.5 cm |
| Shipping Height | 53 cm |
| Shipping Weight | 23 kg |
| Shipping Width | 71.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 2 x power cable 3 m |
| Compliant Standards | UL, IEC 62053-21, ISO 62053-21 |
| Features | LCD display, voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, power cable IP20 compliant |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 2 x 2 x power CS8365C |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 208 - 240 V |
| Input Wiring | 3-phase |
| Max Electric Current | 50 A |
| Output Voltage | AC 208 V |
| Power Output Connectors Details | 2 x Hubbell CS8364C |
