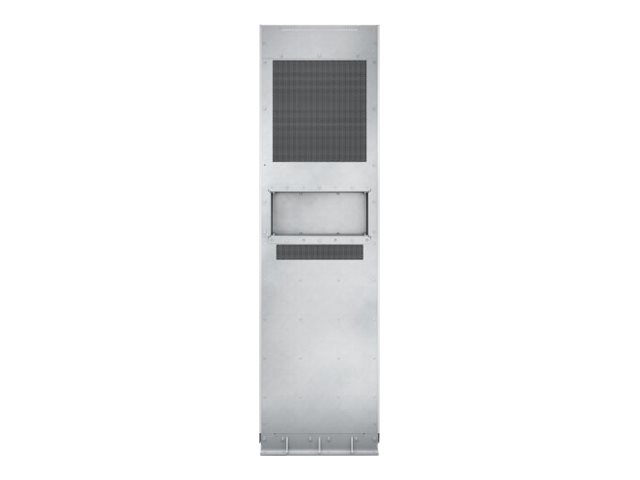

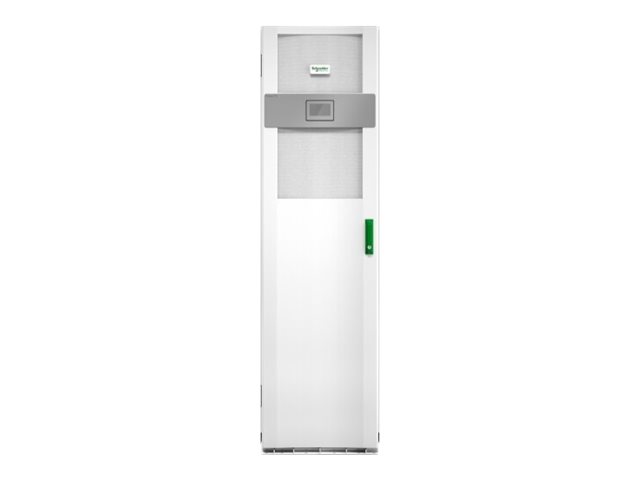

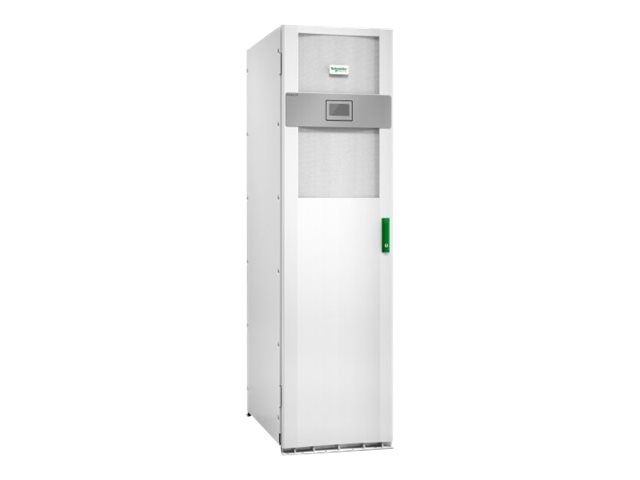

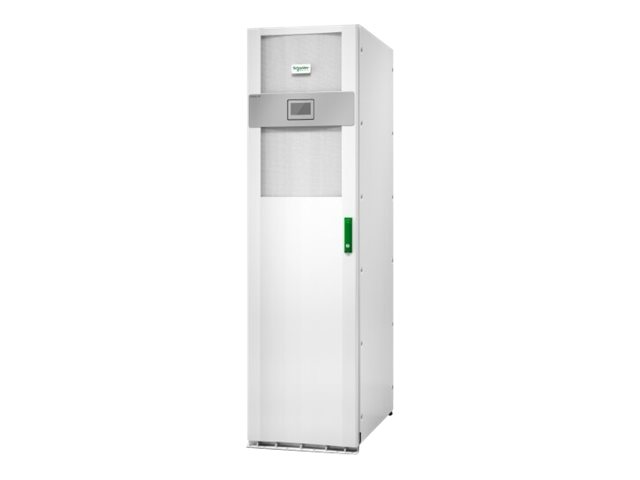

GALAXY VS UPS 80KW 480V 3 INTERNAL 9AH SMART MOD BATT
MSRP$59,165.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
GALAXY VS UPS 80KW 480V 3 INTERNAL 9AH SMART MOD BATT
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $59,165.00 |
| Mfr Part #: | GVSUPS80KB5GS |
| SHI Part #: | 40088638 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | GALAXY VS UPS 80KW 480V 3 INTERNAL 9AH SMART MOD BATT |
| Manufacturer | APC by Schneider Electric |
| MSRP | $59,165.00 |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 84.7 cm |
| Dimensions & Weight / Height | 197 cm |
| Dimensions & Weight / Weight | 680 kg |
| Dimensions & Weight / Width | 55 cm |
| General / Subcategory | UPS |
| Header / Brand | Schneider |
| Miscellaneous / Product Color | White |
| Networking / Remote Management Interface | Ethernet |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Power Capacity (VA) | 80000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 480 V |
| Product Type | UPS |
| Service & Support / Type | 1-year warranty |
| Battery | |
| Capacity | 9 Ah |
| Quantity | 3 battery strings (installed) / 5 (supported) |
| Technology | Lead acid |
| Type | Expandable |
| Dimensions & Weight | |
| Depth | 84.7 cm |
| Height | 197 cm |
| Weight | 680 kg |
| Width | 55 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 101 cm |
| Shipping Height | 208.2 cm |
| Shipping Weight | 705 kg |
| Shipping Width | 75.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 65 dBA |
| Expansion / Connectivity | |
| Interfaces | Management (Ethernet) - RJ-45 |
| General | |
| Bundled Services | Start-Up Service 5X8 |
| Color | White, RAL 9003 |
| Device Type | UPS - external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year - on-site |
| Miscellaneous | |
| Compliant Standards | IEC 62040-3, IEC 62040-1-1, IEC 62040-2, FCC Part 15 A, CSA C22.2 No. 107.3, IP20, OSHPD, UL 1778 5th edition |
| Features | Audible alarm, built-in static bypass, overload protection, touch screen LCD display, VRLA battery support |
| Included Accessories | Dust filter |
| Networking | |
| Remote Management Interface | Ethernet |
| Remote Management Protocol | SNMP, Modbus |
| Power Device | |
| Efficiency | 97% at 100% Load, 95.5% at 25% Load, 96.7% at 50% Load, 97% at 75% Load |
| Frequency Provided | 50/60 Hz ± 0.1% |
| Frequency Required | 40 - 70 Hz |
| Input Voltage | AC 480 V |
| Input Voltage Range | AC 408 - 552 V |
| Input Wiring | 3-phase |
| Output Voltage | AC 480 V ± 3% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 80 kW / 80000 VA |
| Power Factor (PF) | 0.99 |
| Total Harmonic Distortion (THD) | 1 % |
| UPS Technology | On-line |
