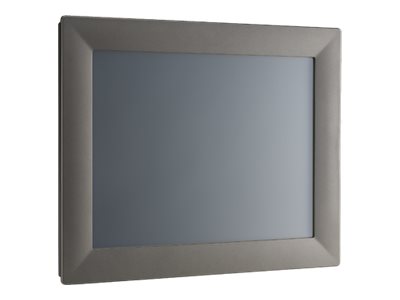

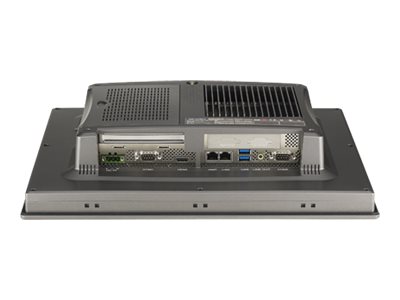

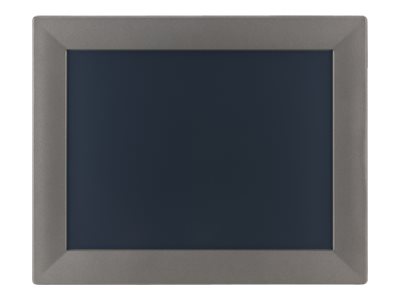

Advantech TPC-1582H-433BE
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Advantech TPC-1582H-433BE
- Panel PC
- Core i3 4010U up to
- RAM 4 GB
- no HDD
- HD Graphics 4400
- Gigabit Ethernet
- no OS
- monitor: LED 15" 1024 x 768 (XGA) touchscreen
- black
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | TPC-1582H-433BE |
| SHI Part #: | 39727834 |
| Category: | Personal computers |
| UNSPSC: | 43211508 |
| Manufacturer: | Advantech |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Personal computers |
| Description | Advantech TPC-1582H-433BE - Panel PC - Core i3 4010U up to - RAM 4 GB - no HDD - HD Graphics 4400 - Gigabit Ethernet - no OS - monitor: LED 15" 1024 x 768 (XGA) touchscreen - black |
| Manufacturer | Advantech |
| MSRP | $1,752.00 |
| UNSPSC | 43211508 |
| Main Specifications | |
| Chassis / Form Factor | All-in-one |
| Dimensions & Weight / Depth | 30.7 cm |
| Dimensions & Weight / Height | 7.85 cm |
| Dimensions & Weight / Weight | 5.5 kg |
| Dimensions & Weight / Width | 38.3 cm |
| Display / Diagonal Size | 15 in |
| Display / Diagonal Size (metric) | 38.1 cm |
| Display / Native Resolution | 1024 x 768 |
| Display / Type | LED |
| Display / Widescreen Display | No |
| Header / Brand | Advantech |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | No operating system |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 1.7 GHz |
| Processor / Generation | 4 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | Dual-Core |
| Processor / Processor Number | I3-4010U |
| Processor / Type | Core i3 |
| RAM / Form Factor | SO-DIMM 204-pin |
| RAM / Memory Speed | 1600 MHz |
| RAM / Technology | DDR3L SDRAM |
| System / Hard Drive Capacity | 0 GB |
| System / Type | Personal computer |
| Video Output / Graphics Processor | Intel HD Graphics 4400 |
| Cache Memory | |
| Cache Per Processor | 3 MB |
| Installed Size | 3 MB |
| Card Reader | |
| Supported Flash Memory Cards | CFast Card |
| Type | Card reader |
| Dimensions & Weight | |
| Depth | 30.7 cm |
| Height | 7.85 cm |
| Weight | 5.5 kg |
| Width | 38.3 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Interfaces |
|
| Slots |
|
| General | |
| Color | Black |
| Product Form Factor | Panel PC |
| Type | Personal computer |
| Graphics Controller | |
| Graphics Processor | Intel HD Graphics 4400 |
| Video Interfaces | HDMI |
| Hard Drive | |
| Type | No HDD |
| Miscellaneous | |
| Compliant Standards | CCC, FCC, cULus, IP65 |
| Included Accessories | iDoor |
| Monitor | |
| Diagonal Size | 15" |
| Horizontal Viewing Angle | 160 |
| Image Aspect Ratio | 4:3 |
| Image Brightness | 400 cd/m² |
| Image Contrast Ratio | 700:1 |
| Monitor Features | 5-Wire Resistive Touch Screen Technology |
| Monitor Type | LED |
| Native Resolution | 1024 x 768 (XGA) |
| Touchscreen | Yes |
| Vertical Viewing Angle | 140 |
| Widescreen Display | No |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Operating System / Software | |
| OS Provided | No operating system |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Power Consumption Operational | 60 Watt |
| Voltage Required | DC 24 V |
| Processor / Chipset | |
| Clock Speed | 1.7 GHz |
| CPU | Intel Core i3 (4th Gen) 4010U |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Number of Cores | Dual-Core |
| RAM | |
| Effective Memory Speed | 1600 MHz |
| Form Factor | SO-DIMM 204-pin |
| Installed Size | 4 GB |
| Technology | DDR3L SDRAM |
| Storage Controller | |
| Type | SATA |
