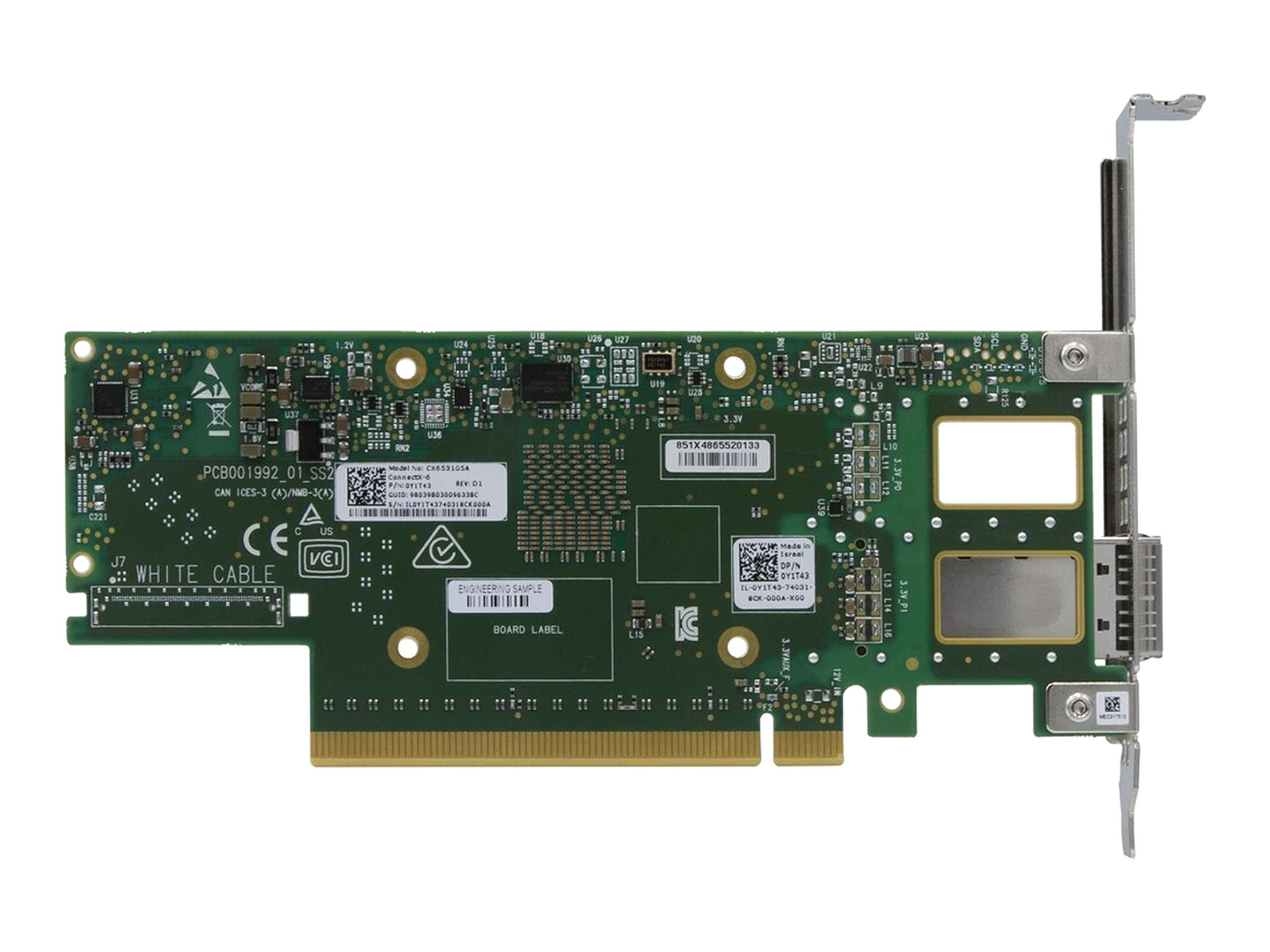

CONNECTX6 VPI ADAPT CARD H100GB/S HDR100 EDR IB & 100GBE
MSRP$1,084.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
CONNECTX6 VPI ADAPT CARD H100GB/S HDR100 EDR IB & 100GBE
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,084.00 |
| Mfr Part #: | MCX653105A-ECAT-SP |
| SHI Part #: | 39654132 |
| Category: | Network interface cards |
| UNSPSC: | 43201404 |
| Manufacturer: | Mellanox |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network interface cards |
| Description | CONNECTX6 VPI ADAPT CARD H100GB/S HDR100 EDR IB & 100GBE |
| Manufacturer | Mellanox |
| MSRP | $1,084.00 |
| UNSPSC | 43201404 |
| Main Specifications | |
| C.P.U. | SAN-CP |
| Height | 0000.00 |
| Length | 0000.00 |
| Width | 0000.00 |
| Dimensions & Weight | |
| Depth | 16.765 cm |
| Height | 6.89 cm |
| Expansion / Connectivity | |
| Interfaces | 1 x 100Gb Ethernet / 100Gb Infiniband - QSFP28 |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 4.0 x16 |
| PCI Specification Revision | PCIe 1.1, PCIe 2.0, PCIe 3.0, PCIe 4.0 |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Networking | |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IBTA 1.3, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit InfiniBand |
| Data Transfer Rate | 100 Gbps |
| Features | Auto-negotiation, MPLS support, VLAN support, InfiniBand QDR Link support, Virtual Protocol Interconnect (VPI), Quality of Service (QoS), InfiniBand DDR Link support, Jumbo Frames support, PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI support, InfiniBand FDR Link support, congestion control, Advanced Error Reporting (AER), Extended Message-Signaled Interrupts (MSI-X), Header Data Split (HDS), Transmit Side Scaling (TSS), RDMA over Converged Ethernet (RoCE), InfiniBand EDR Link support, TLP Processing Hint (TPH), InfiniBand SDR Link support, Extended Reliable Connected transport (XRC), Dynamically Connected transport (DCT), user mode registration and remapping of memory (UMR), On demand paging (ODP), Message Signaled Interrupts (MSI), InfiniBand HDR100 Link support |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI |
| Ports | 100Gb Ethernet / 100Gb Infiniband QSFP28 x 1 |
| Software / System Requirements | |
| OS Required | FreeBSD, Microsoft Windows, Red Hat Enterprise Linux, CentOS |
