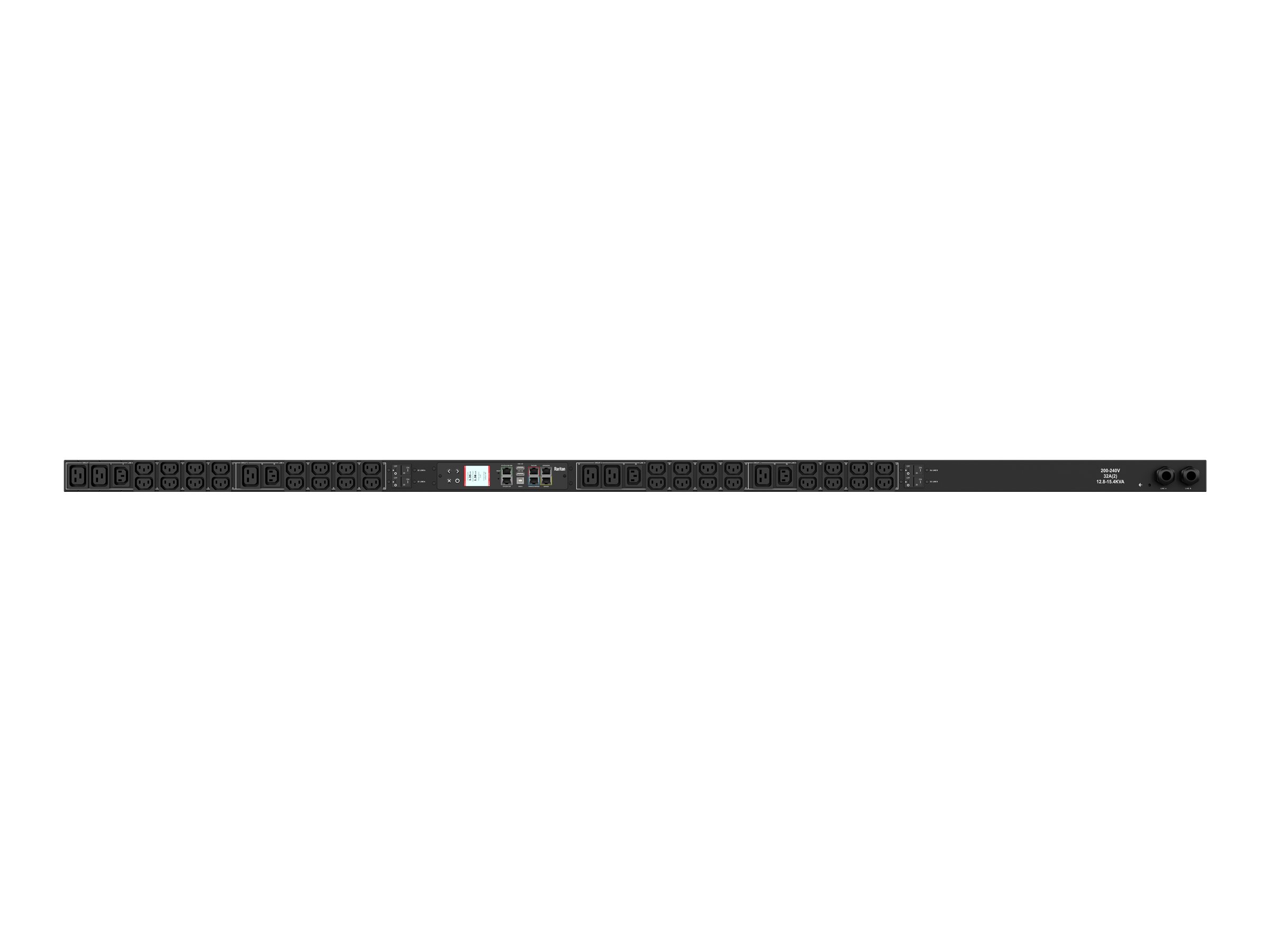

Raritan PX3-1923X2 - Power distribution unit (rack-mountable)


$1,555.00
Raritan PX3-1923X2 - Power distribution unit (rack-mountable)

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • AC 230 V
  • 14700 VA
  • Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
  • input: IEC 60309 2P+E
  • output connectors: 42 (6 x IEC 60320 C19, 36 x IEC 60320 C13)
Raritan PX3-1923X2 - Power distribution unit (rack-mountable)
  • AC 230 V
  • 14700 VA
  • Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
  • input: IEC 60309 2P+E
  • output connectors: 42 (6 x IEC 60320 C19, 36 x IEC 60320 C13)
  • 0U
  • 3 m cord
  • black powder coat
  Additional Details
Price: $1,555.00
Mfr Part #: PX3-1923X2
SHI Part #: 39478646
Category: Power distribution units PDUs
UNSPSC: 39121017
Manufacturer: Legrand
Product Type: Hardware
General Information
CategoryPower distribution units PDUs
DescriptionRaritan PX3-1923X2 - Power distribution unit (rack-mountable) - AC 230 V - 14700 VA - Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 - input: IEC 60309 2P+E - output connectors: 42 (6 x IEC 60320 C19, 36 x IEC 60320 C13) - 0U - 3 m cord - black powder coat
ManufacturerLegrand
MSRP$1,408.00
UNSPSC39121017
Main Specifications
Dimensions & Weight / Depth5.5 cm
Dimensions & Weight / Height185.6 cm
Dimensions & Weight / Weight8.3 kg
Dimensions & Weight / Width5.2 cm
General / SubcategoryPower distribution devices
Header / BrandRaritan
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • Ethernet 10/100
  • Ethernet 10/100/1000
  • RS-232
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable
Power Device / Output Connector Qty42
Power Device / Power Capacity (VA)14700 VA
Power Device / Voltage RequiredAC 230 V
Product TypePower distribution unit
Service & Support / Type2-year warranty
Dimensions & Weight
Depth5.5 cm
Height185.6 cm
Weight8.3 kg
Width5.2 cm
Dimensions & Weight (Shipping)
Shipping Depth14 cm
Shipping Height236.8 cm
Shipping Weight11.2 kg
Shipping Width36.5 cm
Environmental Parameters
Humidity Range Operating85%
Max Operating Temperature60 °C
Expansion / Connectivity
Interfaces
  • 1 x management (Gigabit Ethernet) - RJ-45
  • 1 x management (Fast Ethernet) - RJ-45
  • 1 x management (USB) - 4 pin USB Type B
  • 2 x USB - 4 pin USB Type A
  • 1 x feature - RJ-45
  • 1 x expansion - RJ-45
  • 1 x sensor - RJ-45
  • 1 x management (RS-232) - RJ-45
General
ColorBlack powder coat
Cord Length3 m
Device TypePower distribution unit - rack-mountable
Height (Rack Units)0U
Manufacturer Warranty
Service & SupportLimited warranty - 2 years
Miscellaneous
Cables Included2 x power cable - integrated - 3 m
Compliant StandardsICES-003, RoHS, FCC Part 15 A, IEC 62053-21, ISO 62053-21
FeaturesLCD display, voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, remote outlet switching, metering per input line, metering per branch circuit breaker, metering per output receptacle, replaceable controller, power cable IP44 compliant, 4 x LEGBXA6-16 overload protection
Rack Mounting KitIncluded
Networking
Remote Management InterfaceEthernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management ProtocolSNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus
Power Device
Circuit ProtectionCircuit breaker
Frequency Required50/60 Hz
Input Connectors2 x power IEC 60309 2P+E
Input VoltageAC 230 V
Input Voltage RangeAC 200 - 240 V
Max Electric Current32 A
Output Voltage230 V
Power Capacity14700 VA
Power Capacity Details12.8 kVA at 200 V, 15.4 kVA at 240 V
Power Output Connectors Details
  • 36 x power IEC 60320 C13 - 230 V 10 A
  • 6 x power IEC 60320 C19 - 230 V 16 A
