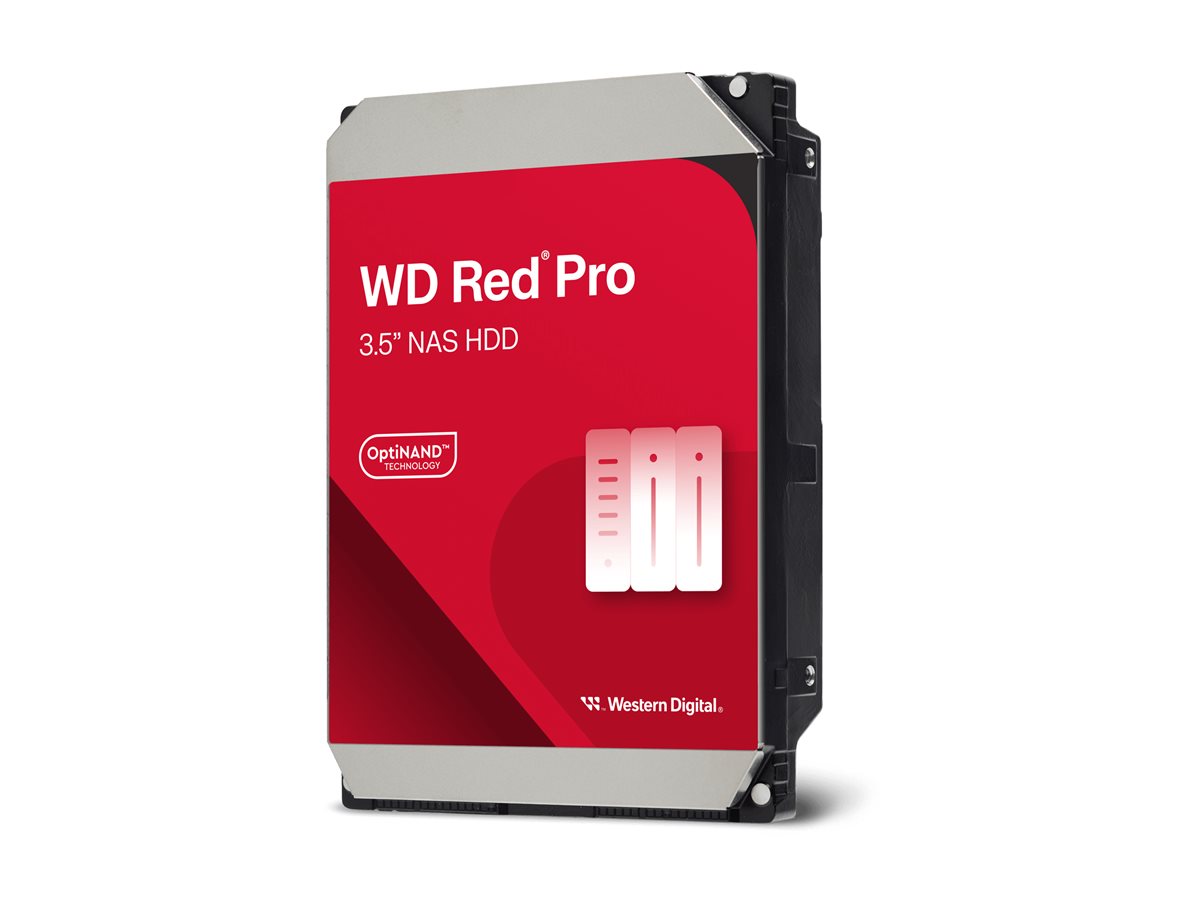

WD Red Pro NAS Hard Drive WD121KFBX


$348.00
WD Red Pro NAS Hard Drive WD121KFBX

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Hard drive
  • 12 TB
  • internal
  • 3.5"
  • SATA 6Gb/s
WD Red Pro NAS Hard Drive WD121KFBX
  • Hard drive
  • 12 TB
  • internal
  • 3.5"
  • SATA 6Gb/s
  • 7200 rpm
  Additional Details
Price: $348.00
Mfr Part #: WD121KFBX
SHI Part #: 37531764
Category: Hard drives
UNSPSC: 43201803
Manufacturer: Western Digital
Product Type: Hardware
General Information
CategoryHard drives
DescriptionWD Red Pro NAS Hard Drive WD121KFBX - Hard drive - 12 TB - internal - 3.5" - SATA 6Gb/s - 7200 rpm
ManufacturerWestern Digital
UNSPSC43201803
Main Specifications
Dimensions & Weight / Depth147 mm
Dimensions & Weight / Height26.1 mm
Dimensions & Weight / Weight660 g
Dimensions & Weight / Width101.6 mm
Hard Drive / Capacity12 TB
Hard Drive / Form Factor3.5"
Hard Drive / Hard Drive TypeInternal hard drive
Hard Drive / InterfaceSerial ATA-600
Hard Drive / InterfaceSerial ATA-600
Header / BrandWD
Header / Country KitsWorldwide
Packaged Quantity1
Service & Support / Type5-year warranty
Storage / TypeHard drive
Environmental Parameters
Max Operating Temperature65 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Shock Tolerance (non-operating)300 g @ 2 ms
Shock Tolerance (operating)65 g @ 2 ms
Sound Emission20 dBA
Expansion & Connectivity
Compatible Bay3.5"
Interfaces1 x SATA 6 Gb/s
General
Buffer Size256 MB
Capacity12 TB
Depth147 mm
Device TypeHard drive - internal
FeaturesNative Command Queuing (NCQ), Advanced Format technology, 3D Active Balance Plus, Multi-axis shock sensor, 24x7 continuous operation, Error Recovery Control, Conventional magnetic recording (CMR), NASware 3.0 technology, S.M.A.R.T.
Form Factor3.5"
Height26.1 mm
InterfaceSATA 6Gb/s
Weight660 g
Width101.6 mm
Manufacturer Warranty
Service & SupportLimited warranty - 5 years
Miscellaneous
Compliant StandardsRoHS
LocalizationWorldwide
Performance
Drive Transfer Rate600 MBps (external)
Internal Data Rate240 MBps
Spindle Speed7200 rpm
Power
Power Consumption
  • 6 Watt (read)
  • 6 Watt (write)
  • 2.8 Watt (idle)
  • 0.6 Watt (standby)
  • 0.6 Watt (sleep)
Reliability
24x7 OperationYes
Load / Unload Cycles600,000
MTBF1,000,000 hours
Non-Recoverable Errors10 per 10^14
