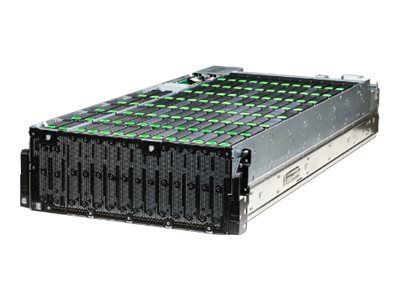

Seagate Exos E 4U106 J12C6XA10600DA

Seagate Exos E 4U106 J12C6XA10600DA

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Storage enclosure
  • 106 bays (SAS-3)
  • HDD 10 TB x 106
  • rack-mountable
  • 4U
Seagate Exos E 4U106 J12C6XA10600DA
  • Storage enclosure
  • 106 bays (SAS-3)
  • HDD 10 TB x 106
  • rack-mountable
  • 4U
  Additional Details
Price: $48,791.00
Mfr Part #: J12C6XA10600DA
SHI Part #: 37082318
Category: Enclosures and frames and backplanes
UNSPSC: 43201600
Manufacturer: Seagate
Product Type: Hardware
General Information
CategoryEnclosures and frames and backplanes
DescriptionSeagate Exos E 4U106 J12C6XA10600DA - Storage enclosure - 106 bays (SAS-3) - HDD 10 TB x 106 - rack-mountable - 4U
Main Specifications
Dimensions & Weight / Depth113.9 cm
Dimensions & Weight / Height17.64 cm
Dimensions & Weight / Weight141 kg
Dimensions & Weight / Width44.1 cm
Hard Drive / Capacity10 TB
Hard Drive / InterfaceSerial Attached SCSI 3
Hard Drive / Interface TypeSerial Attached SCSI 3
Header / BrandSeagate
Miscellaneous / Product ColorBlack
Packaged Quantity1
Service & Support / Type5-year warranty
Storage / Rack-mountableRack-mountable
Storage / TypeStorage enclosure
Built-in Devices2 x I/O module
Installed Devices / Modules Qty106
Supported Devices / Modules Qty106
Supported DrivesSAS-3
Dimensions & Weight
Depth113.9 cm
Height17.64 cm
Weight141 kg
Width44.1 cm
Environmental Parameters
Humidity Range Operating8 - 80% (non-condensing)
Max Operating Temperature35 °C
Min Operating Temperature5 °C
Expansion / Connectivity
Expansion Bays106 (total) / 0 (free) x hot-swap - 3.5"
  • 8 x SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8644)
  • 4 x management - RJ-45
Device TypeStorage enclosure
Enclosure TypeRack-mountable - 4U
Hard Drive
Capacity106 x 10 TB
Interface TypeSAS 12Gb/s
Spindle Speed7200 rpm
TypeHDD - hot-swap
Manufacturer Warranty
Service & SupportLimited warranty - 5 years
Compliant StandardsEN 61000-3-2, EN 61000-3-3, EN55024, CCC, FCC, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, KC, Directive 2009/125/EC, VCCI Class A, KN24, RCM, RoHS 2011/65/EU, BIS, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, KN35, AS/NZS CISPR 32 Class A, EN 55032 Class A, ASHRAE Class A2, ICES-3(A)/NMB-3(A), CAN/CSA-C22.2 No. 60950-1-07
FeaturesSCSI Enclosure Services (SES), hot-swappable fans, out of band management, hot-swappable controllers, hot-swappable IOM
Power DeviceInternal power supply - hot-plug
Power Provided2000 Watt
Power RedundancyYes
Voltage RequiredAC 200-240 V 50/60 Hz
