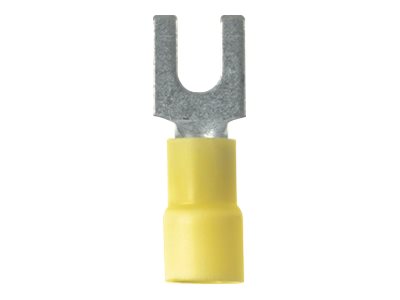

Panduit Pan-Term Type PV-FX


Login for Price
Panduit Pan-Term Type PV-FX

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Cable fork terminal
  • yellow
Panduit Pan-Term Type PV-FX
  • Cable fork terminal
  • yellow
  Additional Details
Mfr Part #: PV10-14FX-L
SHI Part #: 35897968
Category: Electrical cable and accessories
UNSPSC: 26121600
Manufacturer: Panduit
Product Type: Accessories
General Information
CategoryElectrical cable and accessories
DescriptionPanduit Pan-Term Type PV-FX - Cable fork terminal - yellow
ManufacturerPanduit
UNSPSC26121600
Main Specifications
Dimensions & Weight / Height3.1 cm
Dimensions & Weight / Width1.27 cm
Header / BrandPanduit
Miscellaneous / Product ColorYellow
Packaged Quantity1
Product TypeCable fork terminal
Cabling & Wiring
Connector Provided1 x fork terminal
Features12 - 10 AWG
Environmental Parameters
Max Operating Temperature105 °C
General
Enclosure ColorYellow
Height3.1 cm
Product MaterialTinned copper
Product TypeCable fork terminal
Width1.27 cm
Miscellaneous
Features600 V rated operating voltage, color-coded (yellow), large wire, 1/4" stud size, wire strip length 7.9 mm, brazed seam barrel type with insulation support, bottle packaging, standard style, funnel entry barrel configuration, 1.02 mm stock thickness, M6 stud size, 2.5 - 6 mm² wire range, vinyl expanded insulation, 6.4 mm max wire insulation diameter
Quantity of Items per Pack50
