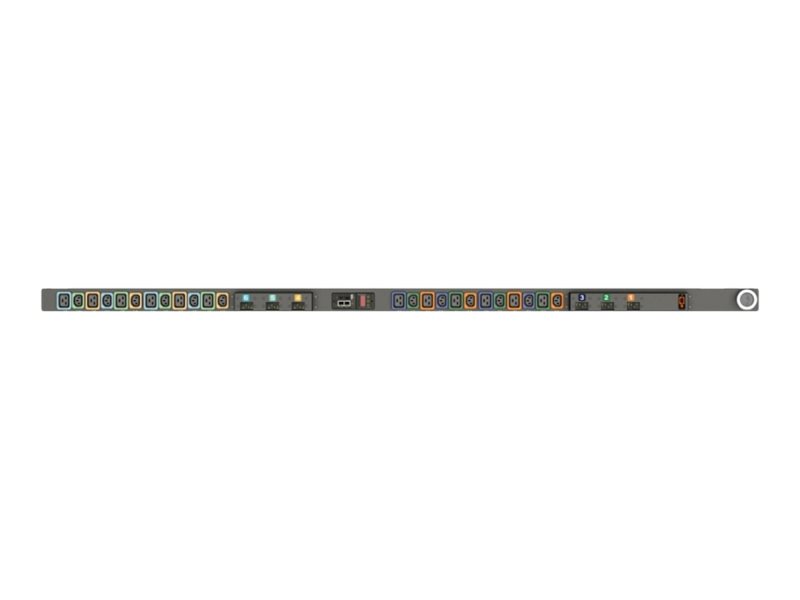

Geist Switched Outlet Level Monitoring EC MNU3EGW1-24PBB8-6PS15D0A10-S-A
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Geist Switched Outlet Level Monitoring EC MNU3EGW1-24PBB8-6PS15D0A10-S-A
- Power distribution unit (rack-mountable)
- AC 208 V
- 17.2 kW
- 3-phase delta
- Ethernet 10/100
- input: IEC 60309 3P+E
- output connectors: 24 (12 x IEC 60320 C13, 12 x IEC 60320 C19)
- 0U
- 3.05 m cord
- black powder coat
| Additional Details | |
|---|---|
| Mfr Part #: | NU30050L |
| SHI Part #: | 35845391 |
| Category: | Power distribution units PDUs |
| UNSPSC: | 39121017 |
| Manufacturer: | Vertiv |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power distribution units PDUs |
| Description | Geist Switched Outlet Level Monitoring EC MNU3EGW1-24PBB8-6PS15D0A10-S-A - Power distribution unit (rack-mountable) - AC 208 V - 17.2 kW - 3-phase delta - Ethernet 10/100 - input: IEC 60309 3P+E - output connectors: 24 (12 x IEC 60320 C13, 12 x IEC 60320 C19) - 0U - 3.05 m cord - black powder coat |
| Manufacturer | Vertiv |
| UNSPSC | 39121017 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.6 cm |
| Dimensions & Weight / Height | 177.8 cm |
| Dimensions & Weight / Width | 5.8 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Geist |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface | Ethernet 10/100 |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 24 |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 5-year warranty with product registration |
| Dimensions & Weight | |
| Depth | 6.6 cm |
| Height | 177.8 cm |
| Width | 5.8 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 9.98 kg |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Cord Length | 3.05 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years with product registration (within 120 days of purchase) |
| Miscellaneous | |
| Cables Included | Power cable 3.05 m |
| Compliant Standards | cUL, UL 60950, RoHS, FCC Part 15 A |
| Features | Vertical orientation, LED display, switched, reboot button, circuit/breaker current monitoring, Visible Light Communication (VLC) technology, U-lock outlets, IP reset button, 6 x 20A double pole magnetic breakers, breaker/switch combination |
| Networking | |
| Remote Management Interface | Ethernet 10/100 |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SMTP, NTP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+E |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 200 - 240 V |
| Input Wiring | 3-phase delta |
| Max Electric Current | 60 A |
| Output Voltage | AC 208 V |
| Power Capacity | 17.2 kW |
| Power Output Connectors Details |
|
