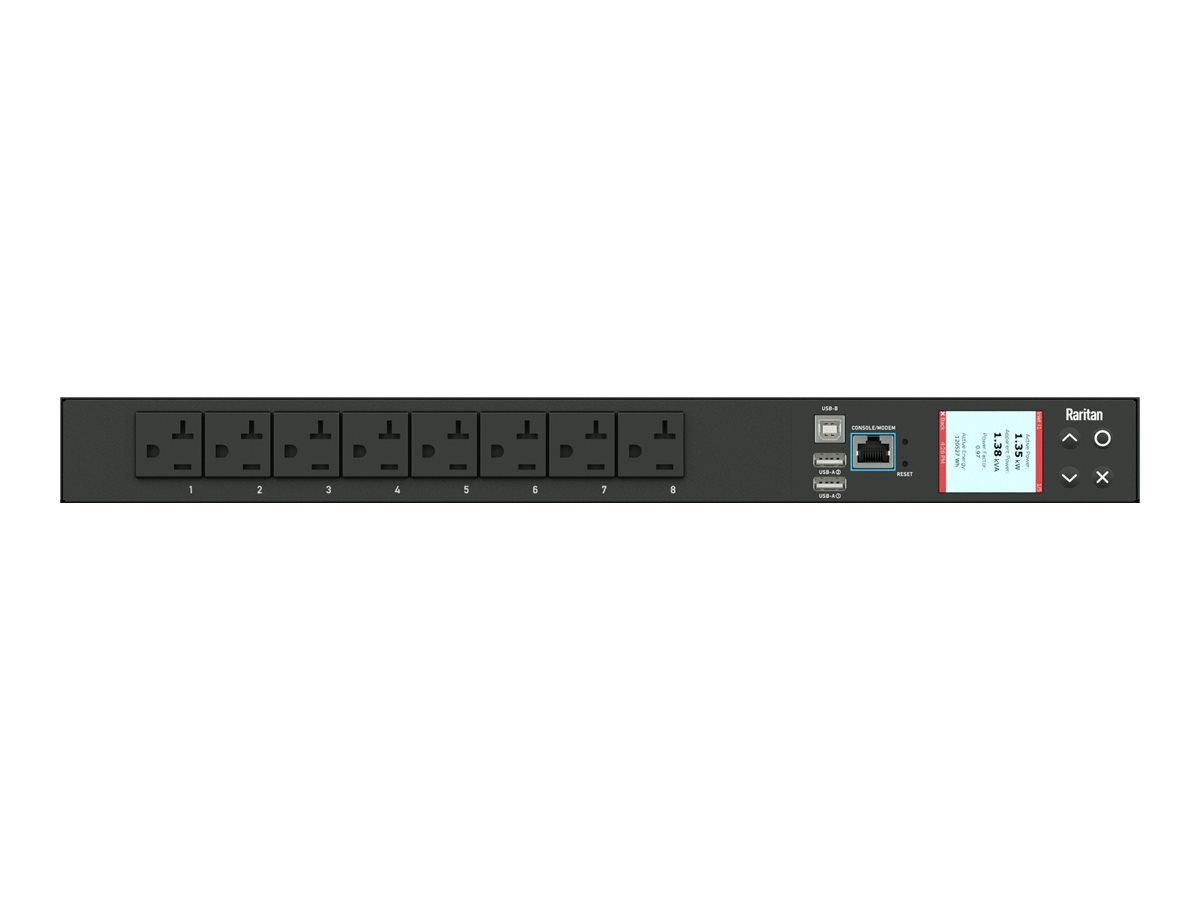

Raritan PX3-1146R - Power distribution unit (rack-mountable)
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Raritan PX3-1146R - Power distribution unit (rack-mountable)
- AC 120 V
- 1900 VA
- 1-phase
- Ethernet 10/100, RS-232, Ethernet 10/100/1000
- input: NEMA L5-20P
- output connectors: 8 (8 x NEMA 5-20R)
- 1U
- 3 m cord
- black powder coat
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX3-1146R |
| SHI Part #: | 35322014 |
| Category: | Power distribution units PDUs |
| UNSPSC: | 39121017 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power distribution units PDUs |
| Description | Raritan PX3-1146R - Power distribution unit (rack-mountable) - AC 120 V - 1900 VA - 1-phase - Ethernet 10/100, RS-232, Ethernet 10/100/1000 - input: NEMA L5-20P - output connectors: 8 (8 x NEMA 5-20R) - 1U - 3 m cord - black powder coat |
| Manufacturer | Legrand |
| MSRP | $615.00 |
| UNSPSC | 39121017 |
| Main Specifications | |
| Dimensions & Weight / Depth | 13.3 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Width | 44 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 8 |
| Power Device / Power Capacity (VA) | 1900 VA |
| Power Device / Voltage Required | AC 120 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 13.3 cm |
| Height | 4.4 cm |
| Width | 44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | UL, ICES-003, RoHS, FCC Part 15 A, cULus |
| Features | Horizontal orientation, tool-less button mount, LCD display, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, metering per input line, ISO/IEC 62053-21 1% metering accuracy, rear feed cord entry, power cable IP44 compliant, voltage meter, environmental sensor ready, 16MB SPI Flash |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L5-20P |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 100 - 120 V |
| Input Wiring | 1-phase |
| Max Electric Current | 20 A |
| Output Voltage | AC 120 V |
| Power Capacity | 1900 VA |
| Power Capacity Details | 1.6 kVA at 100 V, 1.9 kVA at 120 V |
| Power Output Connectors Details | 8 x power NEMA 5-20R 16 A |
