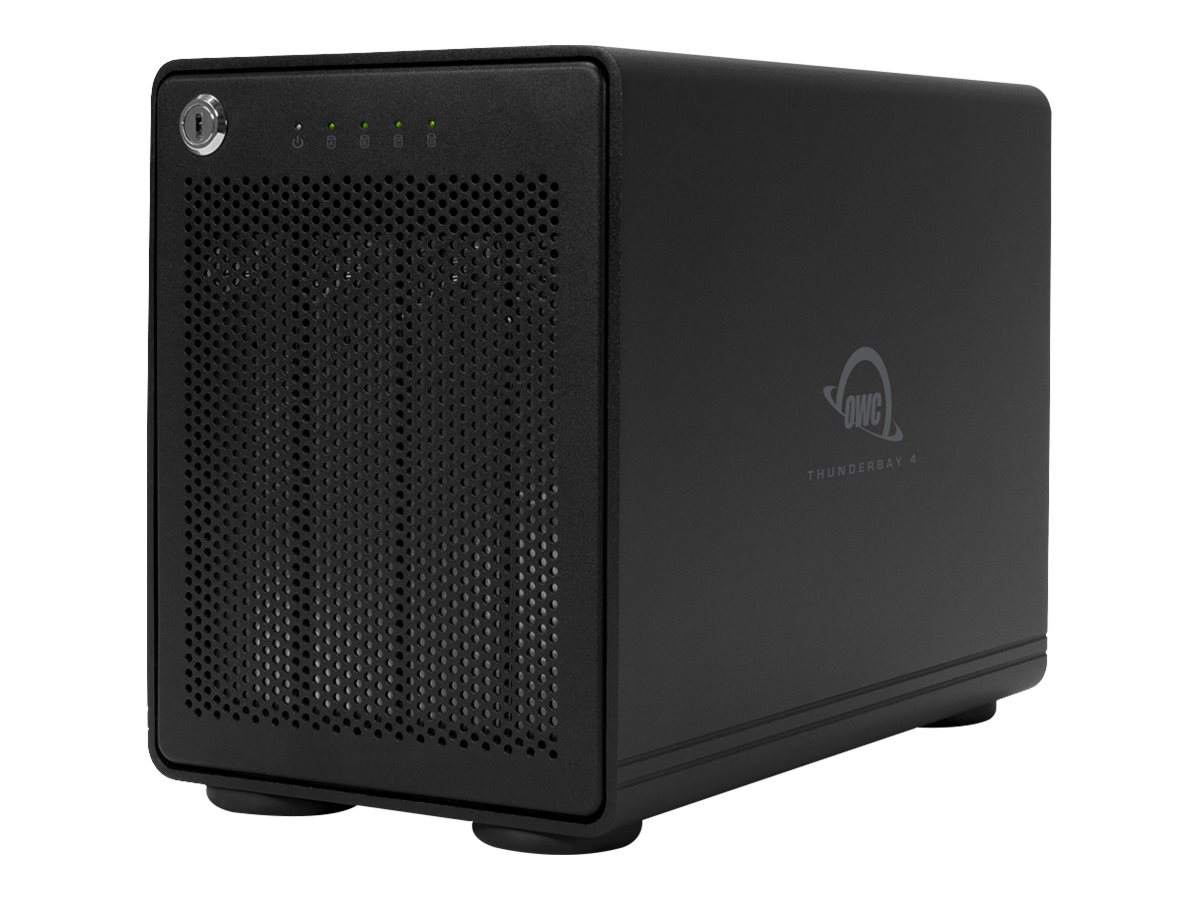

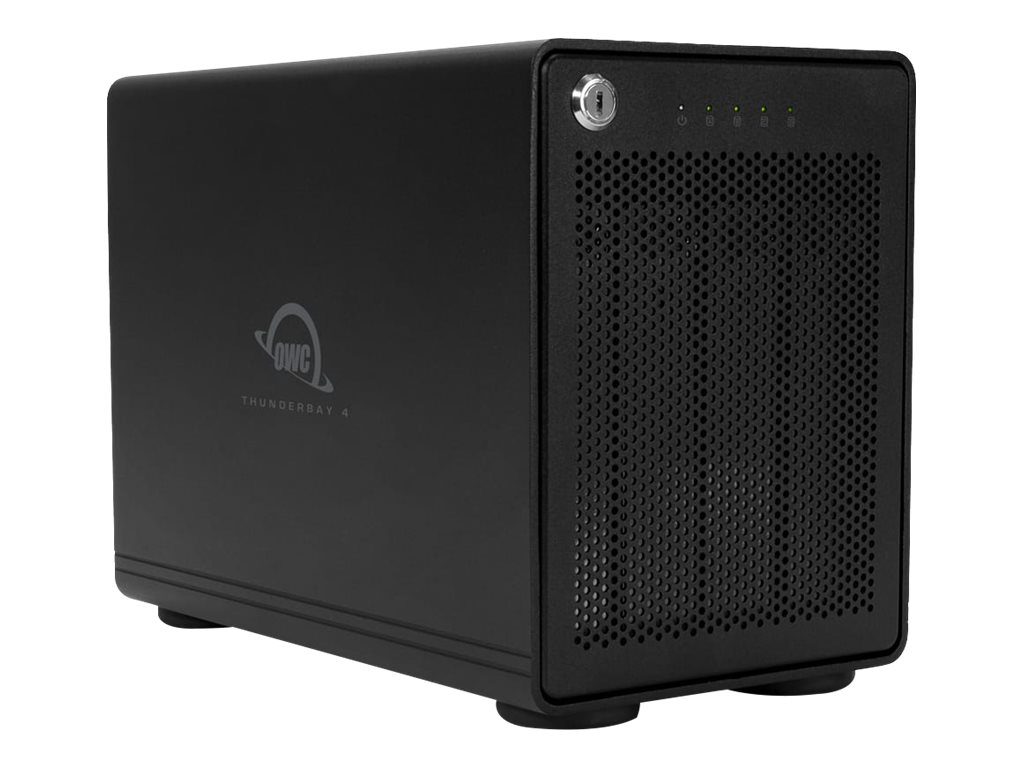

OWC ThunderBay 4 - Hard drive array
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
OWC ThunderBay 4 - Hard drive array
- 48 TB
- 4 bays (SATA-600)
- HDD 12 TB x 4
- Thunderbolt 3 (external)
- with 1 year Level 1 Data Recovery
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | OWCTB3SRT48.0S |
| SHI Part #: | 34852920 |
| Category: | Disk arrays |
| UNSPSC: | 43201802 |
| Manufacturer: | Other World Computing |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Disk arrays |
| Description | OWC ThunderBay 4 - Hard drive array - 48 TB - 4 bays (SATA-600) - HDD 12 TB x 4 - Thunderbolt 3 (external) - with 1 year Level 1 Data Recovery |
| Manufacturer | Other World Computing |
| MSRP | $2,049.99 |
| UNSPSC | 43201802 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.511 cm |
| Dimensions & Weight / Height | 17.678 cm |
| Dimensions & Weight / Width | 13.487 cm |
| Hard Drive / Capacity | 12 TB |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface Type | Serial ATA-600 |
| Header / Brand | OWC |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / HDD Array External Interface | Thunderbolt 3 |
| Storage / HDD Array External Interface Class | Thunderbolt |
| Storage / Total Array Capacity | 48 TB |
| Storage / Type | Hard drive array |
| Chassis | |
| Installed Devices / Modules Qty | 4 |
| Supported Devices / Modules Qty | 4 |
| Supported Drives | SATA-600 |
| Dimensions & Weight | |
| Depth | 24.511 cm |
| Height | 17.678 cm |
| Width | 13.487 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Max Operating Temperature | 42 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Expansion Bays | 4 (total) / 0 (free) x internal - 2.5" / 3.5" shared |

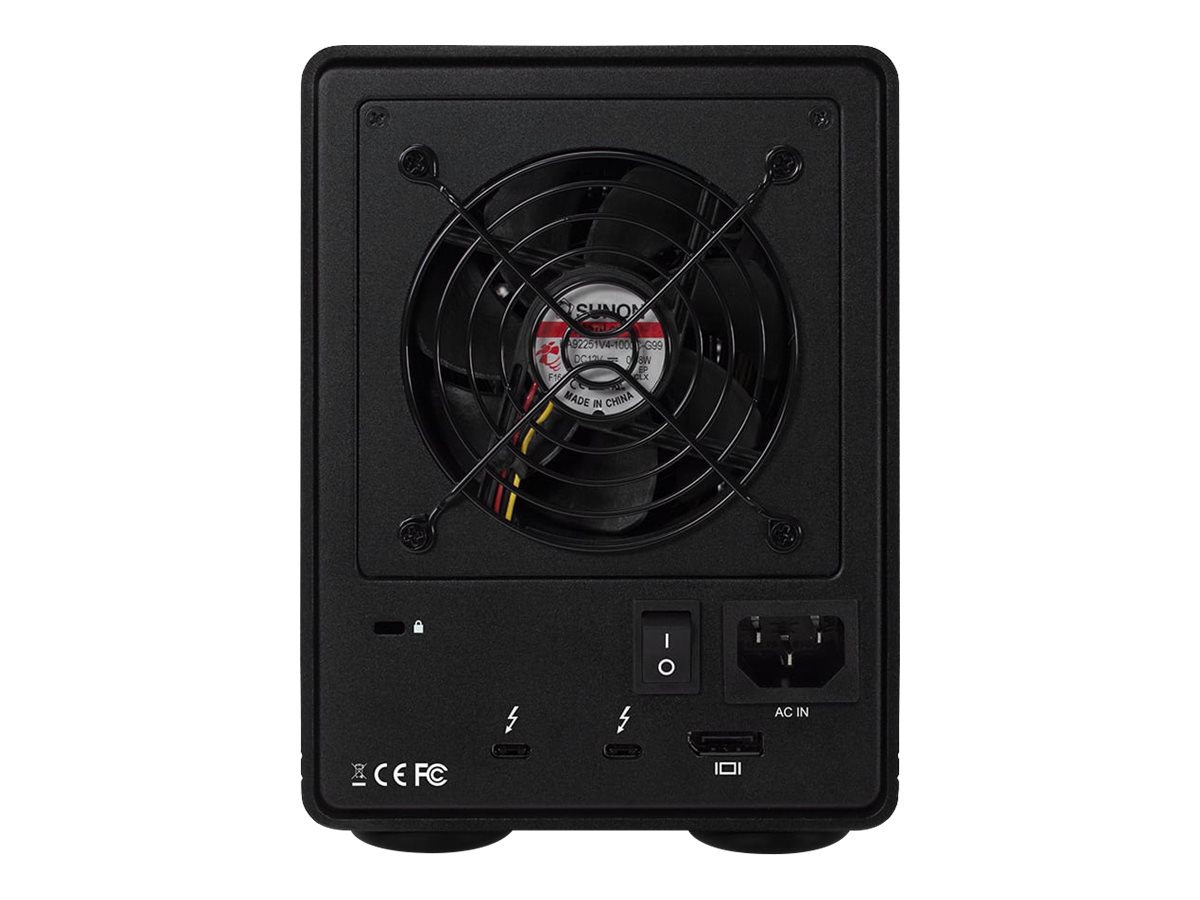

| Interfaces | 2 x Thunderbolt 3 - 9 pin Thunderbolt header |
| General | |
| Device Type | Hard drive array |
| Hard Drive | |
| Capacity | 4 x 12 TB |
| Features | RAID 5 - factory configured |
| Interface Type | SATA 6Gb/s |
| Manufacturer | Seagate |
| Spindle Speed | 7200 rpm |
| Type | HDD |
| Manufacturer Warranty | |
| Bundled Services | 1 year Level 1 Data Recovery |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x Thunderbolt cable - 1 m |
| Features | Security lock slot (cable lock sold separately) |
| Included Accessories | 2 x keys |
| Software Included | Drivers & Utilities, NovaStor NovaBACKUP, Intech Hard Disk Speedtools, ProSoft Engineering Data Backup |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Storage | |
| HDD Array External Interface | Thunderbolt 3 |
| Total Array Capacity | 48 TB |
| Storage Controller | |
| Channel Qty | 4 |
| Interface Type | SATA 6Gb/s |
| Max Storage Devices Qty | 4 |
| Type | SATA |
