ASUS ROG STRIX B350-F GAMING


Login for Price
ASUS ROG STRIX B350-F GAMING

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • ATX
  • Socket AM4
  • AMD B350
  • USB 3.1 Gen 1, USB 3.1 Gen 2
ASUS ROG STRIX B350-F GAMING
  • Motherboard
  • ATX
  • Socket AM4
  • AMD B350
  • USB 3.1 Gen 1, USB 3.1 Gen 2
  • Gigabit LAN
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Mfr Part #: ROG STRIX B350-F GAMING
SHI Part #: 33844235
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASUS
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASUS ROG STRIX B350-F GAMING - Motherboard - ATX - Socket AM4 - AMD B350 - USB 3.1 Gen 1, USB 3.1 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerASUS
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Width30.5 cm
Header / BrandASUS
Mainboard / Chipset TypeAMD B350
Mainboard / Compatible Processors
  • A series
  • Athlon
  • Ryzen
Mainboard / Processor SocketSocket AM4
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecSupremeFX (S1220A)
Compliant StandardsHigh Definition Audio
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 2 x PCIe 3.0 x16 (x16/x0, x8/x4 mode (with AMD Ryzen CPU); x8/x0 mode (with AMD 7th Generation A-series/Athlon CPU))
  • 3 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16 (x4 mode)

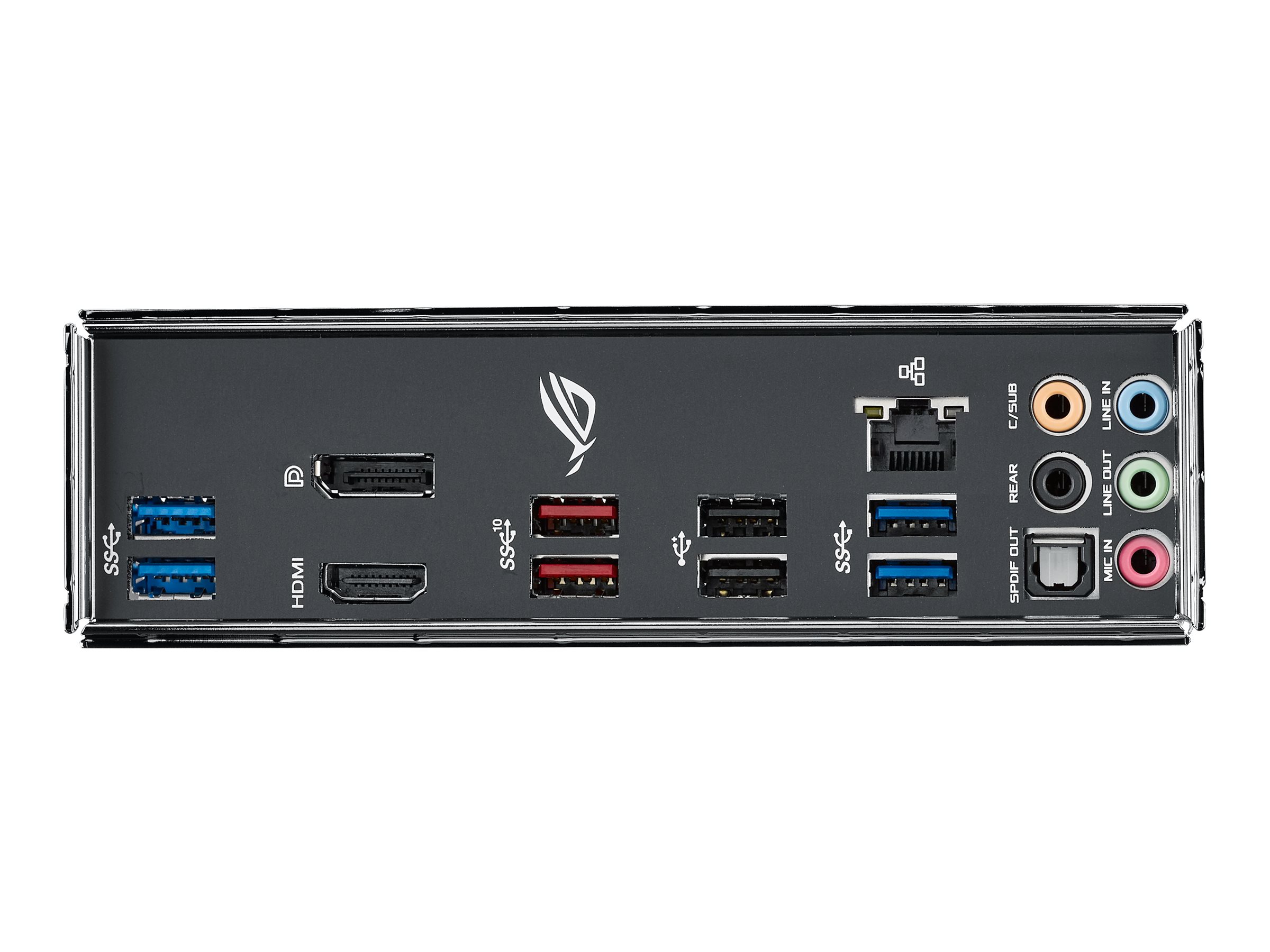

Interfaces
  • 1 x LAN (Gigabit Ethernet)
  • 4 x USB 3.1 Gen 1
  • 1 x audio line-in - mini-jack
  • 1 x audio line-out - mini-jack
  • 1 x microphone - mini-jack
  • 1 x TOSLINK
  • 2 x USB 3.1 Gen 2
  • 1 x HDMI
  • 1 x audio line-out (center/subwoofer) - mini-jack
  • 1 x audio line-out (rear) - mini-jack
  • 2 x USB 2.0
  • 1 x DisplayPort
Internal Interfaces
  • 4 x USB 2.0 - header
  • 2 x USB 3.1 Gen 1 - header
  • 1 x serial - header
  • 1 x audio - header
Power Connectors24-pin main power connector, 8-pin ATX12V connector
Storage Interfaces
  • SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
  • SATA-600 -connectors: 2 x 7pin Serial ATA
  • SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Features
BIOS FeaturesWfM 2.0 support, Multilingual BIOS, UEFI BIOS, ASUS EZ Flash 3, DMI 3.0 support, SMBIOS 3.0 support, ACPI 6.1 support
BIOS TypeAMI
Hardware FeaturesJack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, GPU Boost, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, ASUS TurboV, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, AMD 3-way CrossFireX technology support, ASUS Enhanced DRAM Overcurrent Protection, ASUS Stainless Steel Back I/O, dual headphone amplifiers, Dual Intelligent Processors 5, LANGuard, ASUS Gamer's Guardian, AURA RGB Lighting Control, ASUS Fan Xpert 4, ASUS SafeSlot, 3D printing friendly, Sonic Radar III, Sonic Studio III
General
Chipset TypeAMD B350
Compatible ProcessorsAthlon, A series, Ryzen (supports 7th Generation A-series / Athlon)
Max Processors Qty1
Processor SocketSocket AM4
Product TypeMotherboard - ATX
Graphics
Max Allocated RAM Size2048 MB
LAN
Network ControllerIntel I211-AT
Network InterfacesGigabit Ethernet
Miscellaneous
Cables Included4 x Serial ATA cable
Compliant StandardsPlug and Play
Depth24.4 cm
Included AccessoriesCable ties, cable labels, 1 x M.2 screw, I/O back cover, ROG fan stickers, ROG coasters, RGB (RGBW) LED strip extension cable
Software IncludedDrivers & utilities, ASUS AI Charger, ROG CPU-Z, ASUS AI Suite III, ASUS EZ Update, Antivirus (OEM version), Overwolf, ROG GameFirst IV, ASUS ROG RAMCache II, ROG CloneDrive
Width30.5 cm
Supported RAM
Bus Clock2400 MHz, 2133 MHz, 2666 MHz, 2933 MHz (O.C.), 3200 MHz (O.C.)
FeaturesDual channel memory architecture
Max Size64 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC
TechnologyDDR4
