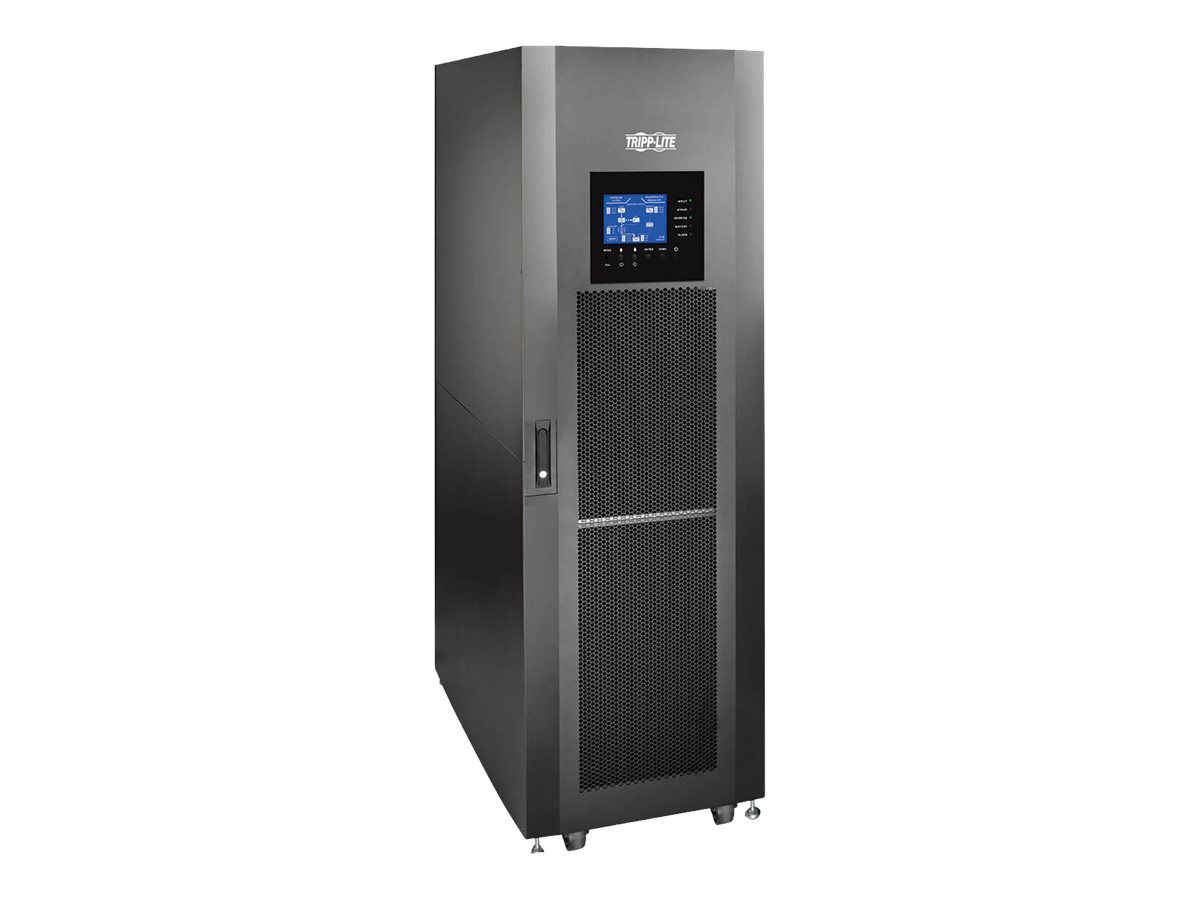

Tripp Lite SmartOnline SVX Series 30kVA 400/230V 50/60Hz Modular Scalable 3-Phase On-Line Double-Conversion Medium-Frame UPS System, 3 Battery Modules
MSRP$38,235.60
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Tripp Lite SmartOnline SVX Series 30kVA 400/230V 50/60Hz Modular Scalable 3-Phase On-Line Double-Conversion Medium-Frame UPS System, 3 Battery Modules
- UPS
- 400 A
- AC 220/230/240/380/400/415 V
- 30 kW
- 30000 VA
- 3-phase WYE (star)
- RS-232
- PFC
- black, RAL 9005
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $38,235.60 |
| Mfr Part #: | SVX30KM1P3B |
| SHI Part #: | 33276781 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | Tripp Lite |
| Product Type: | Hardware |
Computer Services
- Extended service agreement
- parts and labor
- 1 year
- on-site
- 24x7
MSRP $9,376.20
$6,260.00
- Premium
- Extended service agreement
- parts and labor
- 1 year
- on-site
- 24x7
MSRP $10,364.40
$6,920.00
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | Tripp Lite SmartOnline SVX Series 30kVA 400/230V 50/60Hz Modular Scalable 3-Phase On-Line Double-Conversion Medium-Frame UPS System, 3 Battery Modules - UPS - 400 A - AC 220/230/240/380/400/415 V - 30 kW - 30000 VA - 3-phase WYE (star) - RS-232 - PFC - black, RAL 9005 |
| Manufacturer | Tripp Lite |
| MSRP | $38,235.60 |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 110 cm |
| Dimensions & Weight / Height | 201 cm |
| Dimensions & Weight / Weight | 620.51 kg |
| Dimensions & Weight / Width | 60 cm |
| General / Subcategory | UPS |
| Header / Brand | Tripp Lite |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface | RS-232 |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Power Capacity (VA) | 30000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 220/230/240/380/400/415 V |
| Product Type | UPS |
| Service & Support / Type | 2-year warranty |
| Battery | |
| Quantity | 3 (installed) / 5 (supported) |
| Run Time (Up To) |
|
| Transfer Time | 0 ms |
| Type | Expandable |
| Dimensions & Weight | |
| Depth | 110 cm |
| Height | 201 cm |
| Weight | 620.51 kg |
| Width | 60 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 122 cm |
| Shipping Height | 217.5 cm |
| Shipping Weight | 707 kg |
| Shipping Width | 75 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 73 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 expansion slot |
| Interfaces |
|
| General | |
| Color | Black, RAL 9005 |
| Device Type | UPS - Power Factor Correction (PFC) - external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | TUV, IEC 62040-2, RoHS, WEEE, EN 62040-2, IP20, IEC 62040-1, EN 62040-1 |
| Features | Audible alarm, LCD display, LED indicators, overvoltage protection, built-in bypass switch, overload protection, undervoltage protection, cold-start function, hot swappable PSU, cooling fan, hot-swappable batteries, Eco-Mode |
| Networking | |
| Remote Management Interface | RS-232 |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50/60 Hz ± 0.1Hz |
| Frequency Required | 40 - 70 Hz ± 0.1Hz |
| Input Connectors | Hardwire |
| Input Voltage | AC 220/230/240/380/400/415 V |
| Input Wiring | 3-phase WYE (star) |
| Max Electric Current | 400 A |
| Output Voltage | AC 220/230/240/380/400/415 V 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 30 kW / 30000 VA |
| Power Factor (PF) | 0.99 |
| Power Modules Qty | 1 |
| Power Output Connectors Details | Hardwire |
| Supported Power Modules Qty | 3 |
| Surge Energy Rating | 2496 Joules |
| Surge Suppression | Yes |
| Total Harmonic Distortion (THD) | 3 % |
| UPS Technology | On-line |
