Corsair HX Series HX1200
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

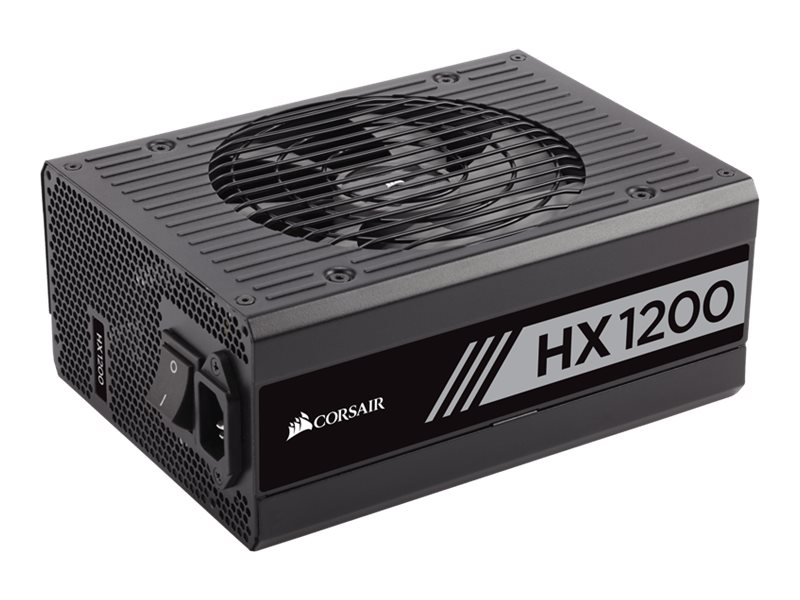

Corsair HX Series HX1200
- Power supply (internal)
- ATX12V 2.4/ EPS12V 2.92
- 80 PLUS Platinum
- AC 100-240 V
- 1200 Watt
- North America
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | CP-9020140-NA |
| SHI Part #: | 33269996 |
| Category: | Power supply units |
| UNSPSC: | 39121004 |
| Manufacturer: | CORSAIR |
| Product Type: | Hardware |
| Product Line: | Corsair Microsystems |
| General Information | |
|---|---|
| Category | Power supply units |
| Description | Corsair HX Series HX1200 - Power supply (internal) - ATX12V 2.4/ EPS12V 2.92 - 80 PLUS Platinum - AC 100-240 V - 1200 Watt - North America |
| Manufacturer | CORSAIR |
| MSRP | $294.99 |
| UNSPSC | 39121004 |
| Main Specifications | |
| Dimensions & Weight / Depth | 20 cm |
| Dimensions & Weight / Height | 8.6 cm |
| Dimensions & Weight / Weight | 2.3 kg |
| Dimensions & Weight / Width | 15 cm |
| General / Subcategory | Power supplies |
| Header / Brand | CORSAIR |
| Header / Country Kits | North America |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Internal |
| Power Device / Power Supply Compatibility | PC/Server |
| Power Device / Voltage Required | AC 100-240 V |
| Product Type | Power supply |
| Service & Support / Type | 10-year warranty |
| Dimensions & Weight | |
| Depth | 20 cm |
| Height | 8.6 cm |
| Weight | 2.3 kg |
| Width | 15 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 39.2 cm |
| Shipping Height | 15.2 cm |
| Shipping Weight | 4.95 kg |
| Shipping Width | 22.5 cm |
| General | |
| Device Type | Power supply - internal |
| Localization | North America |
| PSU Form Factor | ATX |
| Specification Compliance | ATX12V 2.4/ EPS12V 2.92 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Miscellaneous | |
| Cables Included | Power cable kit |
| Compliant Standards | CSA, UL, TUV, C-Tick, cUL, CB, FCC, RoHS, WEEE, ICES, REACH, KC, China RoHS, RCM, CU |

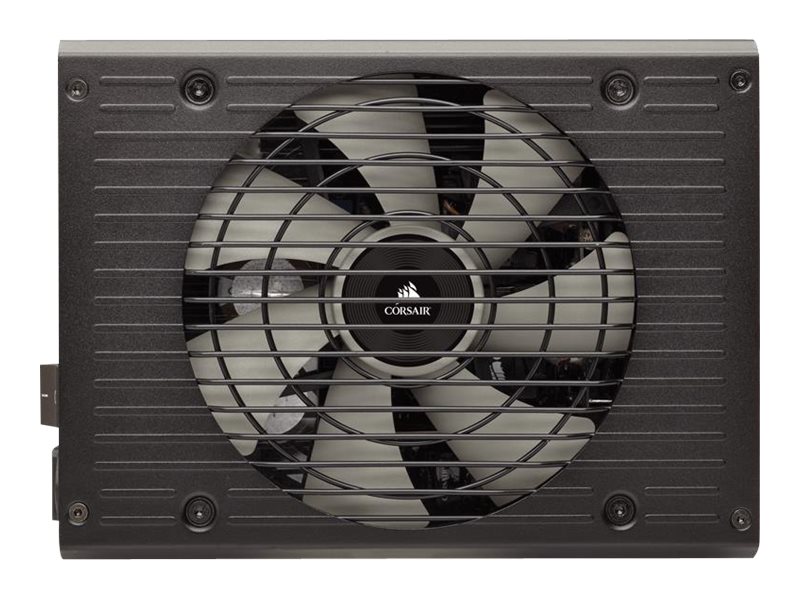

| Cooling System | 135 mm fan |
| Features | Overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, single 12V rail, temperature controlled fan, Zero RPM fan mode, fluid dynamic bearing cooling fan, temperature sensor, multiple 12V rails, fully modular |
| Included Accessories | Case badge, cable ties, mounting kit |
| Power Device | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Frequency Required | 47 - 63 Hz |
| Input Voltage | AC 100-240 V |
| Modular Cable Management | Yes |
| Output Current |
|
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 1200 Watt |
| Power Output Connectors Details |
|
