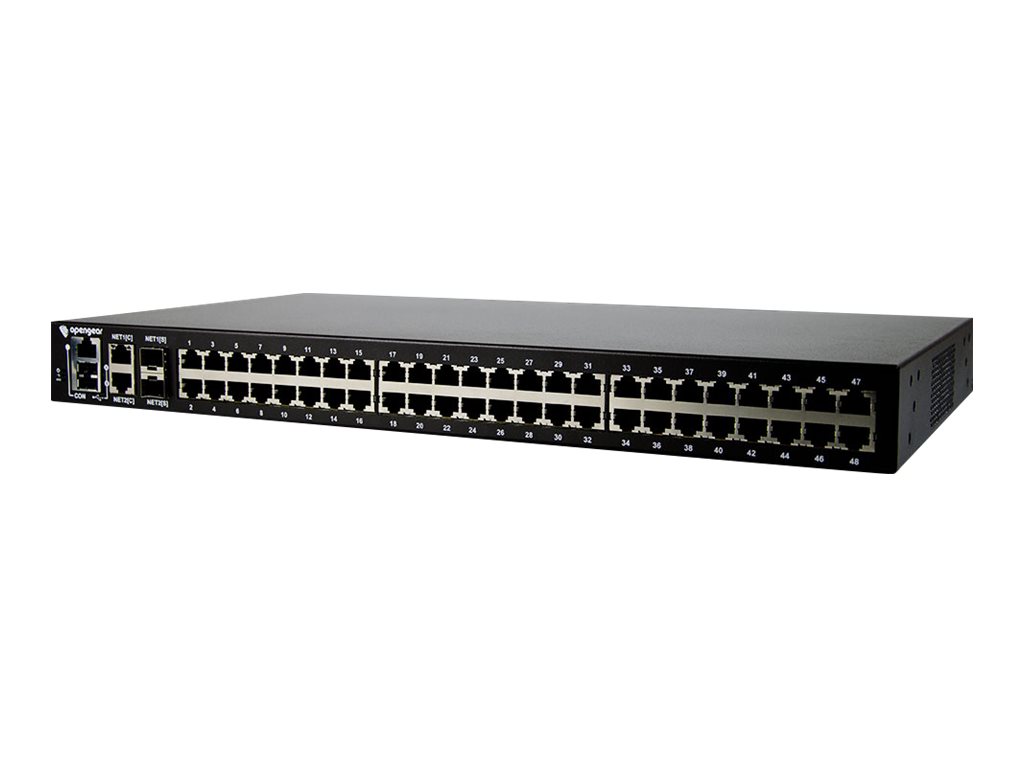

Opengear CM7196A-2-DAC

MSRP$7,978.00
$7,314.00
Opengear CM7196A-2-DAC
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Console server
  • 96 ports
  • GigE, RS-232
  • 1U
Opengear CM7196A-2-DAC
  • Console server
  • 96 ports
  • GigE, RS-232
  • 1U
  Additional Details
Price: $7,314.00
MSRP: $7,978.00
Mfr Part #: CM7196A-2-DAC-US
SHI Part #: 33085973
Category: Multistation access units (MAUs)
UNSPSC: 43222630
Manufacturer: Opengear
Product Type: Hardware

Power Management

Opengear - Power cable
Opengear - Power cable
  • GB 2099
  • 1.8 m
  • China
  • for Opengear CM7116, CM7148, IM7208, IM7216, IM7232, IM7248, OM2216, OM2224, OM2232, OM2248
$11.00
Opengear - Power cable
Opengear - Power cable
  • 1.8 m
  • black
  • Australia
  • for Opengear CM7116, CM7148, IM7208, IM7216, IM7232, IM7248, OM2216, OM2224, OM2232, OM2248
$11.00
Opengear - Power cable
Opengear - Power cable
  • 1.8 m
  • black
  • Japan
  • for Opengear CM7116, CM7148, IM7208, IM7216, IM7232, IM7248, OM2216, OM2224, OM2232, OM2248
$11.00
General Information
CategoryMultistation access units (MAUs)
DescriptionOpengear CM7196A-2-DAC - Console server - 96 ports - GigE, RS-232 - 1U
ManufacturerOpengear
MSRP$7,978.00
UNSPSC43222630
Main Specifications
Dimensions & Weight / Depth17.5 cm
Dimensions & Weight / Height4.5 cm
Dimensions & Weight / Weight4 kg
Dimensions & Weight / Width44 cm
Header / BrandOpengear
Header / Country KitsUnited States
Networking / Connectivity TechnologyWired
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • RS-232
Networking / Data Transfer Rate230.4 Kbps
Networking / Form FactorExternal
Networking / Ports Qty96
Networking / TypeConsole server
Packaged Quantity1
Service & Support / Type4-year warranty
Environmental Parameters
Humidity Range Operating5 - 90%
Max Operating Temperature50 °C
Min Operating Temperature5 °C
Expansion / Connectivity
Interfaces
  • 96 x RS-232 - RJ-45
  • 2 x 1000Base-T - RJ-45
  • 2 x Ethernet 1000 - SFP (mini-GBIC)
  • 1 x management - RJ-45
  • 2 x USB 2.0 - Type A
General
Depth17.5 cm
Device TypeConsole server
Height4.5 cm
Height (Rack Units)1U
LocalizationUnited States
Weight4 kg
Width44 cm
Manufacturer Warranty
Service & SupportLimited warranty - 4 years
Miscellaneous
Compliant StandardsTUV, C-Tick, ICES-003, UL 1950, EN 61000-4-4, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, RoHS, FIPS 140-2, FCC Part 15 B Class A, EN 55024-2:1998+A1:2001+A2:2003, EN 61000-4-2:2009, AS/NZS CISPR22:2004 Class A, EN55022:1998 + A1:2000 + A2:2003 Class A
Included AccessoriesRack mount kit
Networking
Authentication MethodKerberos, RADIUS, PAP, CHAP, TACACS+, Secure Shell v.2 (SSH2), LDAP, Active Directory
Connectivity TechnologyWired
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, RS-232
Data Transfer Rate230.4 Kbps
Encryption AlgorithmSSL, FIPS 140-2
FeaturesVPN support, Syslog support, IPv6 support, IP address filtering, event log, Trivial File Transfer Protocol (TFTP) support, SSH support, DHCP server, FTP server, port forwarding, Stateful Packet Inspection Firewall (SPIF), Zero Touch Auto Provisioning, 4KV ESD Protector, Cisco straight pinout
Form FactorExternal
Network / Transport ProtocolNTP, IPSec, FTP, DHCP, DDNS
Performance
  • Firewall throughput: 700 Mbps
  • VPN throughput: 140 Mbps
Ports Qty96
Remote Management ProtocolSNMP, HTTPS, TFTP, SSH
Status IndicatorsPower, link/activity
Power
Installed Qty2
Power Consumption Operational35 Watt
Power DeviceInternal power supply
Power RedundancyYes
Voltage RequiredAC 120/230 V
Processor / Memory / Storage
Flash Memory64 GB
Processors Installed1 x Marvell 88F6W11 800 MHz
RAM2 GB DDR3 SDRAM
Software / System Requirements
OS ProvidedLinux
