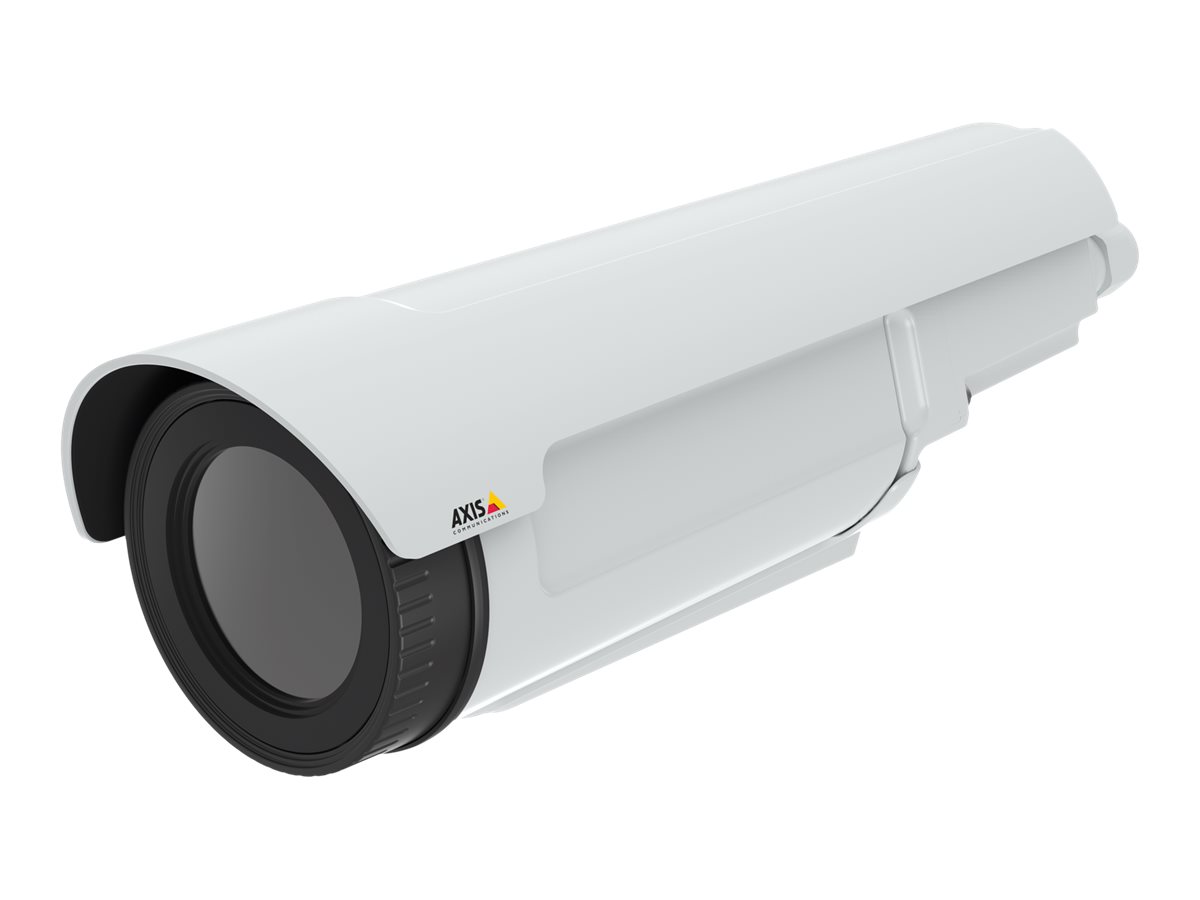

AXIS Q1942-E PT Mount
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
AXIS Q1942-E PT Mount
- Thermal network camera
- bullet
- outdoor
- weatherproof
- 640 x 480
- fixed focal
- LAN 10/100
- MJPEG, H.264, AVC, MPEG-4 Part 10
- DC 8
- 28 V / AC 20
- 24 V / PoE Plus Class 3
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 0986-001 |
| SHI Part #: | 33018033 |
| Category: | Surveillance and detection equipment |
| UNSPSC: | 46171600 |
| Manufacturer: | Axis Communications |
| Product Type: | Hardware |
Control/Interface Boards
- Repeater
- 100Mb LAN
- 10Base-T, 100Base-TX
- RJ-45 / RJ-45
- up to 1 km
- for AXIS AXIS P3245, D3110, M4308, P1455, Q1942, Q1951, Q1952, Q6315-LE 50, Q6315-LE 60
Flash Drives (USB)
- 64 GB
- Class 10
- microSDXC
- white
- for AXIS D201, M3085, M3086, M4308, M5075, P3818, Q1656, Q1715, Q1942, Q6100; P37 Series
- 64 GB
- Class 10
- microSDXC
- white (pack of 10)
- for AXIS D201, M4308, P3818, Q1656, Q1715, Q1951, Q1952, Q6100, V5938 50; P37 Series
- 256 GB
- Video Class V30 / UHS Class 3 / Class10
- microSDXC
- white
- for AXIS D3110, M3085, M3086, M5075, P3818, Q1656, Q1715, Q1942, Q3538, Q6100; P37 Series
| General Information | |
|---|---|
| Category | Surveillance and detection equipment |
| Description | AXIS Q1942-E PT Mount - Thermal network camera - bullet - outdoor - weatherproof - 640 x 480 - fixed focal - LAN 10/100 - MJPEG, H.264, AVC, MPEG-4 Part 10 - DC 8 - 28 V / AC 20 - 24 V / PoE Plus Class 3 |
| Manufacturer | Axis Communications |
| MSRP | $7,499.00 |
| UNSPSC | 46171600 |
| Main Specifications | |
| Dimensions & Weight / Depth | 30.9 cm |
| Dimensions & Weight / Height | 10.5 cm |
| Dimensions & Weight / Weight | 2 kg |
| Dimensions & Weight / Width | 10.5 cm |
| Header / Brand | Axis |
| Header / Country Kits |
|
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Camera | |
| Digital Video Format | MJPEG, H.264, AVC, MPEG-4 Part 10 |
| Features | Sharpness control, brightness control, contrast control, image mirror, heater, Privacy Mask Function, NAS-Ready, password protection, Variable Bitrate (VBR), Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, Pixel Counter Support, digest authentication, IP address filtering, electronic image stabilization, exposure zone, guard tour, HTTPs encryption, thermal sensitivity 50 mK (NETD), signed firmware, Adaptive Bitrate (ABR), VAPIX support, compression, text overlay, 180° image rotation, memory card encryption, user access log, centralized certificate management, brute force delay protection, Multi-Bitrate (MBR), control queue, 1833m human detection, 5623m vehicle detection, 458m human recognition, 1406m vehicle recognition, 229m human identification, 703m vehicle identification |
| Flash Memory | 256 MB |
| Frame Rate (max) | 8.3 frames per second |
| Max Digital Video Resolution | 640 x 480 |
| Motion Detection | Yes |
| RAM | 512 MB |
| Type | - fixed - outdoor - weatherproof |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 10 - 100% RH (condensing) |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Camera Mount Type | Positioning unit mount |
| Connectivity Technology | Wired |
| Depth | 30.9 cm |
| Device Type | Thermal network camera |
| Form Factor | Bullet |
| Height | 10.5 cm |
| Localization | Argentina, Australia, China, Japan, Korea, Brazil, United Kingdom, United States, Europe |
| Weight | 2 kg |
| Width | 10.5 cm |
| Image Sensor | |
| Type | Uncooled Micro bolometer |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, LLDP, USGv6, MQTT |
| Lens Construction | |
| Focal Length | 60 mm |
| Horizontal Field of View (degree) | 10 |
| Lens Iris | F/1.25 |
| Min Focus Distance | 91 m |
| Type | Fixed focal |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Color | White, NCS S 1002-B |
| Compliant Standards | EN55024, IEC 60529 IP66, EN 61000-6-1, EMC, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-27, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-52, EN 50121-4, IEC 62236-4, VCCI Class A, EN 50581, RCM, EN 55022 Class A, KN35, NEMA250 Type 4X, KN32 Class A, EN 62368-1, IEEE 802.3af, IEEE 802.3at, AS/NZS CISPR22 Class A, NIST SP500-267, MIL-STD 810F 521.3, IEC 60068-2-6 Class 4M4, IEC 60721-3-4 Class 4K3 |
| Included Accessories | Terminal block connectors, Torx T20 screw driver |
| Power | |
| Power Requirements | DC 8 - 28 V / AC 20 - 24 V / PoE Plus Class 3 |
| Software / System Requirements | |
| Software Included | Windows decoder 1-user license, AXIS Fence Guard, AXIS Video Motion Detection, AXIS Loitering Guard, AXIS Motion Guard |
