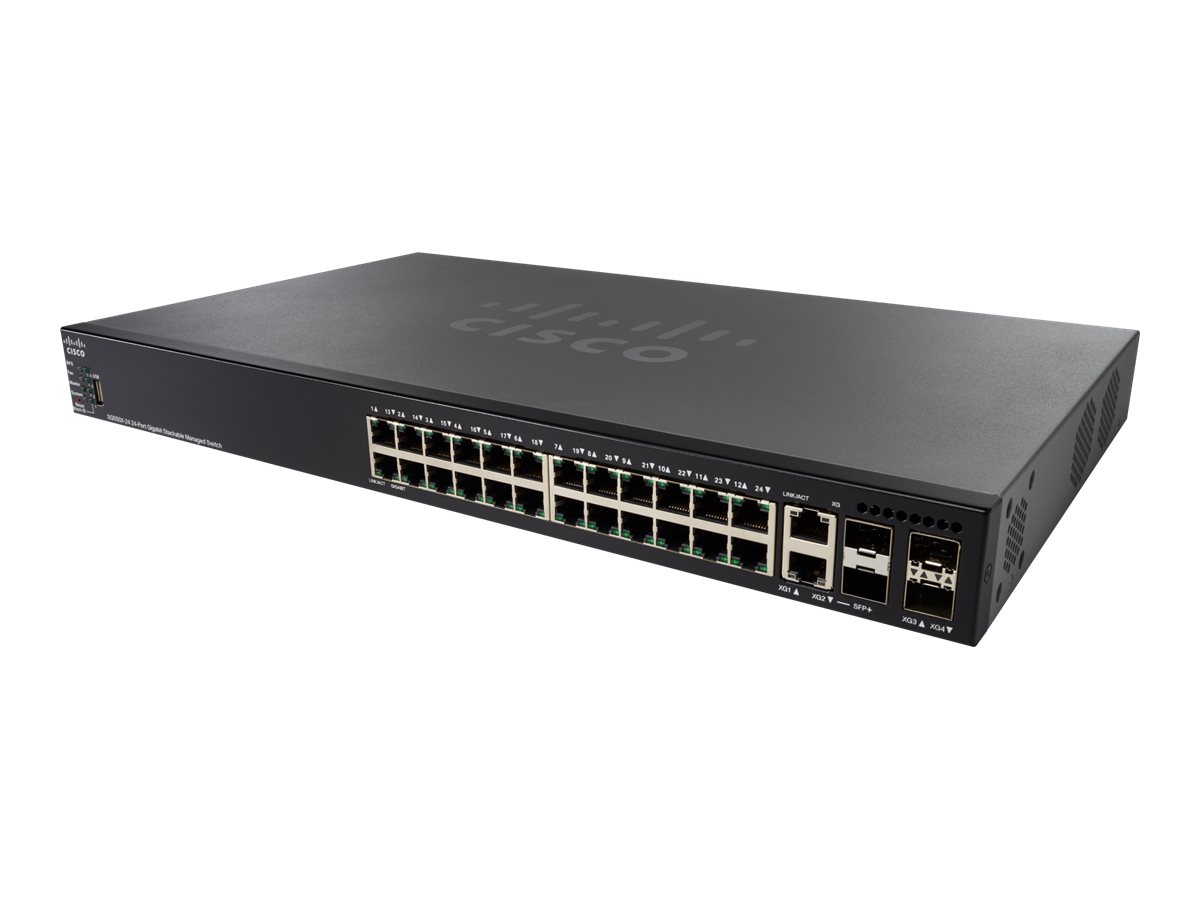

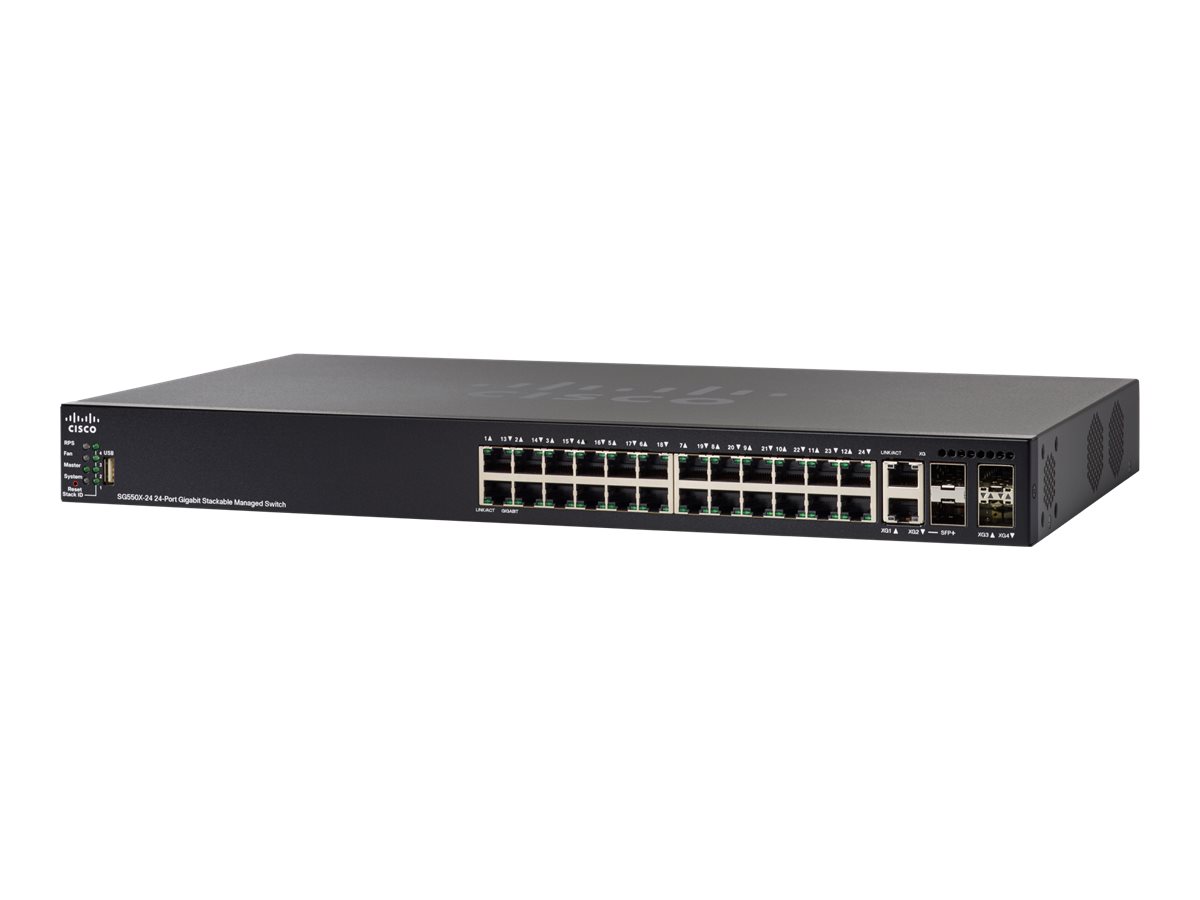

Cisco 550X Series SF550X-24MP
MSRP$1,969.98
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Cisco 550X Series SF550X-24MP
- Switch
- L3
- managed
- 24 x 10/100 (PoE+) + 2 x 10 Gigabit SFP+ (uplink) + 2 x combo 10GBase-T (uplink)
- rack-mountable
- PoE+ (382 W)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,969.98 |
| Mfr Part #: | SF550X-24MP-K9-NA |
| SHI Part #: | 32635260 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Cisco Systems |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Cisco 550X Series SF550X-24MP - Switch - L3 - managed - 24 x 10/100 (PoE+) + 2 x 10 Gigabit SFP+ (uplink) + 2 x combo 10GBase-T (uplink) - rack-mountable - PoE+ (382 W) |
| Manufacturer | Cisco Systems |
| MSRP | $1,969.98 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 35 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 4.74 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | Cisco |
| Header / Country Kits | North America |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 24 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 35 cm |
| Height | 4.4 cm |
| Weight | 4.74 kg |
| Width | 44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az |
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable |
| Encryption Algorithm | MD5, SSL |
| Features | DHCP support, BOOTP support, ARP support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, High Availability, Multicast Storm Control, Unicast Storm Control, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, Remote Switch Port Analyzer (RSPAN), IP-MAC binding, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Multicast VLAN Registration (MVR), dual firmware images, Class of Service (CoS), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), Denial of Service (DoS), 802.1x authentication, Duplicated Address Detection, Type of Service (ToS), DiffServ Code Point (DSCP) support, 1.5MB packet buffer, IP source guard, ARP inspection, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Secure Copy (SCP), Cisco Discovery Protocol, IGMP querier, VLAN Double Tagging (Q-in-Q), VLAN mirroring, DNS client, Voice VLAN, Secure Core Technology (SCT), LLDP-MED, Head-of-line (HOL) blocking, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, RA guard, Guest VLAN, STP BPDU Guard, User Datagram Protocol (UDP) |
| Flash Memory | 256 MB |
| Jumbo Frame Support | 9000 bytes |
| MAC Address Table Size | 16K entries |
| Max Units In A Stack | 8 |
| Performance |
|
| PoE Budget | 382 W |
| Ports | 24 x 10/100 (PoE+) + 2 x 10 Gigabit SFP+ (uplink) + 2 x combo 10GBase-T (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| Processor | X ARM: 800 MHz |
| RAM | 512 MB |
| Remote Management Protocol | SNMP 1, SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, SCP |
| Routing Protocol | RIP-2, IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, VRRPv2, VRRPv3, CIDR |
| Status Indicators | Port transmission speed, system, RPS (Redundant Power Supply), link/activity, fan |
| Subtype | Fast Ethernet |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | 1 x serial cable |
| Compliant Standards | UL 60950, FCC Part 15 A, CSA 22.2, FCC CFR47 Part 15 A, USGv6 |
| Localization | North America |
| MTBF | 575,569 hours |
| Rack Mounting Kit | Included |
| Power | |
| Power Consumption Operational | 452 Watt |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 3+1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
