Transition Networks Ethernet Over Coax Extender
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

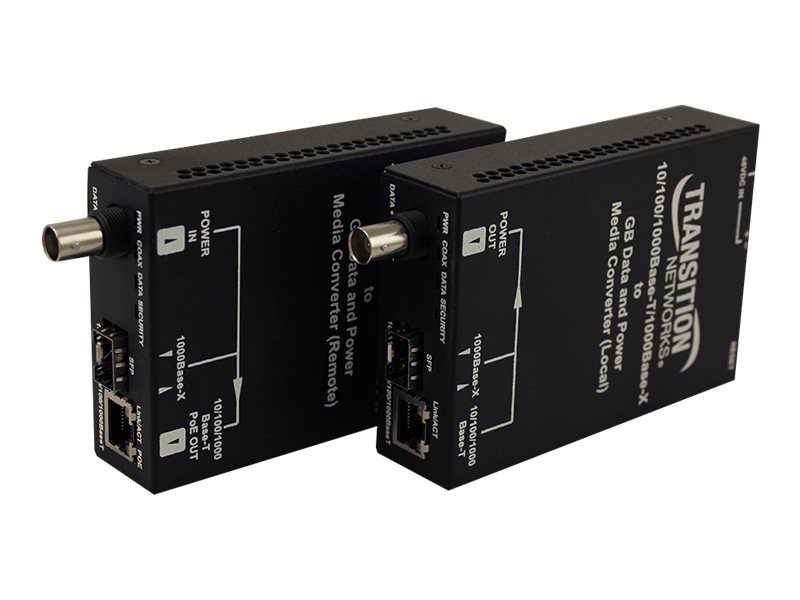

Transition Networks Ethernet Over Coax Extender
- Media converter
- GigE
- 10Base-T, 100Base-TX, 1000Base-T, Coax, 1000Base-X
| Additional Details | |
|---|---|
| Mfr Part #: | EOCPD4020-110 |
| SHI Part #: | 32592590 |
| Category: | Channel converter |
| UNSPSC: | 43201540 |
| Manufacturer: | Transition Networks |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Channel converter |
| Description | Transition Networks Ethernet Over Coax Extender - Media converter - GigE - 10Base-T, 100Base-TX, 1000Base-T, Coax, 1000Base-X |
| Manufacturer | Transition Networks |
| UNSPSC | 43201540 |
| Main Specifications | |
| Dimensions & Weight / Depth | 3.175 cm |
| Dimensions & Weight / Height | 13.67 cm |
| Dimensions & Weight / Weight | 480 g |
| Dimensions & Weight / Width | 8.25 cm |
| Header / Brand | Transition Networks |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | External |
| Networking / Type | Media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Dimensions & Weight | |
| Depth | 3.175 cm |
| Height | 13.67 cm |
| Weight | 480 g |
| Width | 8.25 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Media converter |
| Form Factor | External |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | UL, EN55024, FCC Part 15, IP30 |
| Networking | |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, Coax, 1000Base-X |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Features | DHCP support, auto-uplink (auto MDI/MDI-X), NTP time synchronization, AES encryption |
| Power | |
| Power Consumption Operational | 45 Watt |
| Power Over Ethernet (PoE) | PoE+ |
