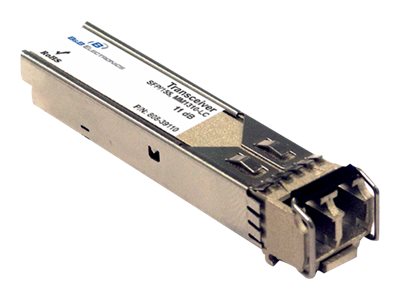

B&B IE-SFP - SFP (mini-GBIC) transceiver module
MSRP$97.90
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
B&B IE-SFP - SFP (mini-GBIC) transceiver module
- 100Mb LAN
- 100Base-FX
- LC single-mode
- up to 40 km
- OC-3/STM-1
- 1310 nm
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $97.90 |
| Mfr Part #: | 808-38104 |
| SHI Part #: | 32447380 |
| Category: | Channel converter |
| UNSPSC: | 43201540 |
| Manufacturer: | Advantech |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Channel converter |
| Description | B&B IE-SFP - SFP (mini-GBIC) transceiver module - 100Mb LAN - 100Base-FX - LC single-mode - up to 40 km - OC-3/STM-1 - 1310 nm |
| Manufacturer | Advantech |
| MSRP | $97.90 |
| UNSPSC | 43201540 |
| Main Specifications | |
| Header / Brand | B&B |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | Fast Ethernet |
| Networking / Data Transfer Rate | 155 Mbps |
| Networking / Form Factor | Plug-in module |
| Networking / Type | SFP (mini-GBIC) transceiver module |
| Packaged Quantity | 1 |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 100Base-FX - LC single-mode female x 2 |
| General | |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Miscellaneous | |
| Compliant Standards | Plug and Play, UL, cUL, FCC, Laser Class 1, IEC 60825-1 |
| Networking | |
| Cabling Type | 100Base-FX |
| Compliant Standards | IEEE 802.3u, IEEE 802.3ah, IEEE 802.1ag, ITU-T G.957, ITU-T G.958, ITU-T Y.1731 |
| Connectivity Technology | Wired |
| Data Link Protocol | 100Mb LAN |
| Data Transfer Rate | 155 Mbps |
| Features | Hot swap module replacement, auto-negotiation, auto-uplink (auto MDI/MDI-X), Digital Diagnostics Monitoring Interface (DDMI), Jumbo Frames support |
| Line Rate | OC-3/STM-1 |
| Max Transfer Distance | 40 km |
| Optical Wave Length | 1310 nm |
| Status Indicators | Diagnostic |
