Allied Telesis AT IE200-6GP
MSRP$1,254.31
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

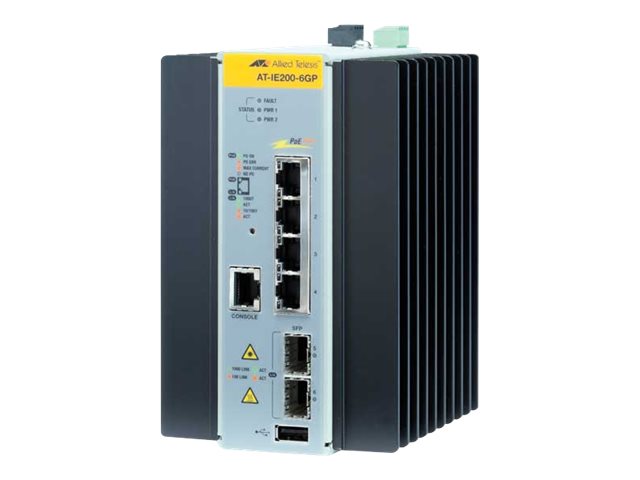

Allied Telesis AT IE200-6GP
- Switch
- managed
- 4 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
- DIN rail mountable, wall-mountable
- PoE+
- DC power
| Additional Details | |
|---|---|
| MSRP: | $1,254.31 |
| Mfr Part #: | AT-IE200-6GP-80 |
| SHI Part #: | 31956572 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Allied Telesis |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Allied Telesis AT IE200-6GP - Switch - managed - 4 x 10/100/1000 (PoE+) + 2 x Gigabit SFP - DIN rail mountable, wall-mountable - PoE+ - DC power |
| Manufacturer | Allied Telesis |
| MSRP | $1,254.31 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 13.4 cm |
| Dimensions & Weight / Height | 9.5 cm |
| Dimensions & Weight / Width | 15.9 cm |
| Header / Brand | Allied Telesis |
| Miscellaneous / Product Color | Gray |
| Networking / Form Factor |
|
| Networking / Ports Qty | 6 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 13.4 cm |
| Height | 9.5 cm |
| Width | 15.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+ |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Device Type | Switch - 6 ports - managed |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Features | Flow control, BOOTP support, trunking, IGMP snooping, port mirroring, Weighted Round Robin (WRR) queuing, MAC address filtering, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, DHCP relay, SNMP trap, DHCP client, 2MB packet buffer, Class of Service (CoS), GARP VLAN Registration Protocol (GVRP), DiffServ Code Point (DSCP) support, Ethernet Protection Switched Ring (EPSRing) |
| MAC Address Table Size | 4K entries |
| Performance | Switching capacity: 12 Gbps |
| Ports | 4 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, CLI |
| Routing Protocol | Static IP routing |
| Subtype | Gigabit Ethernet |
| Miscellaneous | |
| Compliant Standards | EN55022, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, IEC 60068-2-6, Directive 2004/108/EC, Directive 2006/95/EC, China RoHS, EN55022:2010, CSA 22.2 No. 60950-1, EN 55024:2010 |
| Power | |
| Power Consumption Operational | 123 Watt |
| Power Device | Internal power supply |
| Voltage Required | DC 24 - 48 V |
