UNC Group Clearfit Slim


MSRP$21.74
$14.00

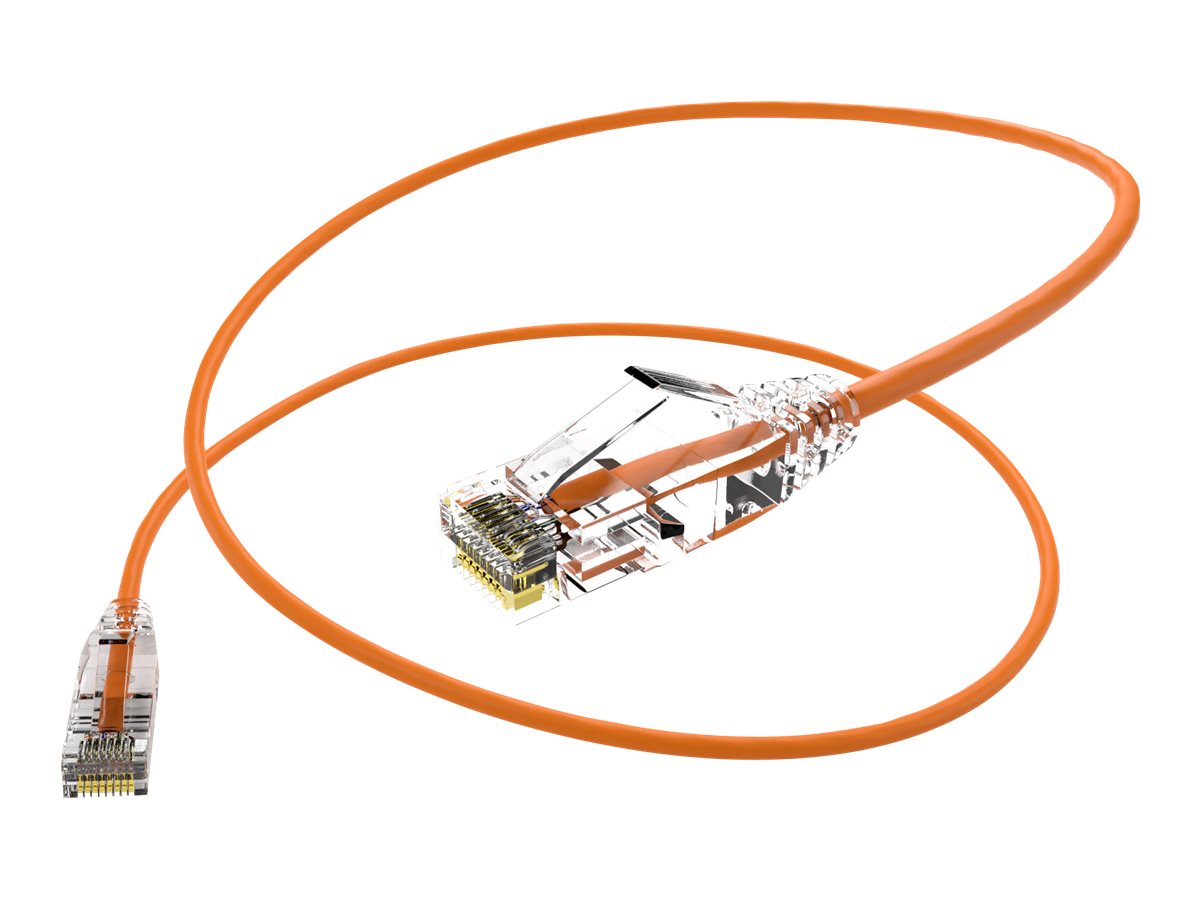

UNC Group Clearfit Slim patch cable - 9.14 m - orange

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Patch cable
  • RJ-45 (M) to RJ-45 (M)
  • 9.14 m
  • 3.8 mm
  • UTP
UNC Group Clearfit Slim
  • Patch cable
  • RJ-45 (M) to RJ-45 (M)
  • 9.14 m
  • 3.8 mm
  • UTP
  • CAT 6
  • booted, snagless, stranded
  • orange
  Additional Details
Price: $14.00
MSRP: $21.74
Mfr Part #: CS6-30F-ORG
SHI Part #: 30731241
Category: Network cable
UNSPSC: 26121609
Manufacturer: Unirise
Product Type: Hardware
General Information
CategoryNetwork cable
DescriptionUNC Group Clearfit Slim - Patch cable - RJ-45 (M) to RJ-45 (M) - 9.14 m - 3.8 mm - UTP - CAT 6 - booted, snagless, stranded - orange
ManufacturerUnirise
MSRP$21.74
UNSPSC26121609
Main Specifications
Header / BrandUNC Group
Left Connector TypeRJ-45
Length9.14 m
Miscellaneous / Product ColorOrange
Network Cable TypePatch cable
Packaged Quantity1
Right Connector TypeRJ-45
Service & Support / TypeLimited lifetime warranty
Connectivity
ConnectorRJ-45 - male
Connector (Second End)RJ-45 - male
Environmental Parameters
Max Operating Temperature75 °C
Min Operating Temperature-20 °C
General
American Wire Gauge (AWG)28
ColorOrange
Diameter3.8 mm
FeaturesBooted, snagless, stranded, labelled, PoE+ Ready, bare copper conductors, PoE ready, NoKink, HDPE conductor insulation, High port density
Impedance100 Ohm
Jacket MaterialPVC
Length9.14 m
Network Cable TypePatch cable - CAT 6
Pairs per Cable4 pairs
Plated ConnectorGold
TechnologyUTP
Wires per Cable8 wires
Manufacturer Warranty
Service & SupportLimited lifetime warranty
Miscellaneous
Compliant StandardsUL, RoHS, ETL, ISO/IEC 11801, REACH, ANSI/TIA-568-C.2, CM - up to 550 MHz
