Supermicro SC847 BE2C-R1K28WB
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

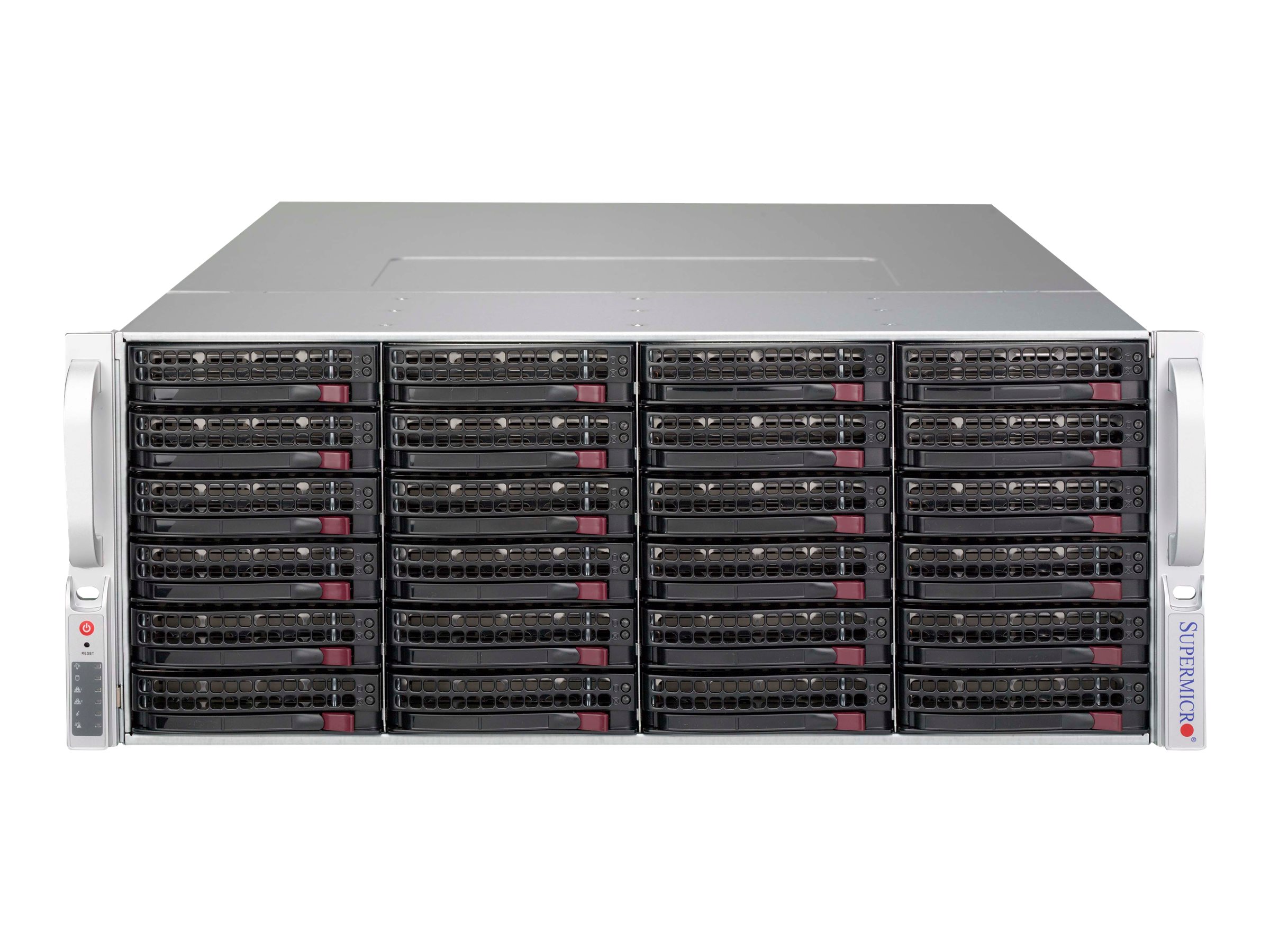

Supermicro SC847 BE2C-R1K28WB
- Rack-mountable
- 4U
- enhanced extended ATX
- SATA/SAS
- hot-swap 1280 Watt
- black
| Additional Details | |
|---|---|
| Mfr Part #: | CSE-847BE2C-R1K28WB |
| SHI Part #: | 30045035 |
| Category: | Chassis |
| UNSPSC: | 43201601 |
| Manufacturer: | Super Micro Computer |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Chassis |
| Description | Supermicro SC847 BE2C-R1K28WB - Rack-mountable - 4U - enhanced extended ATX - SATA/SAS - hot-swap 1280 Watt - black |
| Manufacturer | Super Micro Computer |
| UNSPSC | 43201601 |
| Main Specifications | |
| Chassis / Form Factor | Rack-mountable |
| Chassis / Server Storage Bays | Hot-swap |
| Chassis / Server Swappable Drive Interface | SATA/SAS |
| Dimensions & Weight / Depth | 69.9 cm |
| Dimensions & Weight / Height | 17.8 cm |
| Dimensions & Weight / Weight | 34.02 kg |
| Dimensions & Weight / Width | 43.7 cm |
| Header / Brand | Supermicro |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Power Device / Type | Power supply |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 69.9 cm |
| Height | 17.8 cm |
| Weight | 34.02 kg |
| Width | 43.7 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Expansion Bays | 36 (total) / 36 (free) x hot-swap - 3.5" |
| Expansion Slots | 3 x low-profile |
| Interfaces | 1 x SAS 12Gb/s - SFF-8643 |
| General | |
| Built-in Devices | LED panel |
| Color | Black |
| Cooling System | Internal: 80 x 80 x 38 mm fan x 7 / 7000 rpm / Pulse-width modulation (PWM) support, hot-swap, redundant |
| Form Factor | Rack-mountable - 4U |
| Hot-Swap Bays Qty | 36 |
| Max Mainboard Size | Enhanced extended ATX |
| Server Swappable Drive Interface | SATA/SAS |
| Supported Motherboards | ATX, microATX, enhanced extended ATX |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | UL, TUV, cUL, EN 60950, IEC 60950, EMC, FCC |
| Included Accessories | Mounting rails, air shroud, SAS3 backplane, control panel board |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Capacity (of Single Unit) | 1280 Watt |
| Power Device | Power supply |
| Power Provided | 1280 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 180/240 V (50/60 Hz) |
