Raritan PX 5000 Series PX3-5496V
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

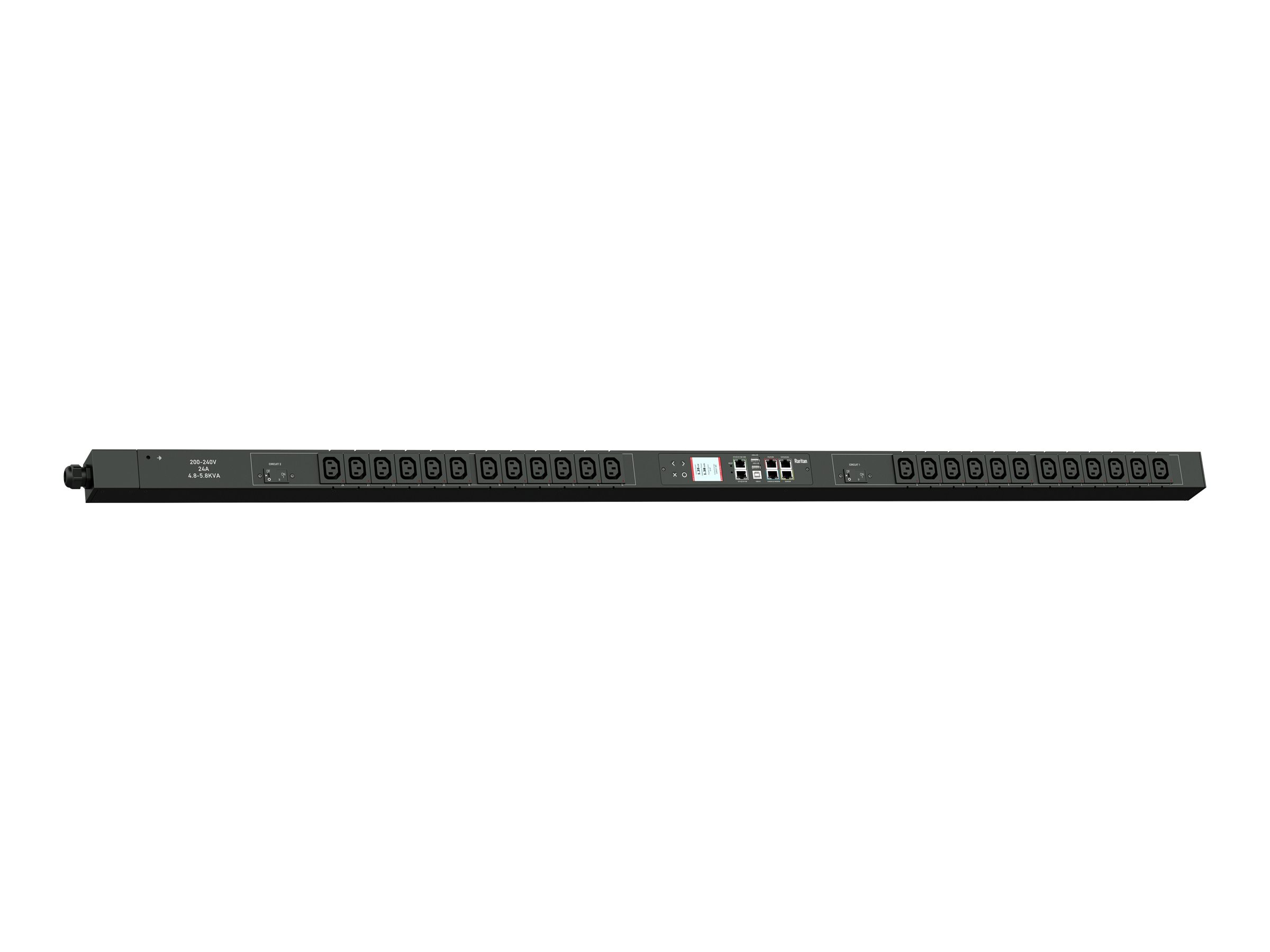

Raritan PX 5000 Series PX3-5496V
- Vertical rackmount
- power distribution unit (rack-mountable)
- AC 208 V
- 5800 VA
- Ethernet 10/100, RS-232
- input: NEMA L6-30
- output connectors: 24
- 0U
- black powder coat
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX3-5496V |
| SHI Part #: | 29944813 |
| Category: | Power distribution units PDUs |
| UNSPSC: | 39121017 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power distribution units PDUs |
| Description | Raritan PX 5000 Series PX3-5496V - Vertical rackmount - power distribution unit (rack-mountable) - AC 208 V - 5800 VA - Ethernet 10/100, RS-232 - input: NEMA L6-30 - output connectors: 24 - 0U - black powder coat |
| Manufacturer | Legrand |
| MSRP | $1,955.00 |
| UNSPSC | 39121017 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.5 cm |
| Dimensions & Weight / Height | 153.9 cm |
| Dimensions & Weight / Width | 5.2 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 24 |
| Power Device / Power Capacity (VA) | 5800 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Dimensions & Weight | |
| Depth | 6.5 cm |
| Height | 153.9 cm |
| Width | 5.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 85% |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | UL, ICES-003 Class A, RoHS, FCC Part 15 A, cULus, IP44 |
| Features | Splash-resistant, bottom feed, LED display, voltage monitoring, current meter, overload protection, vertical orientation, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, remote outlet switching, metering per input line, metering per branch circuit breaker, metering per output receptacle |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-30 |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 200 - 240 V |
| Max Electric Current | 30 A |
| Output Voltage | AC 208 V |
| Power Capacity | 5800 VA |
| Power Capacity Details | 4.8 kVA at 200 V, 5.8 kVA at 240 V |
| Power Output Connectors Details | 24 x power IEC 60320 C13 12 A |
| Software / System Requirements | |
| Software Included | Raritan Power IQ |
