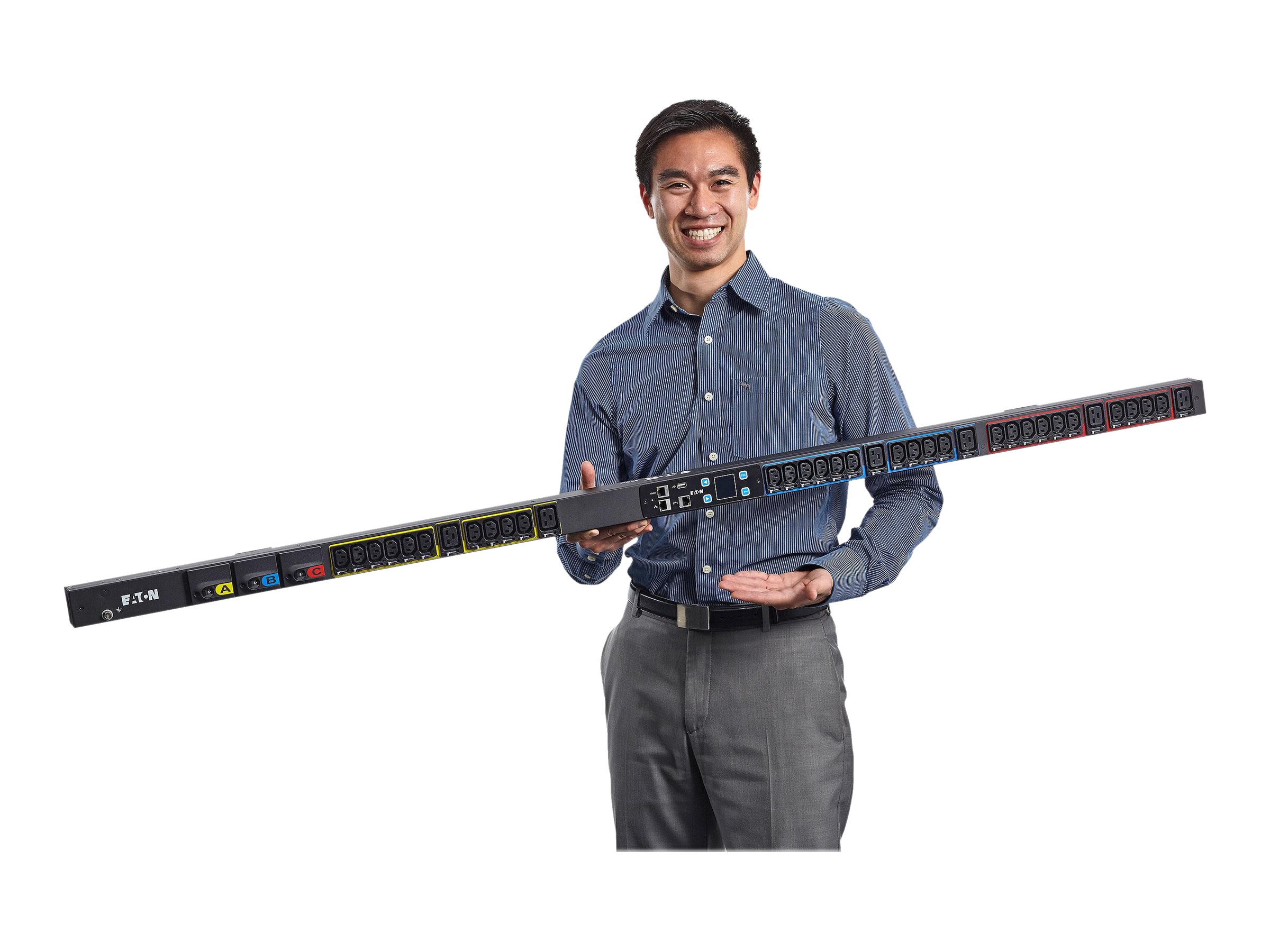

Eaton ePDU G3 Managed EMA325-10
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Eaton ePDU G3 Managed EMA325-10
- Power distribution unit (rack-mountable)
- AC 120/208 V
- 5.76 kW
- 3-phase WYE (star)
- Ethernet 10/100, RS-232
- input: NEMA L21-20

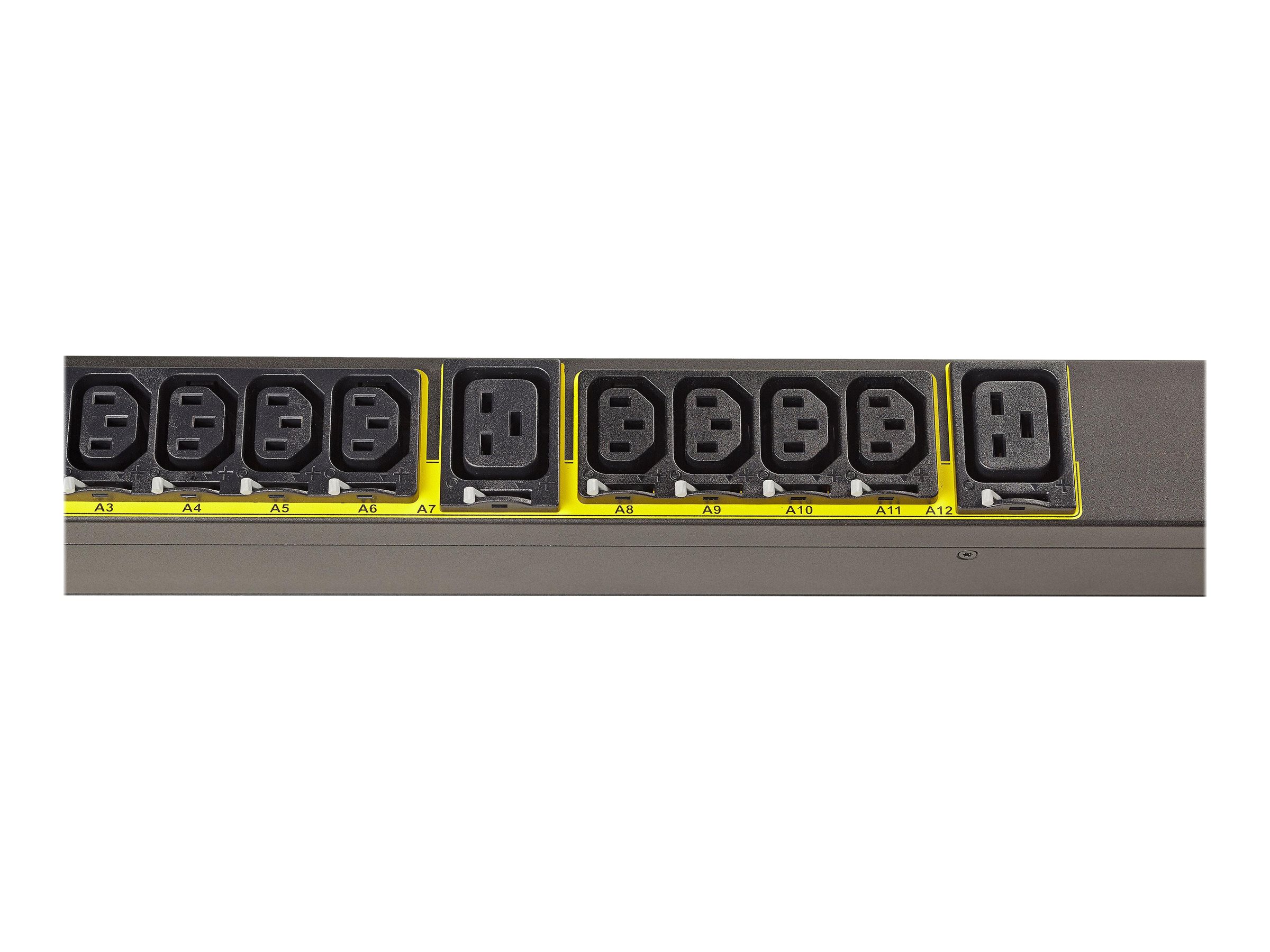

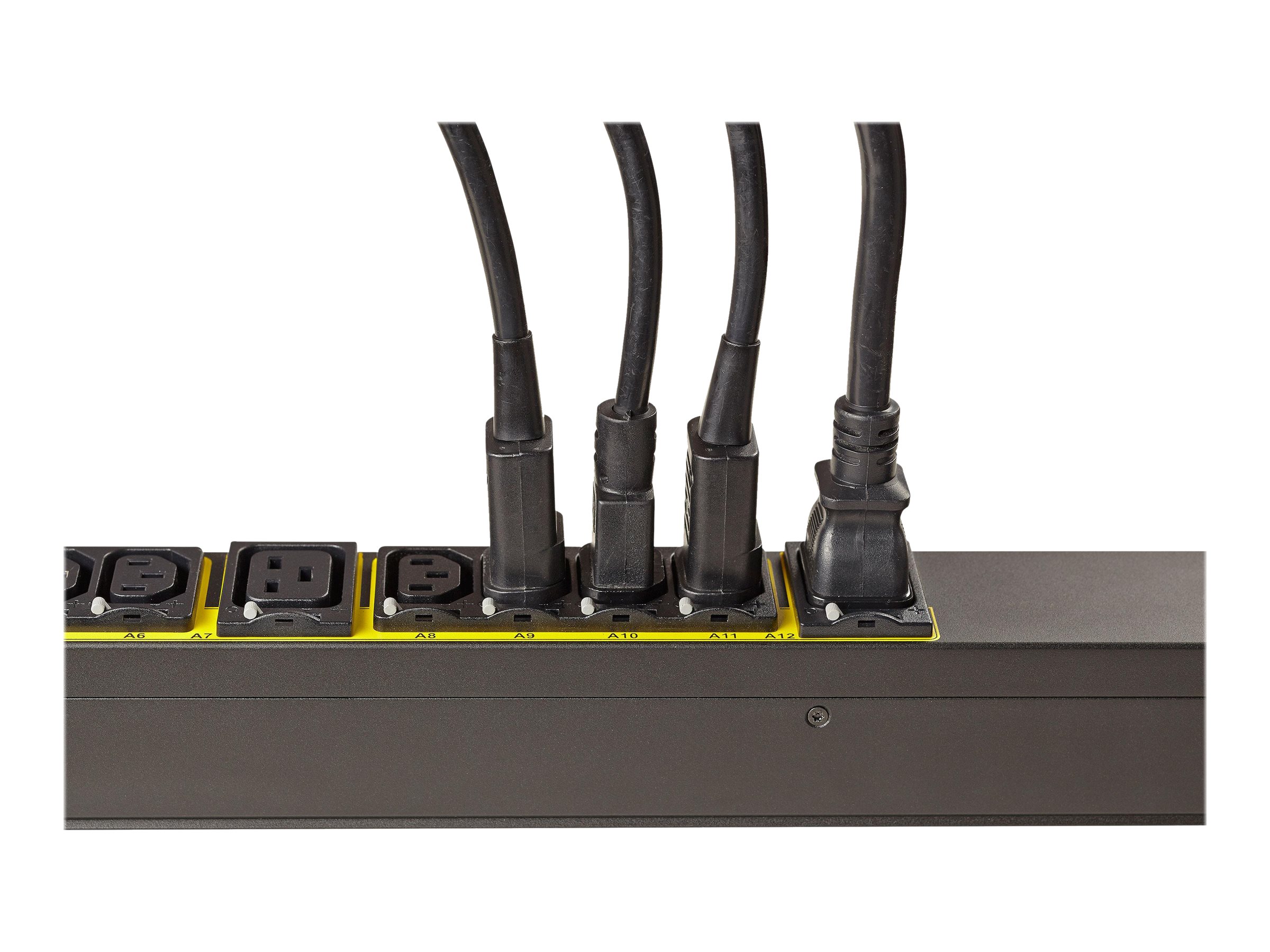

- output connectors: 24
- 38U
- black
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | EMA325-10 |
| SHI Part #: | 29402855 |
| Category: | Power distribution units PDUs |
| UNSPSC: | 39121017 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power distribution units PDUs |
| Description | Eaton ePDU G3 Managed EMA325-10 - Power distribution unit (rack-mountable) - AC 120/208 V - 5.76 kW - 3-phase WYE (star) - Ethernet 10/100, RS-232 - input: NEMA L21-20 - output connectors: 24 - 38U - black - TAA Compliant |
| Manufacturer | Eaton |
| MSRP | $1,981.00 |
| UNSPSC | 39121017 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.5 cm |
| Dimensions & Weight / Height | 169 cm |
| Dimensions & Weight / Width | 5.21 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Eaton |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 24 |
| Power Device / Voltage Required | AC 120/208 V |
| Product Type | Power distribution unit |
| Dimensions & Weight | |
| Depth | 6.5 cm |
| Height | 169 cm |
| Width | 5.21 cm |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 38U |
| Miscellaneous | |
| Cables Included | Power cable 3.05 m |
| Compliant Standards | cULus |

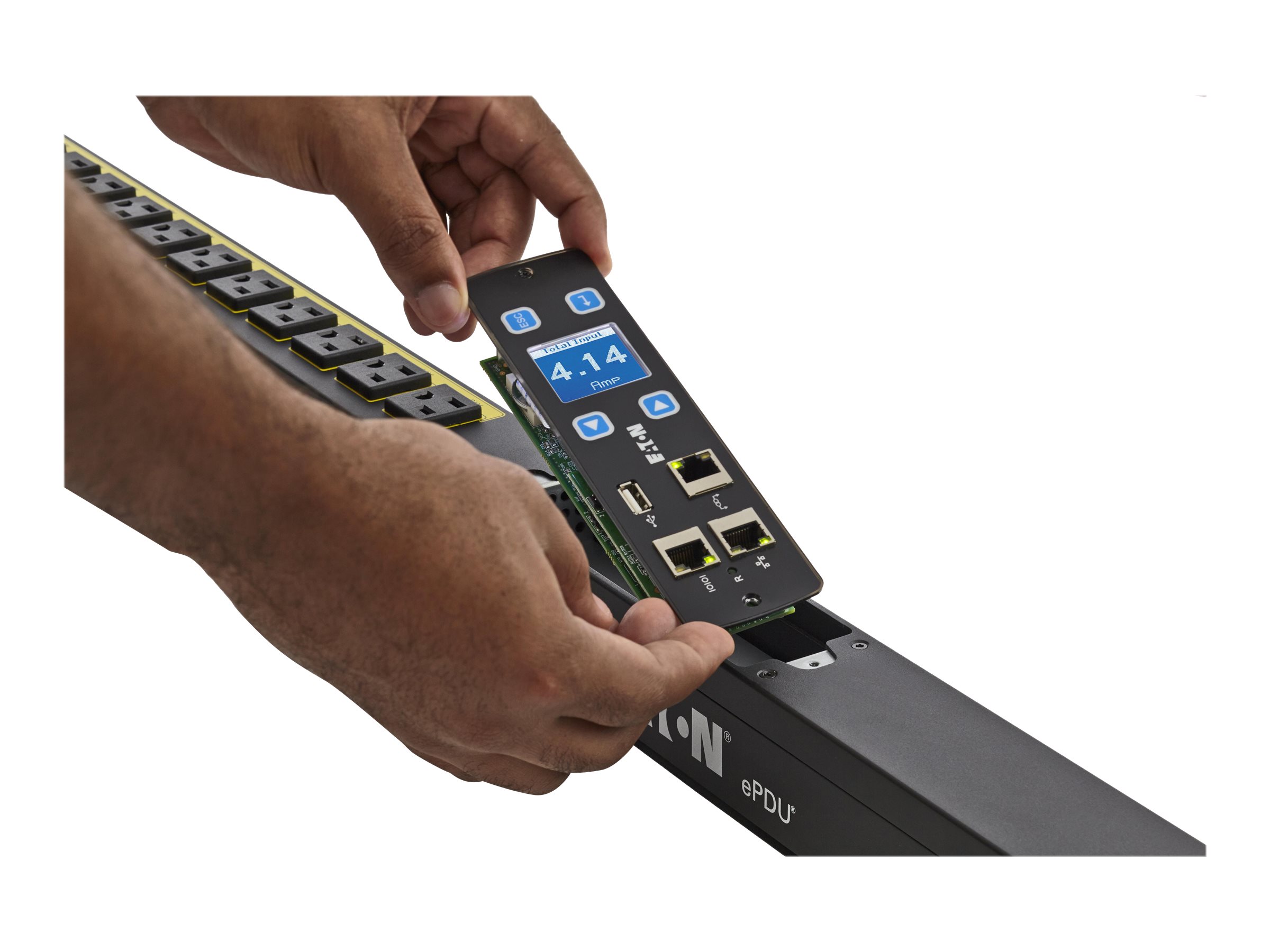

| Features | Aluminum enclosure, LCD display, voltage monitoring, LED indicators, vertical orientation, digital power meter |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232 |
| Remote Management Protocol | SNMP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L21-20 |
| Input Voltage | AC 120/208 V |
| Input Voltage Margin | ± 1% |
| Input Wiring | 3-phase WYE (star) |
| Max Electric Current | 16 A |
| Output Voltage | AC 200-240 V |
| Power Capacity | 5.76 kW |
| Power Output Connectors Details |
|
