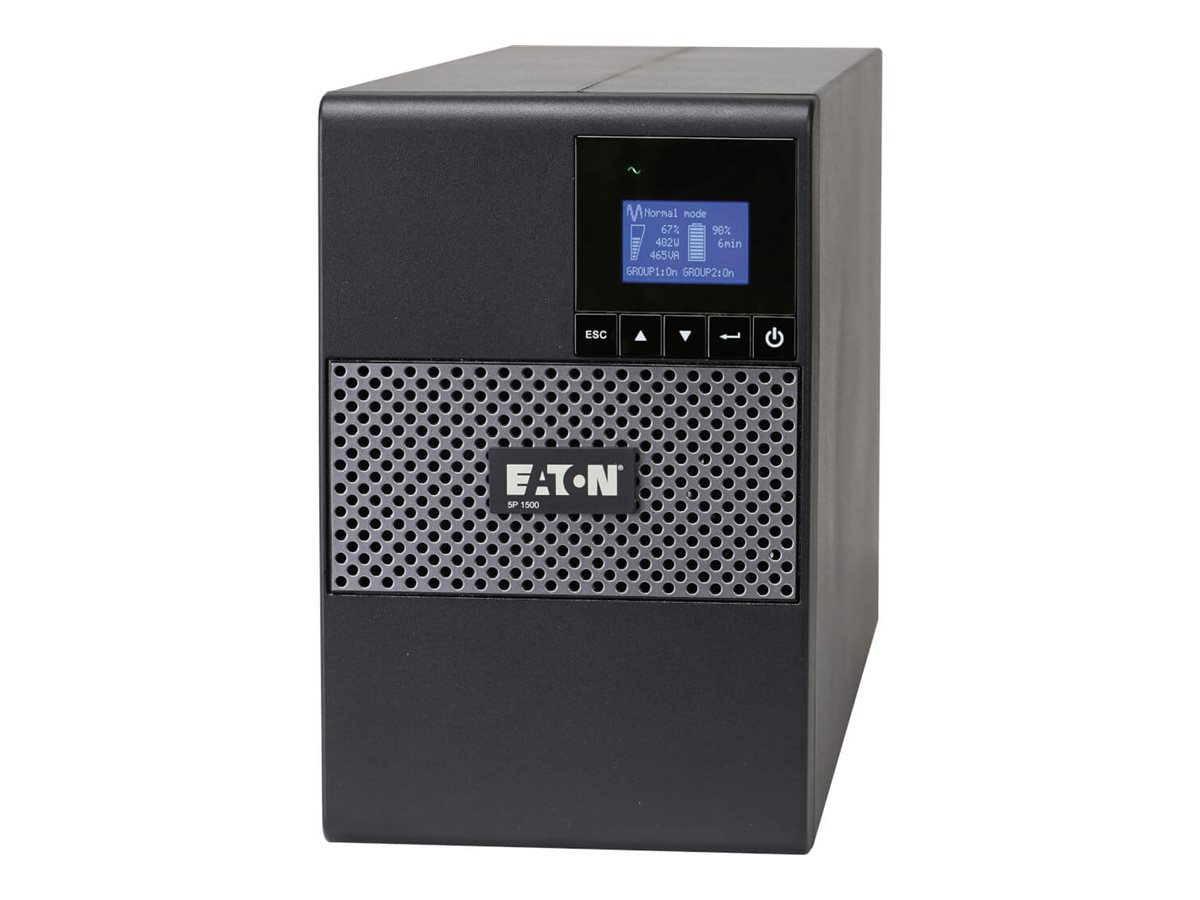

Eaton 5P 1550 Global Tower


$1,149.00
Eaton 5P 1550 Global Tower

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • UPS
  • AC 230 V
  • 1100 Watt
  • 1550 VA 9 Ah
  • RS-232, USB
Eaton 5P 1550 Global Tower
  • UPS
  • AC 230 V
  • 1100 Watt
  • 1550 VA 9 Ah
  • RS-232, USB
  • output connectors: 8
  • black, silver
  Additional Details
Price: $1,149.00
Mfr Part #: 5P1550G
SHI Part #: 28909669
Category: Uninterruptible power supplies
UNSPSC: 39121011
Manufacturer: Eaton
Product Type: Hardware
General Information
CategoryUninterruptible power supplies
DescriptionEaton 5P 1550 Global Tower - UPS - AC 230 V - 1100 Watt - 1550 VA 9 Ah - RS-232, USB - output connectors: 8 - black, silver
ManufacturerEaton
MSRP$1,010.00
UNSPSC39121011
Main Specifications
Dimensions & Weight / Depth44.5 cm
Dimensions & Weight / Height23 cm
Dimensions & Weight / Weight15.6 kg
Dimensions & Weight / Width15 cm
General / SubcategoryUPS
Header / BrandEaton
Miscellaneous / Product Color
  • Black
  • Silver
Networking / Remote Management Interface
  • RS-232
  • USB
Packaged Quantity1
Power Device / Form FactorExternal
Power Device / Output Connector Qty8
Power Device / Power Capacity (VA)1550 VA
Power Device / UPS TechnologyLine interactive
Power Device / Voltage RequiredAC 230 V
Product TypeUPS
Service & Support / Type3-year warranty
Battery
Capacity9 Ah
Quantity3
Run Time (Up To)
  • 4 min at full load
  • 13 min at half load
TechnologyLead acid
Voltage Provided12 V
Compatibility Information
Designed ForP/N: 744-A2223
Dimensions & Weight
Depth44.5 cm
Height23 cm
Weight15.6 kg
Width15 cm
Environmental Parameters
Humidity Range Operating0 - 90% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission45 dB
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x expansion slot
Interfaces
  • 1 x management (RS-232) - RJ-45
  • 1 x management (USB) - 4 pin USB Type B
General
ColorBlack, silver
Device TypeUPS - external
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Miscellaneous
Cables Included
  • USB cable - external - 1.83 m
  • Serial cable - external - 1.83 m
  • 2 x power extension cable - external
Compliant StandardsCISPR 22 Class B, UL 1778, UL 497A, EN55024, FCC Part 15 B, IEC 62040-2, RoHS, cULus

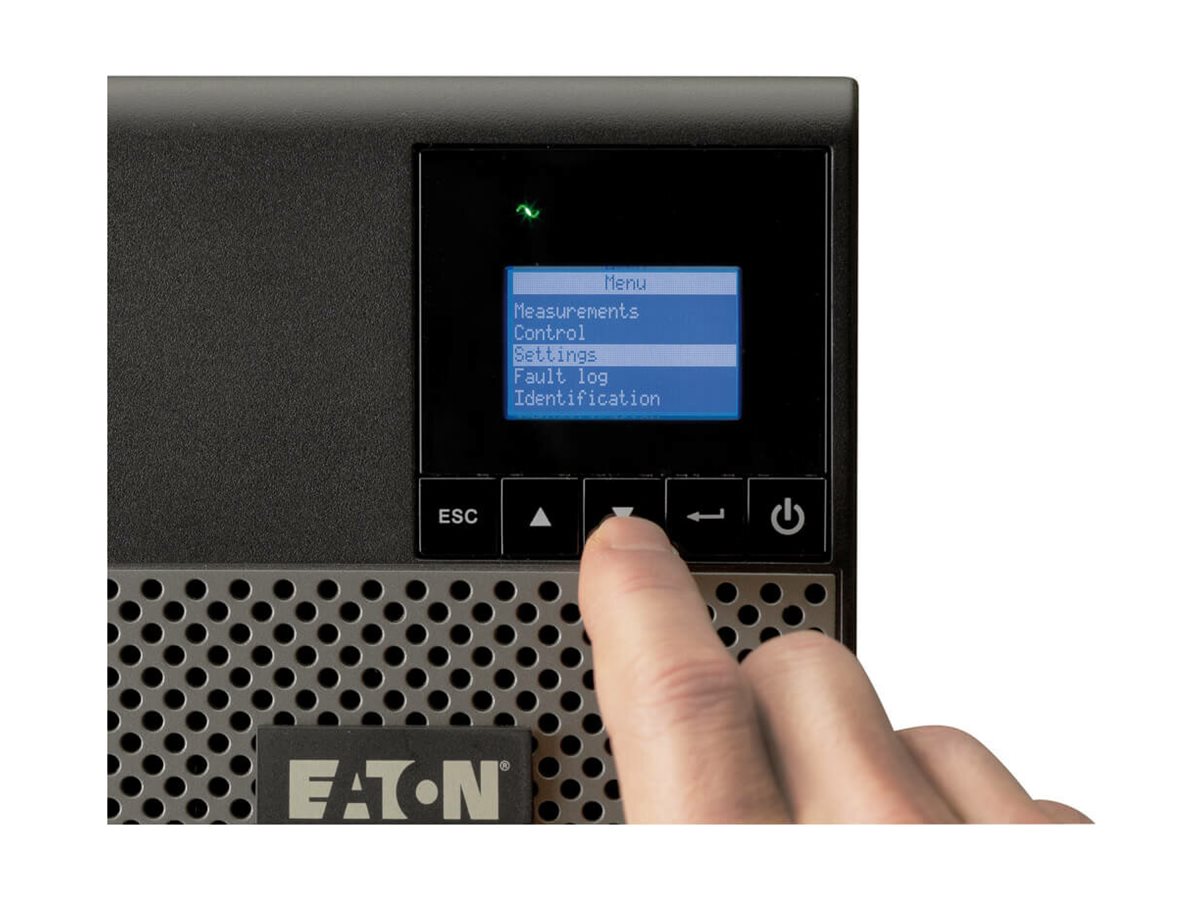

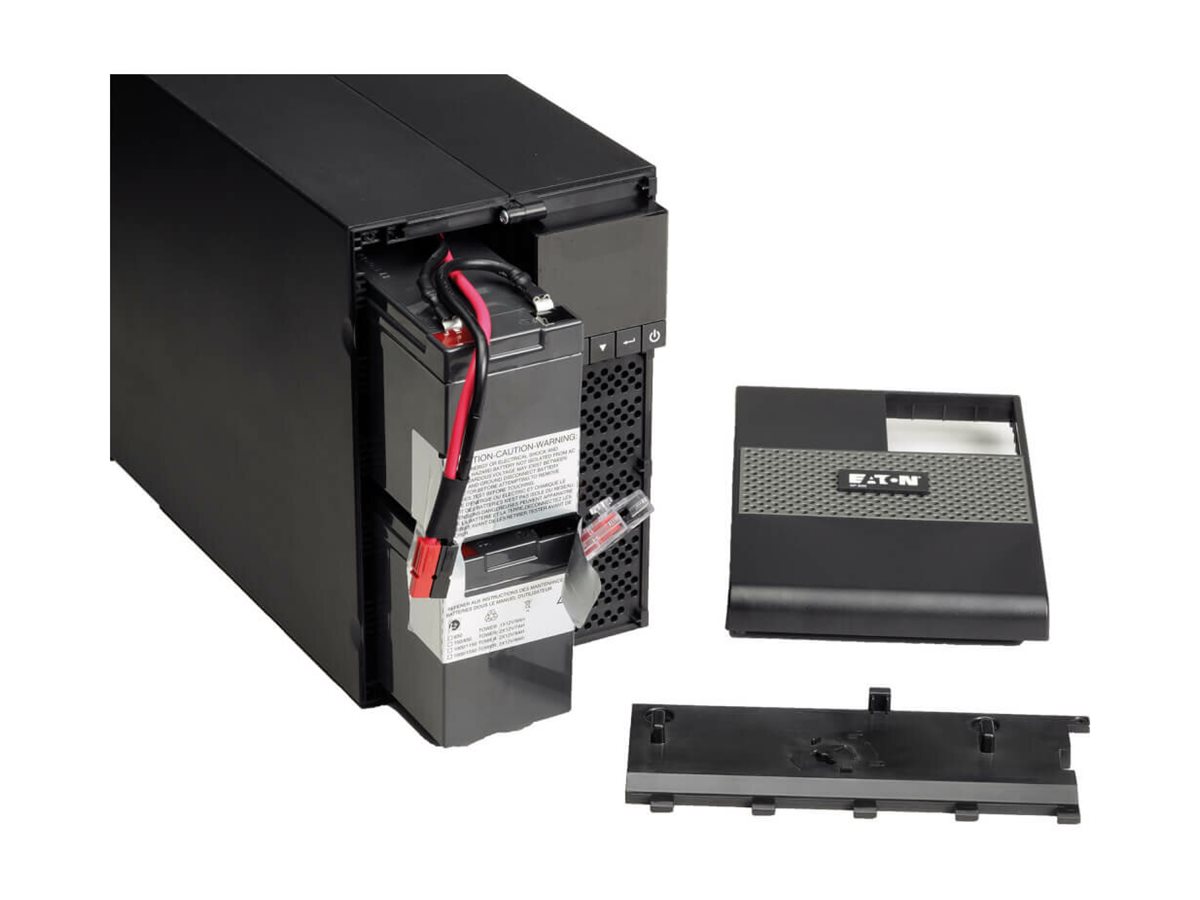

FeaturesAdvance Battery Management (ABM), LCD display, remote ON/OFF function, Remote Emergency Power Off (REPO), hot-swappable batteries
Networking
Remote Management InterfaceRS-232, USB
Power Device
Efficiency98%
Frequency Provided50/60 Hz
Frequency Required50/60 Hz
Input ConnectorsPower IEC 60320 C14
Input VoltageAC 230 V
Input Voltage RangeAC 160 - 294 V
Input Voltage Range (Adjustable)AC 150 - 294 V
Load RatingSmall workgroup server
Output VoltageAC 230 V 50/60 Hz
Power Capacity1100 Watt / 1550 VA

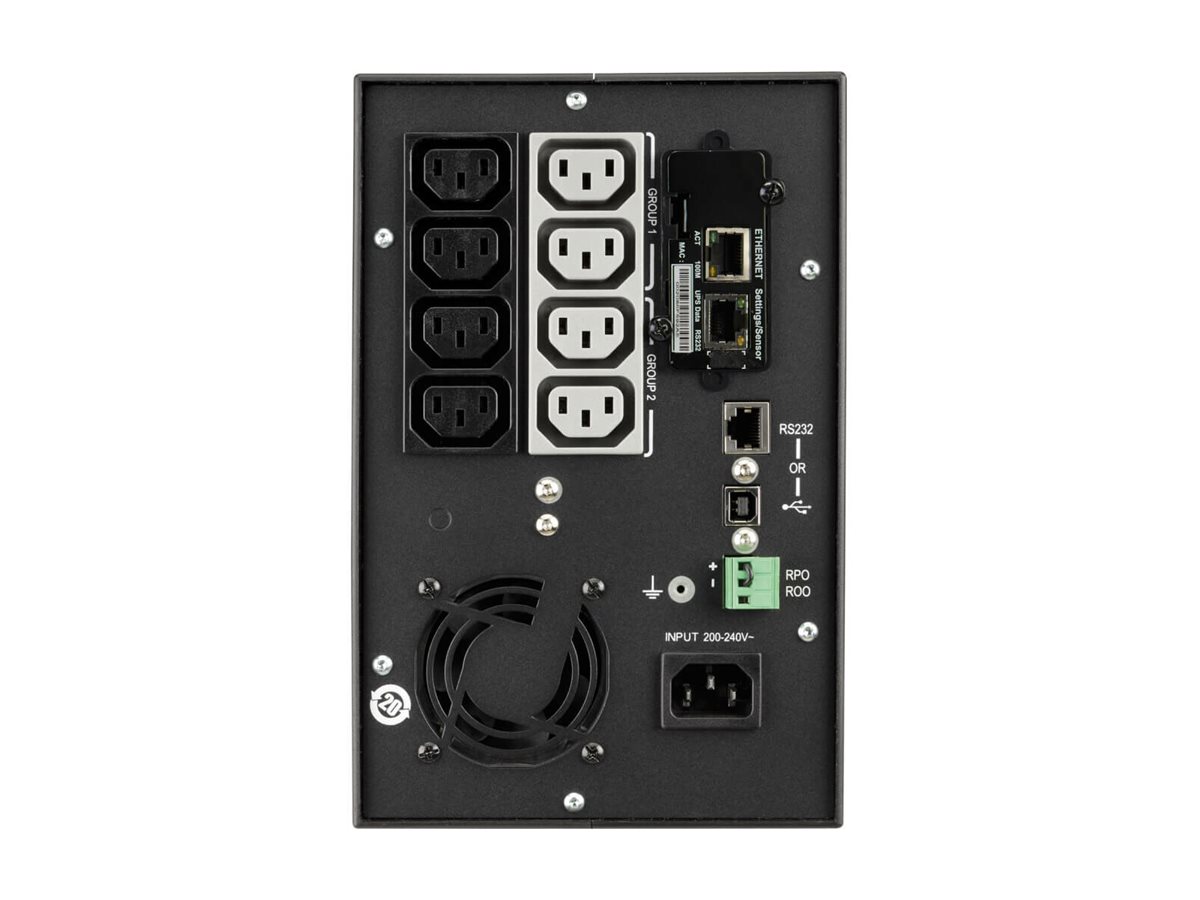

Power Output Connectors Details8 x power IEC 60320 C13
UPS TechnologyLine interactive
Software / System Requirements
Software IncludedIntelligent Power Software Suite
Sustainability Information
ENERGY STARYes
