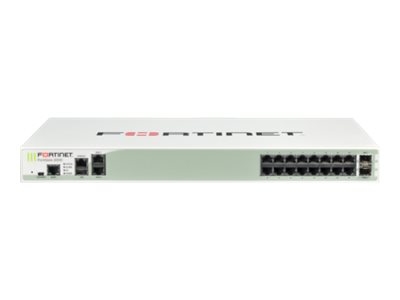

Fortinet FortiGate 200D


MSRP$9,654.40
$8,761.00
Fortinet FortiGate 200D - UTM Bundle - security appliance - with 3 years FortiCare 8X5 Enhanced Support + 3 years Forti…

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • UTM Bundle
  • security appliance
  • with 3 years FortiCare 8X5 Enhanced Support + 3 years FortiGuard
  • GigE
  • 1U
Fortinet FortiGate 200D
  • UTM Bundle
  • security appliance
  • with 3 years FortiCare 8X5 Enhanced Support + 3 years FortiGuard
  • GigE
  • 1U
  • rack-mountable
  Additional Details
Price: $8,761.00
MSRP: $9,654.40
Mfr Part #: FG-200D-BDL-USG-900-36
SHI Part #: 28287367
Category: Firewall appliances
UNSPSC: 43222501
Manufacturer: Fortinet
Product Type: Hardware

Computer Accessories

Fortinet FortiToken 200BCD - hardware token
  • Hardware token (pack of 10)
  • for FortiGate 200B, 200D
MSRP $524.00 $430.00
Fortinet FortiToken 200BCD - hardware token
  • Hardware token (pack of 100)
  • for FortiGate 200B, 200D
MSRP $4,845.00 $3,970.00
Fortinet FortiToken 200BCD - hardware token
  • Hardware token (pack of 50)
  • for FortiGate 200B, 200D
MSRP $2,453.00 $2,010.00

Networking and Security

Fortinet FN-TRAN-GC - SFP (mini-GBIC) transceiver module - GigE
  • GigE
  • 1000Base-T
  • RJ-45
  • up to 100 m
  • for FortiGate 11XX, 18XX, 22XX, 33XX, 34XX, 36XX, 40, 42XX, 60, 61; FortiSwitch 424, 448, M426
MSRP $206.00 $195.00
Fortinet FortiToken 200BCD - hardware token
  • Hardware token (pack of 20)
  • for FortiGate 200B, 200D
MSRP $987.00 $809.00
General Information
CategoryFirewall appliances
DescriptionFortinet FortiGate 200D - UTM Bundle - security appliance - with 3 years FortiCare 8X5 Enhanced Support + 3 years FortiGuard - GigE - 1U - rack-mountable
ManufacturerFortinet
MSRP$9,654.40
UNSPSC43222501
Main Specifications
Dimensions & Weight / Depth29.8 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight4.8 kg
Dimensions & Weight / Width43.2 cm
Header / BrandFortinet
Miscellaneous / Product ColorWhite
Networking / Connectivity TechnologyWired
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Networking / Form FactorRack-mountable
Networking / TypeSecurity appliance
Packaged Quantity1
Environmental Parameters
Humidity Range Operating10 - 90% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 1 x management (USB) - Type B
  • 2 x 1000Base-T - RJ-45 (WAN)
  • 16 x 1000Base-T - RJ-45
  • 2 x 1000Base-X - SFP (mini-GBIC) (DMZ)
  • 1 x console - RJ-45
  • 1 x USB - Type A
  • 1 x management
General
Bundled Services3 years FortiCare 8X5 Enhanced Support + 3 years FortiGuard
Depth29.8 cm
Device TypeSecurity appliance
Height4.4 cm
Height (Rack Units)1U
Weight4.8 kg
Width43.2 cm
Miscellaneous
Compliant StandardsUL, VCCI, C-Tick, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 A, IPv6 Ready, USGv6, ICSA SSL-VPN, ICSA IPS
Networking
Capacity
  • Concurrent TCP sessions: 2000000
  • New sessions per second: 77000
  • Firewall policies: 10000
  • Gateway to gateway IPSec VPN Tunnels: 2000
  • Client to gateway IPSec VPN tunnels: 10000
  • Concurrent SSL VPN users: 300
  • Number of FortiToken devices: 1000
  • Number of FortiClient devices: 600
  • Virtual domains: 10
  • Number of FortiAP devices: 128
Connectivity TechnologyWired
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Encryption AlgorithmSSL
FeaturesFirewall protection, VPN support, manageable, antivirus analysis, High Availability, Intrusion Prevention System (IPS), URL filtering, web threat protection, application filtering
Form FactorRack-mountable
Performance
  • Firewall throughput (1518-byte UDP): 3 Gbps
  • Firewall throughput (512-byte UDP): 3 Gbps
  • Firewall throughput (64-byte UDP): 3 Gbps
  • Firewall latency (64-byte UDP): 2 µs
  • Firewall throughput: 4.5 Mpps
  • VPN throughput (512-bit IPSec): 1.3 Gbps
  • VPN throughput (SSL): 400 Mbps
  • IPS throughput: 1.7 Gbps
  • NGFW throughput: 330 Mbps
  • Threat protection throughput: 310 Mbps
  • SSL inspection throughput: 340 Mbps
  • Application control (AVC) throughput: 1.5 Gbps
  • CAPWAP throughput: 1.8 Gbps
  • IPS throughput: 420 Mbps
Remote Management ProtocolHTTP
Power
Power Consumption Operational49 Watt
Power DeviceInternal power supply
Voltage RequiredAC 120/230 V (50/60 Hz)
Processor / Memory / Storage
Hard DriveSSD 64 GB
Processors InstalledFortinet FortiASIC CP8/NP4Lite
