WD RE WD3000FYYZ - Hard drive
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

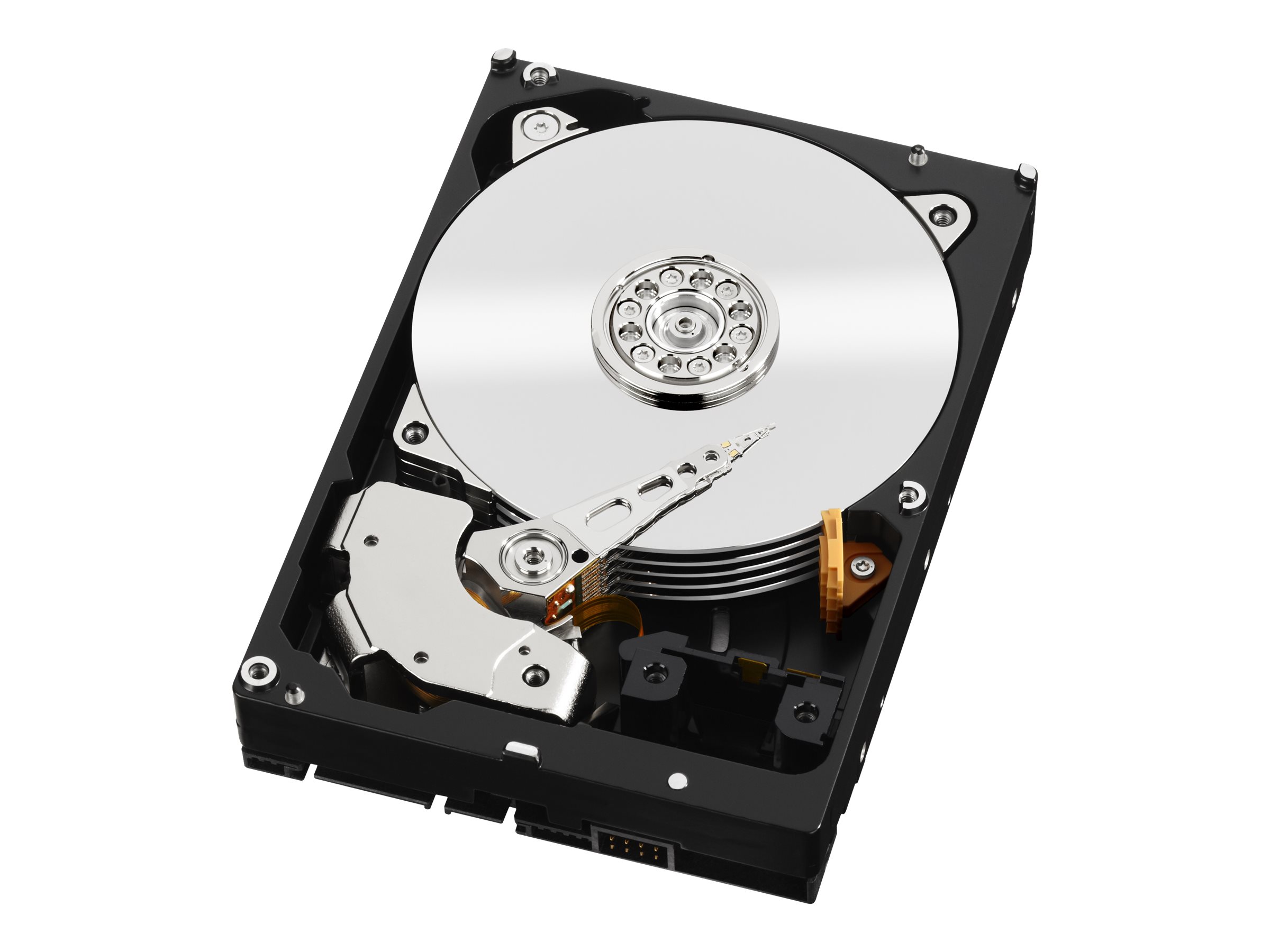

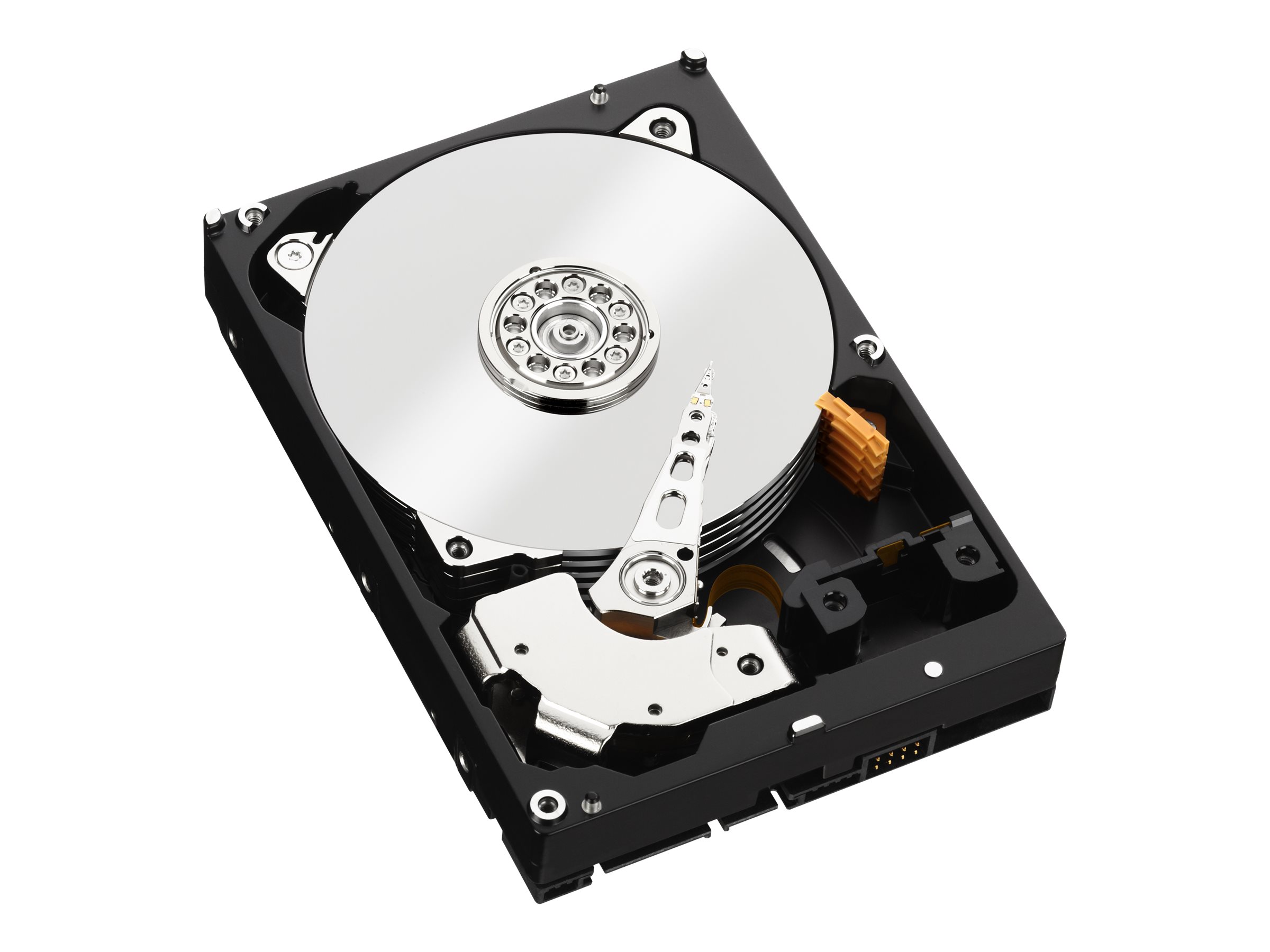

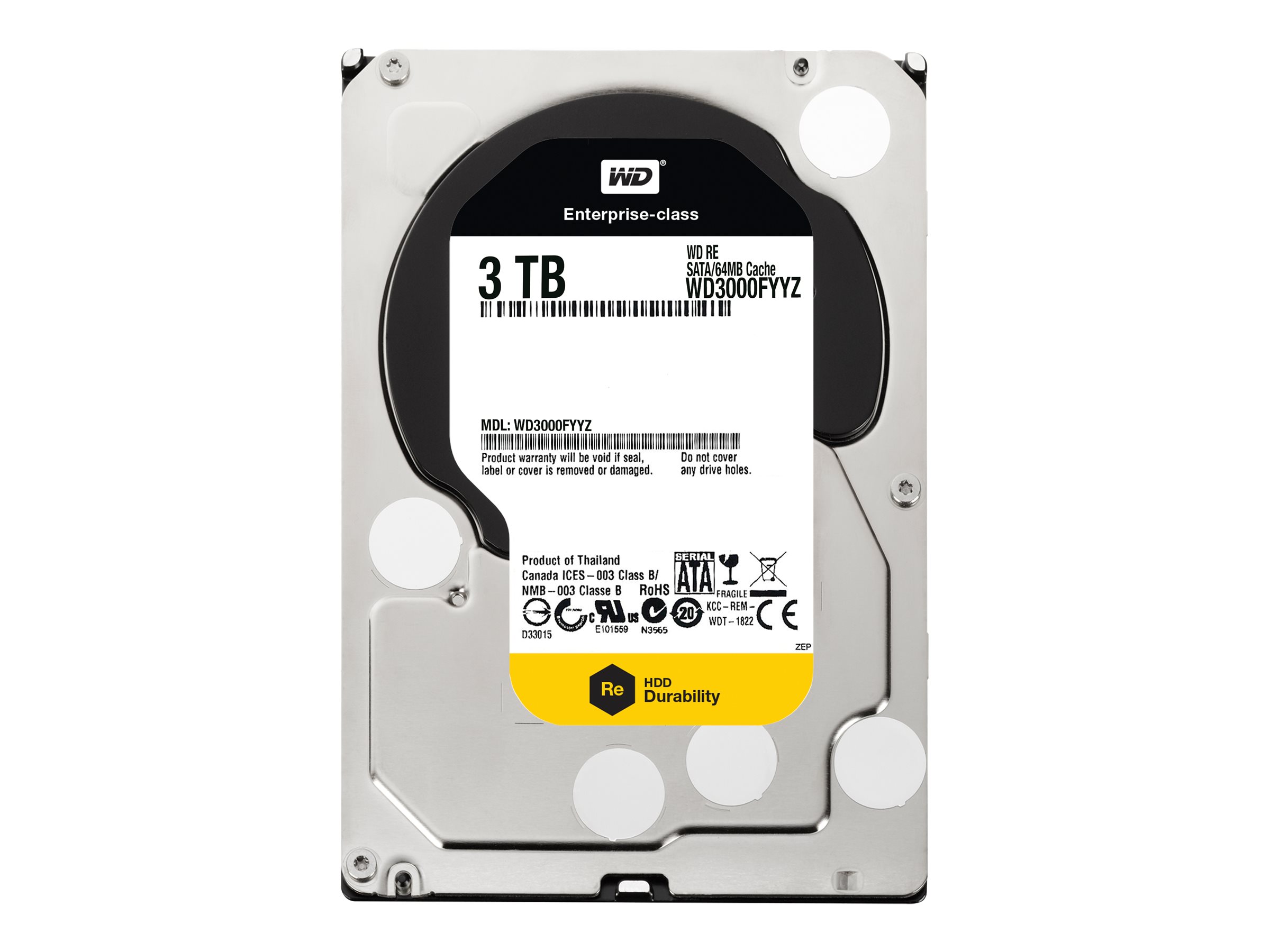

WD RE WD3000FYYZ - Hard drive
- 3 TB
- internal
- 3.5"
- SATA 6Gb/s
- 7200 rpm
- buffer: 64 MB
- for My Cloud EX4
| Additional Details | |
|---|---|
| Mfr Part #: | WD3000FYYZ |
| SHI Part #: | 26246150 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Western Digital |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | WD RE WD3000FYYZ - Hard drive - 3 TB - internal - 3.5" - SATA 6Gb/s - 7200 rpm - buffer: 64 MB - for My Cloud EX4 |
| Manufacturer | Western Digital |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 147 mm |
| Dimensions & Weight / Height | 26.1 mm |
| Dimensions & Weight / Weight | 750 g |
| Dimensions & Weight / Width | 101.6 mm |
| Hard Drive / Capacity | 3 TB |
| Hard Drive / Form Factor | 3.5" x 1/3H |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface | Serial ATA-600 |
| Header / Brand | WD |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / Type | Hard drive |
| Compatibility Information | |
| Designed For | WD My Cloud EX4 |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 5 °C |
| Shock Tolerance (non-operating) | 300 g @ 2 ms |
| Shock Tolerance (operating) | 30 g @ 2 ms |
| Sound Emission | 31 dBA |
| Expansion & Connectivity | |
| Compatible Bay | 3.5" x 1/3H |
| Interfaces | 1 x SATA 6 Gb/s |
| General | |
| Buffer Size | 64 MB |
| Bytes per Sector | 512 |
| Capacity | 3 TB |
| Depth | 147 mm |
| Device Type | Hard drive - internal |
| Features | Native Command Queuing (NCQ), Rotary Acceleration Feed Forward (RAFF), Time-Limited Error Recovery (TLER), dual actuator technology, StableTrac, NoTouch ramp load technology, dual processor, Multi-axis shock sensor, Dynamic fly height technology, S.M.A.R.T. |
| Form Factor | 3.5" x 1/3H |
| Height | 26.1 mm |
| Interface | SATA 6Gb/s |
| Weight | 750 g |
| Width | 101.6 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | RoHS, NMB-3 Class B, CAN ICES-3 Class B |
| Performance | |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 168 MBps |
| Spindle Speed | 7200 rpm |
| Power | |
| Power Consumption |
|
| Reliability | |
| Load / Unload Cycles | 600,000 |
| MTBF | 1,200,000 hours |
| Non-Recoverable Errors | 1 per 10^15 |
