Fortinet FortiSwitch 324B-POE
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

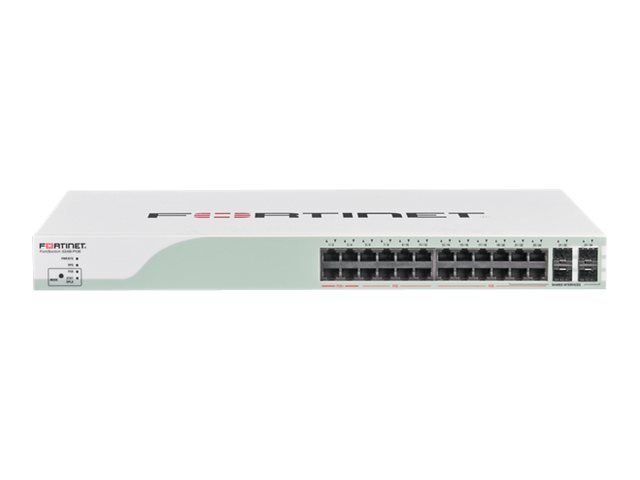

Fortinet FortiSwitch 324B-POE
- Switch
- 24 x 10/100/1000 + 4 x shared Gigabit SFP
- rack-mountable
- PoE
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | FS-324B-POE |
| SHI Part #: | 24885284 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Fortinet |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Fortinet FortiSwitch 324B-POE - Switch - 24 x 10/100/1000 + 4 x shared Gigabit SFP - rack-mountable - PoE |
| Manufacturer | Fortinet |
| MSRP | $2,195.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 30.4 cm |
| Dimensions & Weight / Height | 3.8 cm |
| Dimensions & Weight / Weight | 4.6 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | Fortinet |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 24 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 30.4 cm |
| Height | 3.8 cm |
| Weight | 4.6 kg |
| Width | 44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | Secure Shell (SSH) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.1AX |
| Device Type | Switch - 24 ports |
| Enclosure Type | Rack-mountable |
| Features | Flow control, DHCP support, power over Ethernet (PoE), BOOTP support, sFlow, Access Control List (ACL) support, PoE+, Link Aggregation Control Protocol (LACP), Management Information Base (MIB) |
| MAC Address Table Size | 16K entries |
| Performance | Switching throughput: 48 Gbps |
| Ports | 24 x 10/100/1000 + 4 x shared Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| Remote Management Protocol | SNMP 1, SNMP, RMON, Telnet, SNMP 2c, SSH |
| Routing Protocol | IGMPv3 |
| Status Indicators | Power, status, PoE |
| Subtype | Gigabit Ethernet |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Power | |
| Power Consumption Operational | 263 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
