Perle SMI-1110-S1SC120D
MSRP$4,181.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

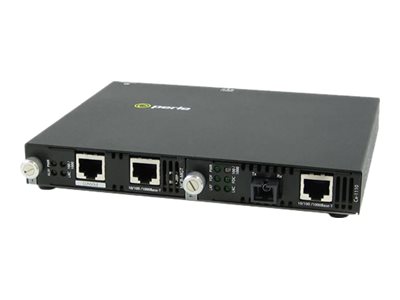

Perle SMI-1110-S1SC120D
- Fiber media converter
- GigE
- 10Base-T, 100Base-TX, 1000Base-T, 1000Base-BX-D
- RJ-45 / SC single-mode
- up to 120 km
- 1590 (TX) / 1510 (RX) nm
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $4,181.00 |
| Mfr Part #: | 05070884 |
| SHI Part #: | 22752893 |
| Category: | Channel converter |
| UNSPSC: | 43201540 |
| Manufacturer: | Perle Systems |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Channel converter |
| Description | Perle SMI-1110-S1SC120D - Fiber media converter - GigE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-BX-D - RJ-45 / SC single-mode - up to 120 km - 1590 (TX) / 1510 (RX) nm |
| Manufacturer | Perle Systems |
| MSRP | $4,181.00 |
| UNSPSC | 43201540 |
| Main Specifications | |
| Dimensions & Weight / Depth | 14.5 cm |
| Dimensions & Weight / Height | 2.3 cm |
| Dimensions & Weight / Weight | 0.72 kg |
| Dimensions & Weight / Width | 17.5 cm |
| Header / Brand | Perle |
| Header / Country Kits | United States |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 1 Gbps |
| Networking / Form Factor | External |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 14.5 cm |
| Height | 2.3 cm |
| Weight | 0.72 kg |
| Width | 17.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Localization | United States |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, EN 60950, EN 61000-3-2, EN55024, EN55022 Class A, RoHS, UL 60950-1, AES-128, WEEE, AES-256, FCC Part 15 A, AES-192, REACH, EN 60825-1, X.509 |
| MTBF | 164,883 hours |
| Rack Mounting Kit | Optional |
| Networking | |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-BX-D |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1p, X.509, IEEE 802.3xy |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Data Transfer Rate | 1 Gbps |
| Encryption Algorithm | DES, Triple DES |
| Features | DHCP support, FiberAlert, auto-negotiation, LDAP support, VLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, manageable, MAC address filtering, IPv6 support, Far End Fault (FEF), half duplex mode, full duplex mode, firmware upgradable, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, SSH support, IPv4 support |
| MAC Address Table Size | 1K entries |
| Max Transfer Distance | 120 km |
| Optical Wave Length | 1590 (TX) / 1510 (RX) nm |
| Remote Management Protocol | SNMP 1, SNMP, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI |
| Status Indicators | Power, receive, link/activity |
| Power | |
| Power Consumption Operational | 4.1 Watt |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V |
