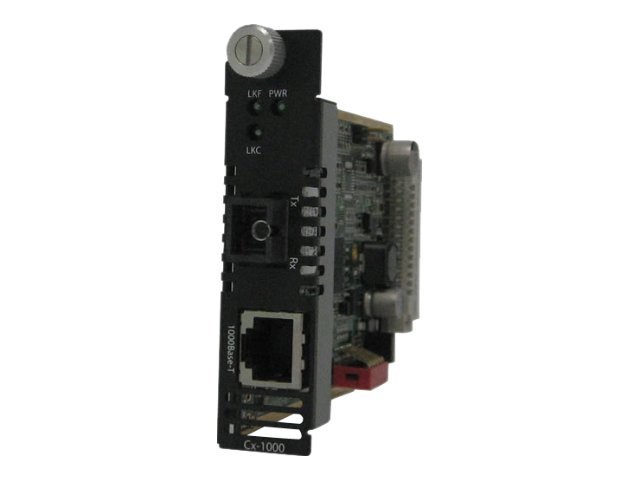

Perle CM-1000-S1SC20D
MSRP$1,557.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Perle CM-1000-S1SC20D
- Fiber media converter
- GigE
- 1000Base-T, 1000Base-BX-D
- RJ-45 / SC single-mode
- up to 20 km
- 1490 (TX) / 1310 (RX) nm
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,557.00 |
| Mfr Part #: | 05052820 |
| SHI Part #: | 22752855 |
| Category: | Channel converter |
| UNSPSC: | 43201540 |
| Manufacturer: | Perle Systems |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Channel converter |
| Description | Perle CM-1000-S1SC20D - Fiber media converter - GigE - 1000Base-T, 1000Base-BX-D - RJ-45 / SC single-mode - up to 20 km - 1490 (TX) / 1310 (RX) nm |
| Manufacturer | Perle Systems |
| MSRP | $1,557.00 |
| UNSPSC | 43201540 |
| Main Specifications | |
| Dimensions & Weight / Weight | 150 g |
| Header / Brand | Perle |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | Gigabit Ethernet |
| Networking / Data Transfer Rate | 1 Gbps |
| Networking / Form Factor | Plug-in module |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Weight | 150 g |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Compatible Slots | 1 x expansion slot |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, EN 60950, EN 61000-3-2, EN55024, EN55022 Class A, RoHS, UL 60950-1, WEEE, FCC Part 15 A, REACH, EN 60825-1 |
| MTBF | 609,000 hours |
| Networking | |
| Cabling Type | 1000Base-T, 1000Base-BX-D |
| Compliant Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3x |
| Connectivity Technology | Wired |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1 Gbps |
| Features | FiberAlert, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), manageable, Far End Fault (FEF), half duplex mode, full duplex mode, firmware upgradable |
| Max Transfer Distance | 20 km |
| Optical Wave Length | 1490 (TX) / 1310 (RX) nm |
| Remote Management Protocol | SNMP, Telnet, SSH |
| Status Indicators | Power, receive, link/activity |
