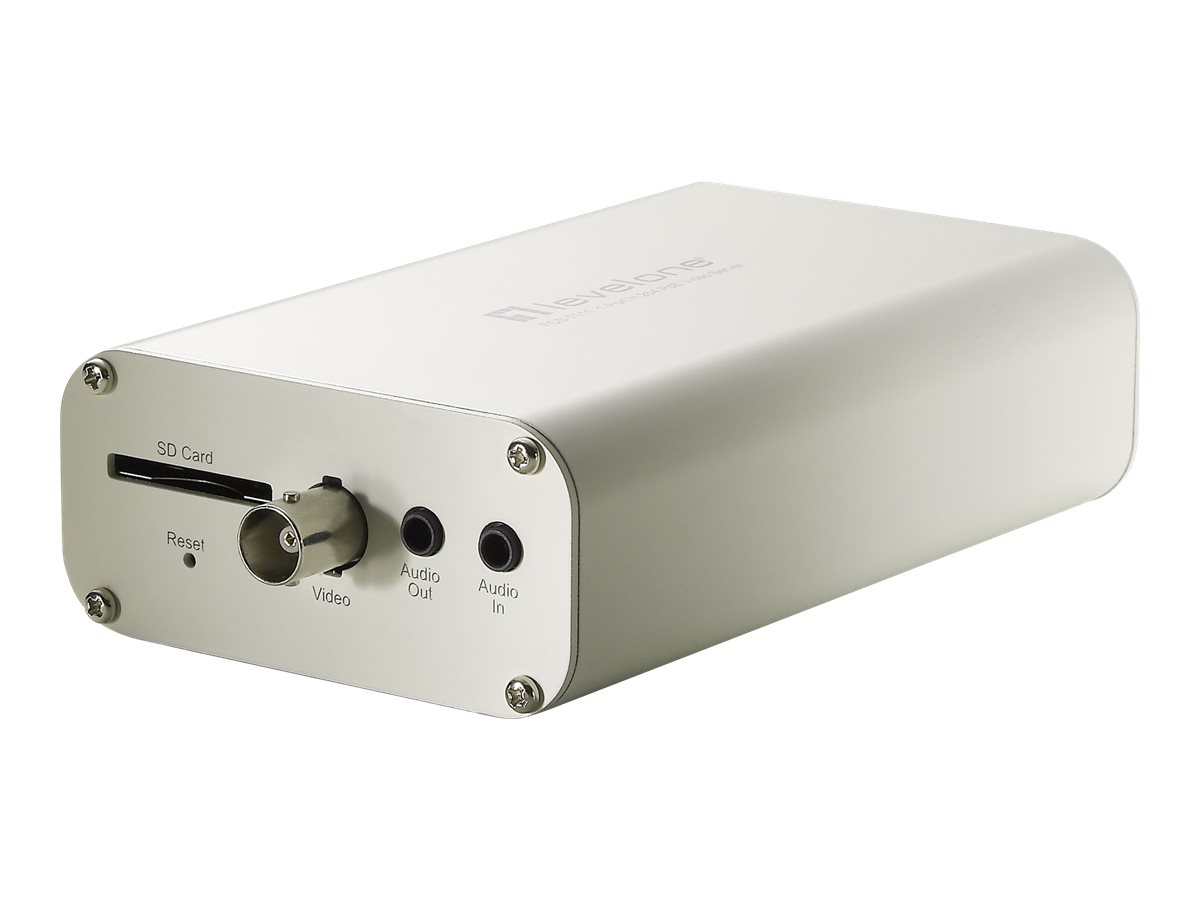

1-CHANNEL H.264 POE VIDEO ENC
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
1-CHANNEL H.264 POE VIDEO ENC
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | FCS-7111 |
| SHI Part #: | 22063292 |
| Category: | Network h/w components and accessories |
| UNSPSC: | 43221700 |
| Manufacturer: | CP Technologies |
| Product Type: | Other |
| General Information | |
|---|---|
| Category | Network h/w components and accessories |
| Description | 1-CHANNEL H.264 POE VIDEO ENC |
| Manufacturer | CP Technologies |
| MSRP | $328.40 |
| UNSPSC | 43221700 |
| Main Specifications | |
| C.P.U. | DEVSVR |
| Dimensions & Weight / Weight | 002.46 |
| Height | 002.56 |
| Length | 010.63 |
| UPC | 0846359001233 |
| Width | 008.07 |
| Connections | |
| Alarm Ports | Alarm input x 1 |
| Audio Input Ports | Mini-phone 3.5 mm x 1 |
| Audio Output Ports | Mini-phone 3.5 mm x 1 |
| Camera Control Interface (PTZ) | RS-485 |
| Network Port | 10/100Base-T (PoE) |
| Video Input Ports | BNC x 1 |
| Dimensions & Weight | |
| Depth | 13 cm |
| Height | 3.385 cm |
| Weight | 242 g |
| Width | 7.835 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Audio Channels | 1 |
| Compression Format | H.264, MPEG-4, MJPEG, AMR, AAC |
| Device Type | Video server |
| Image Resolution | 720x480 (NTSC), 720x576 (PAL) |
| OS Provided | Linux 2.6 |
| Package Content | Software, video server |
| Software Included (Y) | Drivers & Utilities |
| TV System | NTSC/PAL |
| Video Channels | 1 |
| Networking | |
| DDNS Support | Yes |
| Features | 802.1x authentication, power over Ethernet (PoE), IP address filtering, administrator's password, ONVIF support, event notification, reset button |
| Network Interfaces | Ethernet 10Base-T/100Base-TX |
| Supported Protocols | HTTPS, IPv4, IPv6, TCP/IP, HTTP, UPnP, RTSP, RTP, RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QOS, SNMP, CGI |
| Power | |
| Power Consumption | 5 Watt |
| Voltage | 12 - 24 V / PoE |
| System Requirements | |
| Browser | Internet Explorer 6.0 or later / Mozilla Firefox |
| Video Server | |
| Features | SD/SDHC memory card slot, two-way audio support, Pan/Tilt/Zoom support, motion detection, LED indicator |
| Flash Memory | 128 MB |
| Frame Rate | 30 fps |
| RAM | 128 MB |
