Symmetra Px 100Kw Scalable To 250Kw With Right Mounted


MSRP$149,000.00
$109,822.00
SYMMETRA PX 100KW SCALABLE TO250KW WITH RIGHT MOUNTED

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details

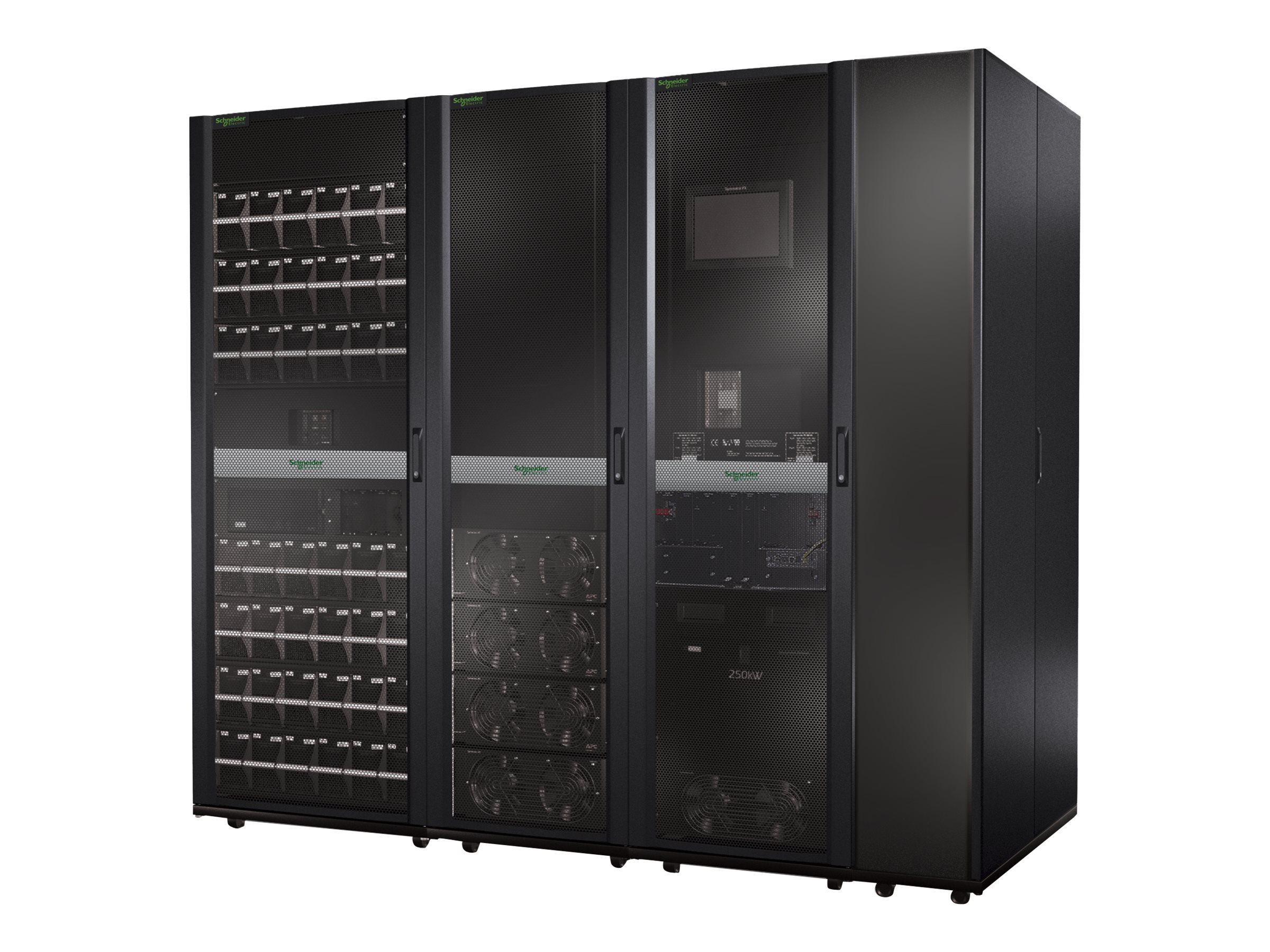

Symmetra Px 100Kw Scalable To 250Kw With Right Mounted
  Additional Details
Price: $109,822.00
MSRP: $149,000.00
Mfr Part #: SY100K250DR-PD
SHI Part #: 18199950
Category: Rechargeable batteries
UNSPSC: 26111701
Manufacturer: APC by Schneider Electric
Product Type: Hardware

Power Adapters

ADAPTOR FOR T1 TYPE CIRCUITBREAKER 3POLE
MSRP $219.00 $162.00
S/A BREAKER ADAPTOR 3P T3
MSRP $248.00 $183.00
ADAPTOR FOR T5 TYPE CIRCUITBREAKER 3 POLE
MSRP $534.00 $394.00

UPS-Battery Backups

APC Symmetra PX 250/500kW Battery Enclosure for up to 8 Battery Modules - battery enclosure
  • Battery enclosure
  • 42U
  • black
  • for P/N: SY100K250D, SY125K250D, SY125K250D-NB, SY125K500D, SY125K500D-NB, SY150K250D
MSRP $20,115.00 $15,137.00
APC Symmetra PX 250/500kW Battery Enclosure with 8 Battery Modules - battery enclosure - lead acid
  • Battery enclosure
  • 48 x battery
  • lead acid
  • 42U
  • black
  • for P/N: SY100K250D, SY125K250D, SY125K250D-NB, SY125K500D, SY125K500D-NB, SY150K250D
MSRP $63,925.00 $47,660.00
APC Symmetra PX 250/500kW Battery Enclosure for up to 8 Battery Modules - battery enclosure
  • Battery enclosure
  • 42U
  • black
  • for Symmetra PX 250kW, 300kW, 400kW, 500kW
MSRP $16,635.00 $12,455.00
General Information
CategoryRechargeable batteries
DescriptionSymmetra Px 100Kw Scalable To 250Kw With Right Mounted
ManufacturerAPC by Schneider Electric
MSRP$149,000.00
UNSPSC26111701
Main Specifications
Dimensions & Weight / Depth107 cm
Dimensions & Weight / Height199 cm
Dimensions & Weight / Weight2633 kg
Dimensions & Weight / Width235 cm
General / SubcategoryUPS
Header / BrandAPC
Packaged Quantity1
Power Device / Form FactorExternal
Power Device / Output Connector Qty2
Power Device / Power Capacity (VA)100000 VA
Power Device / UPS TechnologyOn-line
Power Device / Voltage RequiredAC 480 V
Product TypePower array
Service & Support / Type1-year warranty
Battery
Quantity42
Recharge Time8 hours
Run Time (Up To)7.8 min at full load
TechnologyLead acid
Voltage Provided288 V
Dimensions & Weight
Depth107 cm
Height199 cm
Weight2633 kg
Width235 cm
Dimensions & Weight (Shipping)
Shipping Depth127 cm
Shipping Height215 cm
Shipping Weight2910 kg
Shipping Width299 cm
Environmental Parameters
Humidity Range Operating0 - 95%
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission54 dBA
Expansion / Connectivity
Expansion Slots3 SmartSlot
General
Battery Enclosure TypePlug-in module
Device TypePower array - external
Manufacturer Warranty
Service & SupportLimited warranty - 1 year
Miscellaneous
Compliant StandardsUL, C-Tick, cUL, IEC 62040-3, IEC 62040-1-1, EN 50091-1, FCC Part 15 A
FeaturesAudible alarm, built-in static bypass, LED indicators, touch screen LCD display
Networking
Remote Management ProtocolSNMP, HTTP
Power Device
Frequency Provided50/60 Hz
Frequency Required50/60 Hz
Input Connectors2 x hardwire 4-wire (3PH + G), hardwire 5-wire (3PH + N + G)
Input VoltageAC 480 V
Input Voltage Margin± 5%
Input Voltage RangeAC 408 - 552 V
Input Wiring3-phase
Output VoltageAC 480 V ± 2% - 50/60 Hz
Output WaveformSinewave
Power Capacity100 kW / 100000 VA
Power Output Connectors Details
  • 1 x hardwire 4-wire (3PH + G)
  • 1 x hardwire 5-wire (3PH + N + G)
UPS TechnologyOn-line
