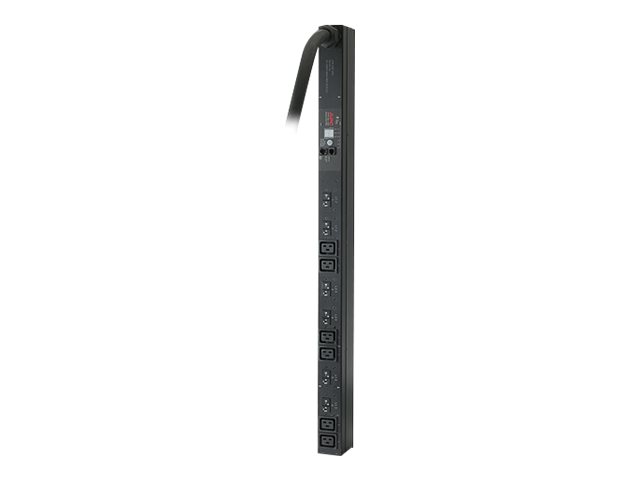

APC Metered Rack PDU
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
APC Metered Rack PDU
- Power distribution unit (rack-mountable)
- AC 208 V
- 14400 VA
- 3-phase
- Ethernet 10/100, RS-232
- input: Hubbell CS8365C
- output connectors: 6 (IEC 60320 C19)
- 0U
- black
- for P/N: AR3100
| Additional Details | |
|---|---|
| Mfr Part #: | AP7867A |
| SHI Part #: | 17025523 |
| Category: | Power distribution units PDUs |
| UNSPSC: | 39121017 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power distribution units PDUs |
| Description | APC Metered Rack PDU - Power distribution unit (rack-mountable) - AC 208 V - 14400 VA - 3-phase - Ethernet 10/100, RS-232 - input: Hubbell CS8365C - output connectors: 6 (IEC 60320 C19) - 0U - black - for P/N: AR3100 |
| Manufacturer | APC by Schneider Electric |
| UNSPSC | 39121017 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8.9 cm |
| Dimensions & Weight / Height | 92.7 cm |
| Dimensions & Weight / Weight | 8.2 kg |
| Dimensions & Weight / Width | 5.6 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 6 |
| Power Device / Power Capacity (VA) | 14400 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Compatibility Information | |
| Designed For | P/N: AR3100 |
| Dimensions & Weight | |
| Depth | 8.9 cm |
| Height | 92.7 cm |
| Weight | 8.2 kg |
| Width | 5.6 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 15.2 cm |
| Shipping Height | 102 cm |
| Shipping Weight | 10 kg |
| Shipping Width | 12.7 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -5 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | FCC Class A certified, UL, VCCI, cUL, ICES-003, FCC Part 15, UL 60950-1, CSA C22.2 No. 60950-1-03 |
| Features | Current meter, LED indicators, overload protection |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232 |
| Remote Management Protocol | SNMP, Telnet, HTTP, HTTPS |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 47 - 63 Hz |
| Input Connectors | 1 x Hubbell CS8365C |
| Input Voltage | AC 208 V |
| Input Wiring | 3-phase |
| Max Electric Current | 40 A |
| Output Voltage | AC 208 V |
| Power Capacity | 14400 VA |
| Power Output Connectors Details | 6 x power IEC 60320 C19 |
