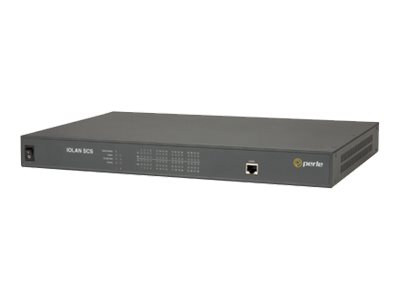

Perle IOLAN SCS32 DC - console server

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Console server
  • 32 ports
  • RS-232
  • DC power
  • 1U
  • Console server
  • 32 ports
  • RS-232
  • DC power
  • 1U
  Additional Details
Price: $3,764.00
MSRP: $4,288.00
Mfr Part #: 04030270
SHI Part #: 16215482
Category: Multistation access units (MAUs)
UNSPSC: 43222630
Manufacturer: Perle Systems
Product Type: Hardware
General Information
CategoryMultistation access units (MAUs)
DescriptionPerle IOLAN SCS32 DC - Console server - 32 ports - RS-232 - DC power - 1U
ManufacturerPerle Systems
Main Specifications
Dimensions & Weight / Depth26.4 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight3.2 kg
Dimensions & Weight / Width43.4 cm
Header / BrandPerle
Networking / Connectivity TechnologyWired
Networking / Data Link ProtocolRS-232
Networking / Data Transfer Rate230 Kbps
Networking / Form FactorExternal
Networking / Ports Qty32
Networking / TypeConsole server
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Environmental Parameters
Max Operating Temperature55 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x PCI
  • 32 x RS-232 - RJ-45
  • 2 x 1000Base-T - RJ-45
Depth26.4 cm
Device TypeConsole server
Height4.4 cm
Height (Rack Units)1U
Weight3.2 kg
Width43.4 cm
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Compliant StandardsFCC Class A certified, EN55024, EN55022 Class A, UL 60950, FCC Part 15, CSA C22.2, RoHS, WEEE
Rack Mounting KitIncluded
Authentication MethodKerberos, Secure Shell (SSH), PAP, CHAP, X.509 certificates, Radio Service Set ID (SSID), TACACS+, LDAP
Communication ModeFull-duplex
Connectivity TechnologyWired
Data Link ProtocolRS-232
Data Transfer Rate230 Kbps
Encryption AlgorithmDES, Triple DES, Blowfish, RSA, RC4, RC2, MD5, CAST, ARCFOUR, AES, 128-bit WEP, SSL, SHA-1, ARCTWO, TLS 1.0, SSL 3.0, SSL 2.0, 256-bit WPA
FeaturesDHCP support, BOOTP support, RARP support, ARP support, IPv6 support, IP address filtering
Form FactorExternal
Network / Transport ProtocolTCP/IP, UDP/IP, ICMP/IP
Ports Qty32
Remote Management ProtocolSNMP, Telnet, SNMP 3, HTTP, HTTPS
Routing ProtocolRIP-1, RIP-2
Power DeviceInternal power supply
Voltage RequiredDC -36 -72 V
Processor / Memory / Storage
Processors InstalledMPC8349E 400 MHz
